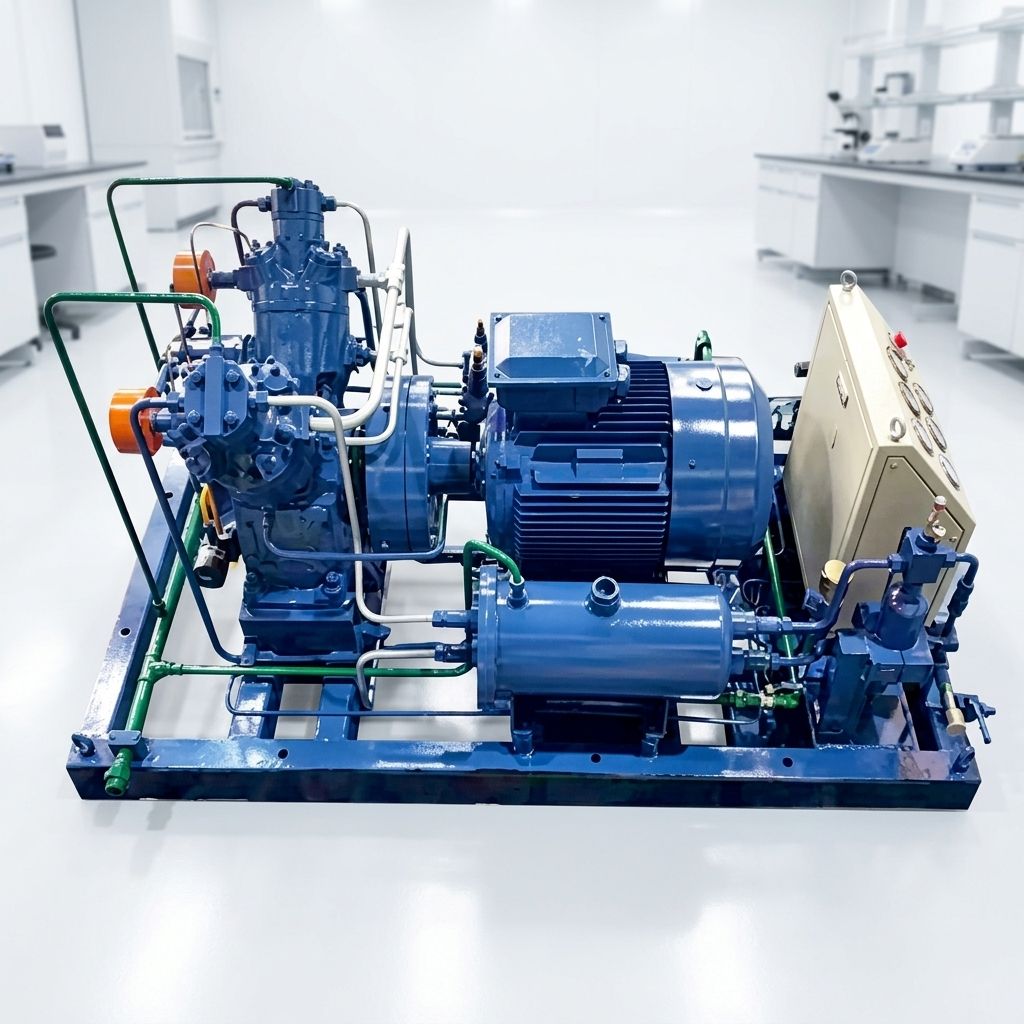

COOLED HIGH-PRESSURE AIR COMPRESSOR
1.Installation method: the entire unit is installed as a single piece, with auxiliary equipment placed on the skid block for easy and neat installation.
2.Driving method: electric motor drive.
3.Overall Layout: The cylinders are arranged in a V-shape in two rows, using a differential piston technology, water-cooled, with a compact structure and small footprint.
4.Control system: The control system has a perfect automatic protection and control function. The starting mode can be Y-△ starting, auto-buck starting, etc., and automatic blowdown.
5.Main parameters: exhaust pressure 3.5-35Mpa, exhaust volume 0.8-1.2m³/min.
6.Compression medium: suitable for air, nitrogen.
7.Application scenario: Widely used in aerospace and military industry, metallurgy and steel, scientific research special inspection and other fields.
2V SERIES WATER-COOLED HIGH-PRESSURE AIR COMPRESSOR MODEL
Model | m'/min Gas Displacement
| Mpa Discharge Pressure | Grade | engine speed r/min Main | Motor Power KW
| Overall Dimensions
| Weight |
2V-0.6/25 | 0.6 | 2.5 | 3Grade
| 740 | 11 | 1600×1100×1200 | 0.75 |
2V-0.6/60 | 0.6 | 6 | 3Grade | 740 | 11 | 1600×1100×1200 | 0.75 |
2V-0.6/80 | 0.6 | 8 | 3Grade | 740 | 11 | 1600×1100×1200 | 0.75 |
2V-1.2/25 | 1.2 | 2.5 | 3Grade | 970 | 18.5 | 1600×1100×1200 | 0.8 |
2V-1.2/45 | 1.2 | 4.5 | 3Grade | 970 | 18.5 | 1600×1100×1200 | 0.8 |
2V-1.2/80 | 1.2 | 8 | 3Grade | 970 | 18.5 | 1600×1100×1200 | 0.8 |
2v-0.5/100 | 0.5 | 10 | 3Grade | 970 | 18.5 | 1600×1100×1200 | 0.8 |
2v-0.5/150 | 0.5 | 15 | 4Grade | 970 | 18.5 | 1600×1100×1200 | 0.8 |
2V-1.15/100 | 1 | 10 | 4Grade | 970 | 18.5 | 1600×1100×1200 | 0.8 |
2V-1.15/150 | 1 | 15 | 4Grade | 970 | 18.5 | 1600×1100×1200 | 0.8 |
2V-1/250 | 1 | 25 | 4Grade | 970 | 22 | 1600×1100×1200 | 1 |
2V-1.15/220 | 1 | 22 | 4Grade | 970 | 22 | 1600×1100×1200 | 1 |
2V-0.5/250 | 0.5 | 25 | 4Grade | 740 | 22 | 1600×1100×1200 | 1 |
2V-0.5/350 | 0.5 | 35 | 4Grade | 740 | 22 | 1600×1100×1200 | 1 |
2V-1/350 | 1 | 35 | 4Grade | 970 | 30 | 1600×1100×1200 | 1 |
