Applications
Suitable for pipe elbow-pipe, pipe-pipe, pipe hub-pipe, and pipe tee butt joints.
Suitable for pipe flange-elbow and flange fillet joints.
Applicable to the welding of various materials such as carbon steel, low alloy steel, stainless steel, and copper.
Features

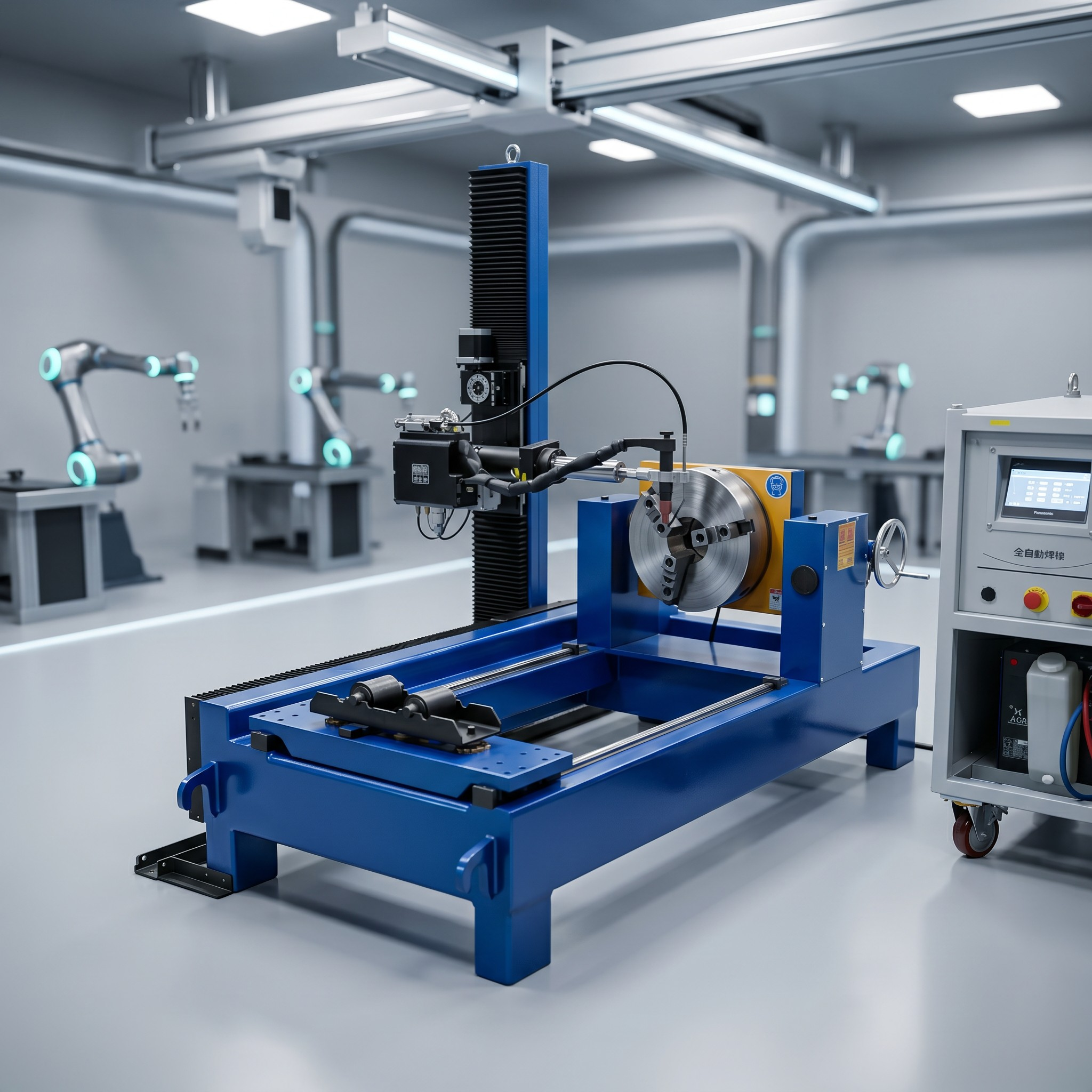

Equipped with TIG (Tungsten Inert Gas) welding equipment.
Integrated design of the whole machine, featuring a compact structure, maturity, and reliability; the three-jaw self-centering chuck enables accurate rotation positioning.
The control system adopts a large-screen touchscreen human-machine interface, allowing for easy programming.
The combination of a welding manipulator, full-angle positioner, and torch angle adjustment mechanism ensures multi-position and multi-angle conversion of the welding torch.
Standard configuration includes an Arc Voltage Control (AVC) system and an Oscillation (OSC) system.
CNC automatic wire feeder with automatic wire retraction and pulsed wire feeding functions, ensuring high wire feeding precision.
Stores up to 30 sets of welding processes, which can be directly called by number according to the workpiece specifications.
One-key operation to automatically complete the entire welding process; real-time intervention on welding parameters is also available if needed.
Forced circulation water cooling system guarantees long-term reliable operation of the whole machine.
Technical Parameters Table
No. | Specifications & Model | ZDH1440-T | ZDH1441-T | ZDH3660-T |
1 | Input Power Supply | Welding power supply: 30KW/380V/50Hz; Control system: 1.0KW/220V/50Hz | ||
2 | Welding Power Supply | Panasonic YC-400TX TIG welding power supply (optional Panasonic hot wire TIG welding power supply) | ||
3 | Positioner | 0～90° manual positioning; Rotation radius: 300mm | ||
4 | Arc Length Tracker | Tracking range: 0～40.0mm; Tracking speed: 0~6mm/s; Arc length tracking accuracy: 0.2mm | ||
5 | Welding Torch | LD400 water-cooled TIG welding torch; Positioning angle: 0～90° | ||
6 | Torch Oscillator | Oscillation amplitude: 0～20mm; Oscillation speed: 0～20mm/s; Groove side dwell time: 0～5s | ||
7 | Chuck Front Stroke | 400mm | 1000mm | 300mm |
8 | Manipulator Stroke (mm) (X×Y×Z) | 800×700×30 | 1500×700×30 | 800×900×30 |
9 | Total Machine Weight | 950KG | 1100KG | 1150KG |
The overall dimensions and weight are for reference only. The actual product shall prevail.
