LS-BRH6-3, LS-BRH10-4, LS-BRH16-6, LS-BRH24-8
LUSHUN
LS-BRH6-3, LS-BRH10-4, LS-BRH16-6, LS-BRH24-8

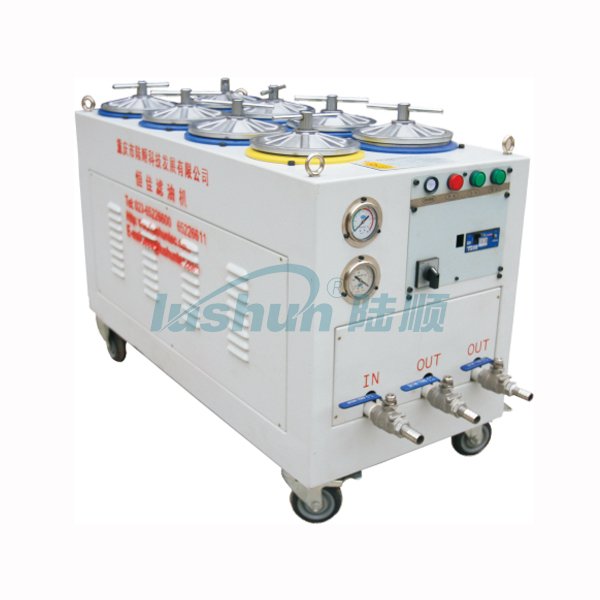

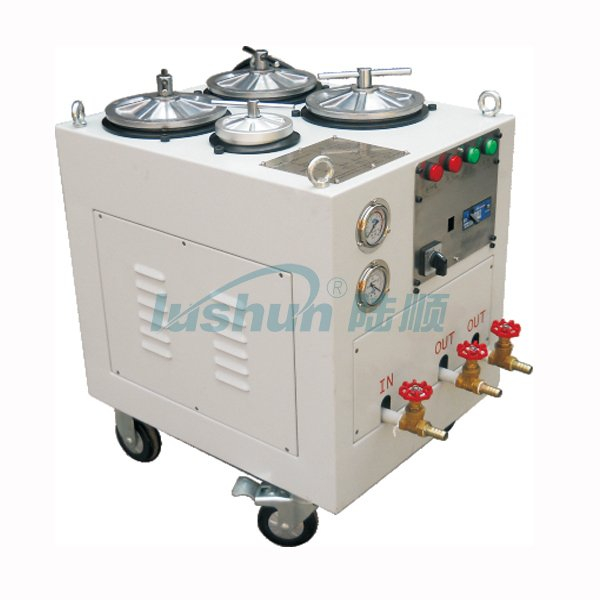

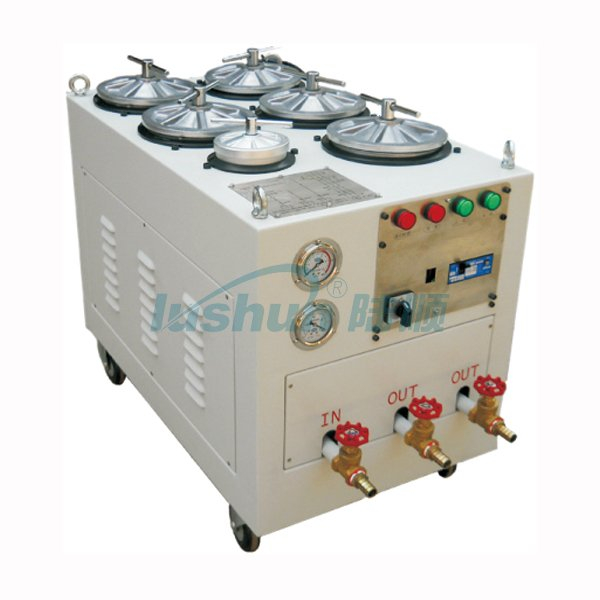

BRH Series High Precision Oil Purifier
Application
●Used for purifying lubricating oil applied in hydraulic machineries to remove impurities and water contents to prevent oil from oxidization and acidity increase, thus to guarantee the lubricating performance of oil, prolong service life of equipment and ensure equipment’s continuous running without faults.
●Used for purifying, replacing, and replenishing circuit-breaker lubrication oil applied by hydraulic mechanism of SF6 circuit breaker protector in various power stations.
●For purifying water glycol.
Advantages
●With isolated build-in oil pump, able to purify oil continuously, and with filtration precision NAS 5-7.
●Able to absorb all water content which caused by temperature difference.
●Equipped with stopping devices of electric leakage, overload, and filter saturation to guard the motor.
●With conversion devices for oil pumping and purification to realize convenient biservice functions of oil pumping and purification.
●With positive and negative switch to avoid wiring interference of three phase power supply.
●With indicators for filter cartridge replacement.
●Easy to use and maintain.
Technical Specifications
Model | LS-BRH6-3 | LS-BRH10-4 | LS-BRH16-6 | LS-BRH24-8 | ||
Flow Rate（L/min） | 6 | 10 | 16 | 24 | ||
Working Pressure（kgf/ cm2） | 1.5-3.0 | 1.5-3.0 | 1.5-3.0 | 1.5-3.0 | ||
Applicable Temperature Range | 0～80 ℃ | |||||
Suitable Viscosity Range | 9～180cSt | |||||
Inlet/Outlet Diameter（mm） | 20 | 20 | 25 | 25 | ||
Amount of Filter Cartridges | 3 | 4 | 6 | 8 | ||
Amount (kg) | 80 | 98 | 120 | 125 | ||
Motor | Three phase 1/2HP | Three phase1/2HP | Three phase 1/2HP | Three phase 1HP | ||
Suitable Oil Tank Capacity (L) | 2000 | 3000 | 5000 | 6000 | ||
Overall Dimension（L×W×H）mm | 720×510×640 | 940×510×640 | 1210×510×640 | 1410×510×640 | ||
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
BRH Series High Precision Oil Purifier
Application
●Used for purifying lubricating oil applied in hydraulic machineries to remove impurities and water contents to prevent oil from oxidization and acidity increase, thus to guarantee the lubricating performance of oil, prolong service life of equipment and ensure equipment’s continuous running without faults.
●Used for purifying, replacing, and replenishing circuit-breaker lubrication oil applied by hydraulic mechanism of SF6 circuit breaker protector in various power stations.
●For purifying water glycol.
Advantages
●With isolated build-in oil pump, able to purify oil continuously, and with filtration precision NAS 5-7.
●Able to absorb all water content which caused by temperature difference.
●Equipped with stopping devices of electric leakage, overload, and filter saturation to guard the motor.
●With conversion devices for oil pumping and purification to realize convenient biservice functions of oil pumping and purification.
●With positive and negative switch to avoid wiring interference of three phase power supply.
●With indicators for filter cartridge replacement.
●Easy to use and maintain.
Technical Specifications
Model | LS-BRH6-3 | LS-BRH10-4 | LS-BRH16-6 | LS-BRH24-8 | ||
Flow Rate（L/min） | 6 | 10 | 16 | 24 | ||
Working Pressure（kgf/ cm2） | 1.5-3.0 | 1.5-3.0 | 1.5-3.0 | 1.5-3.0 | ||
Applicable Temperature Range | 0～80 ℃ | |||||
Suitable Viscosity Range | 9～180cSt | |||||
Inlet/Outlet Diameter（mm） | 20 | 20 | 25 | 25 | ||
Amount of Filter Cartridges | 3 | 4 | 6 | 8 | ||
Amount (kg) | 80 | 98 | 120 | 125 | ||
Motor | Three phase 1/2HP | Three phase1/2HP | Three phase 1/2HP | Three phase 1HP | ||
Suitable Oil Tank Capacity (L) | 2000 | 3000 | 5000 | 6000 | ||
Overall Dimension（L×W×H）mm | 720×510×640 | 940×510×640 | 1210×510×640 | 1410×510×640 | ||
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
