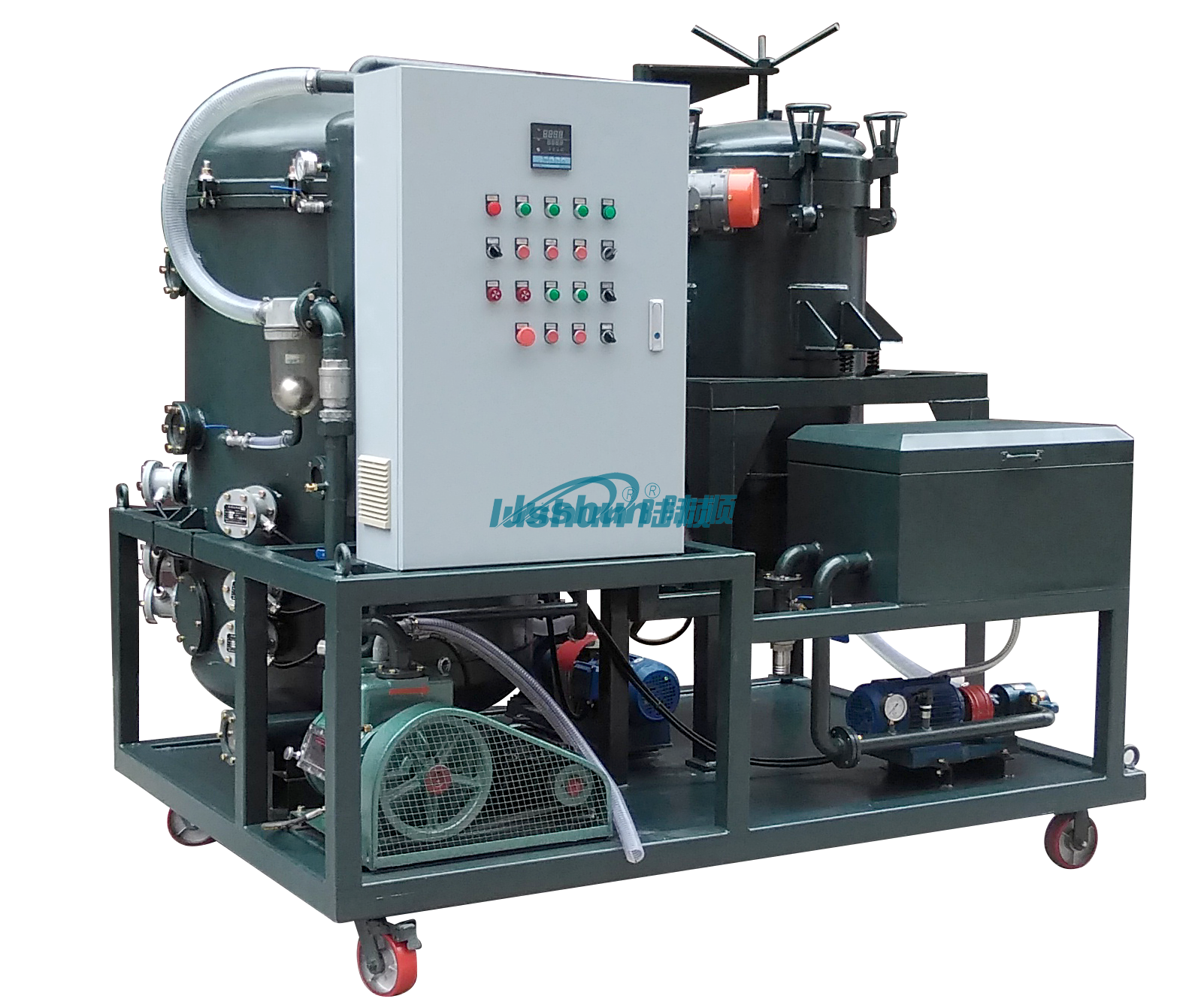

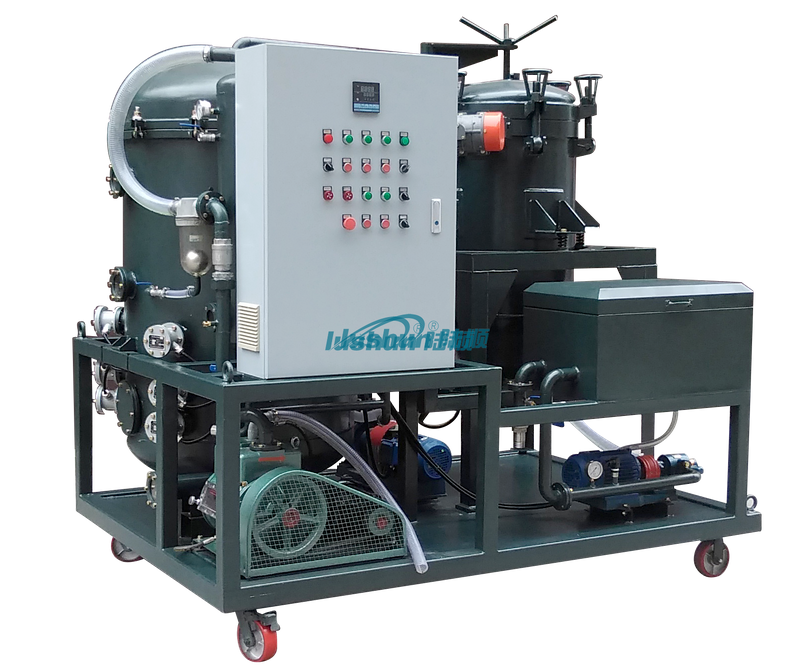

CHY Series Quenching Oil Purifier
Application:
Applicable to chemical industry, cement, metallurgy, mining, shipbuilding, machinery, military, rubber and plastic, instrumentation, transportation, paper and other industries. For engine oil, gear oil, hydraulic oil, gutter oil, track oil, compressor oil, vacuum pump oil, axle oil, pneumatic tool oil, rail oil, bearing oil, cylinder oil, drawing oil, heat treatment oil, conduction oil and other oil to remove water, impurity, decolorization, etc.
Advantages:
● The equipment is composed of vacuum dehydration system, decolorization system, filter press filtration system, etc.
● Vacuum dehydration system, can quickly and effectively remove free water, dissolved water, gas, etc.
● Decolorization system can restore the color of black oil transparent (non-standard oil, mixed oil, high-temperature oil excepted).
● Filter press filter system to effectively remove impurities in the oil, to meet the use of oil standards, without high cost filter supplies.
● Electric heating, constant temperature control.
● Equipped with cooling system, prolong the service life of the vacuum pump.
● Convenient operation and maintenance of equipment.
Technical Specifications
Model Number | CHY-100 | Flow | 100L/min |
Water Content | ≤100PPm | Power Supply | 380/50Hz |
Mechanical Impurity | None(GB/T511) | Total Power | 80 |
Color | Heating Power | 72 | |
Working Vacuum | -0.06~-0.098Mpa | Equipment Weight | 1200kg |
Noise | ≤80dB(A) | Inlet and Outlet Pipe Diameter | DN40 |
Working Pressure | ≤0.8Mpa | Overall Dimension | 2300×1600×2300 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
