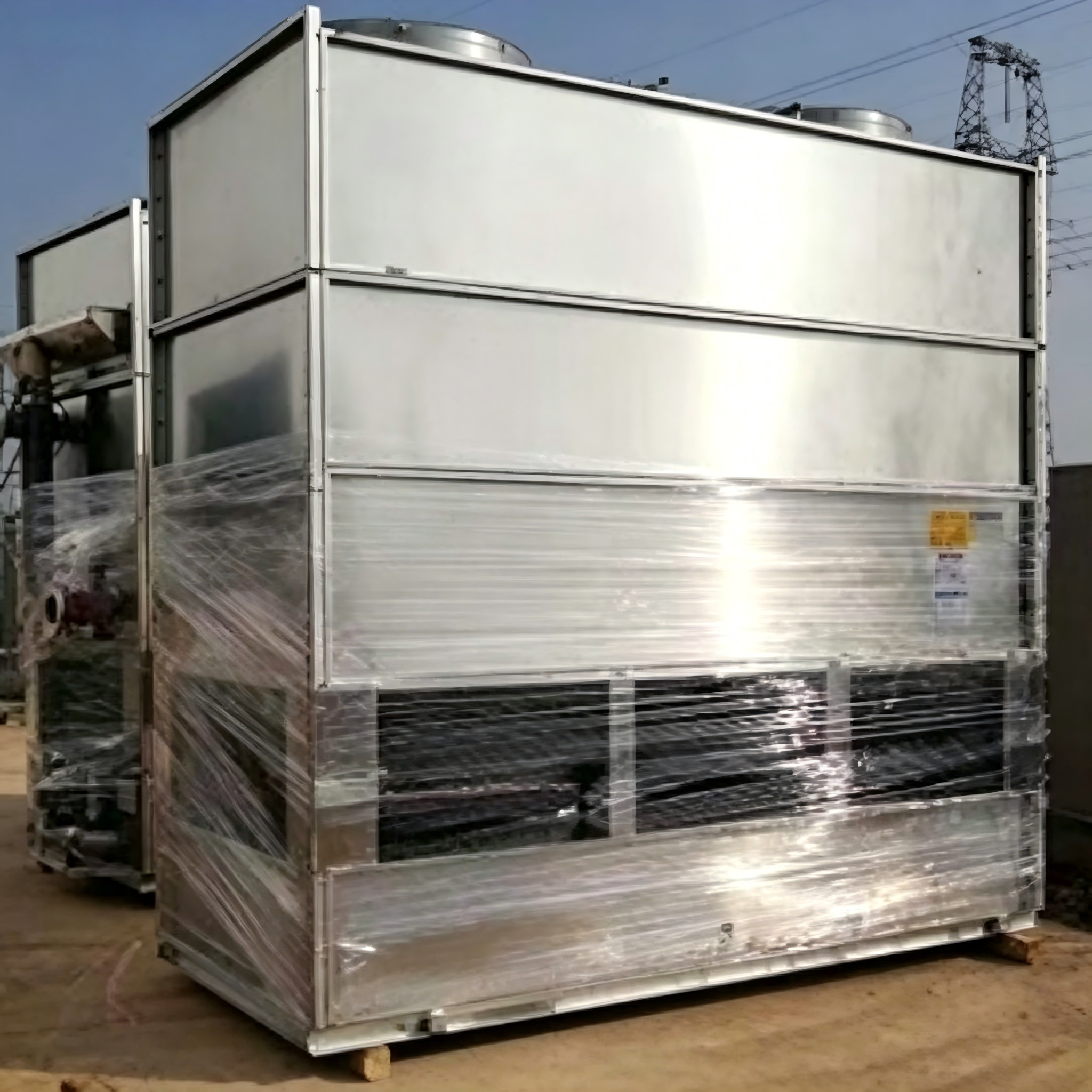

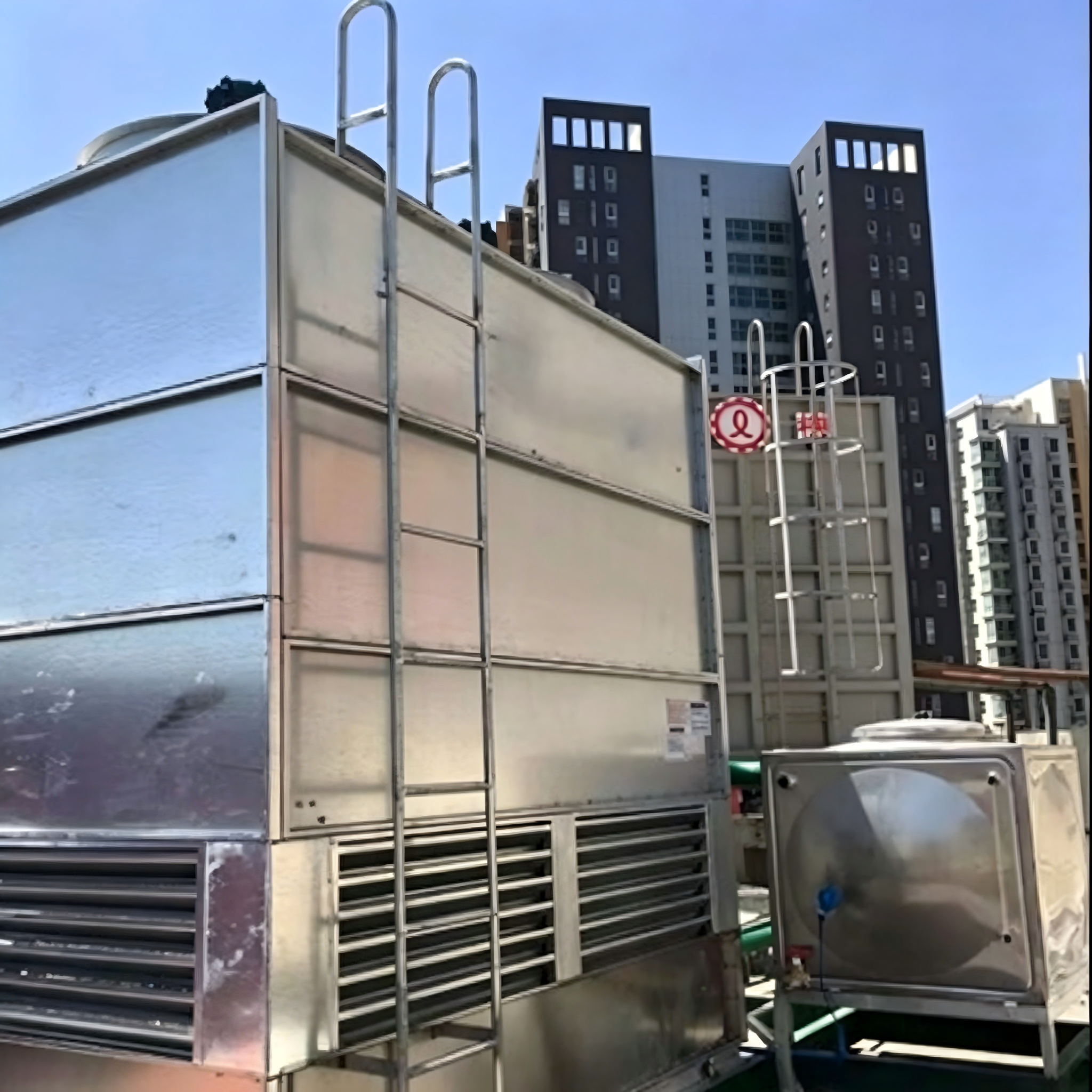

FEATURES OF CLOSED COOLING TOWER
RNNS series intelligent double cycle cooling tower adopts composite flow cooling method, cooling tower can be used stainless steel, copper tube can also be used, the shell is made of 304 stainless steel plate. Corrosion resistant galvanized plate can also be used. Highly efficient dehydrator with very low water drift rate. The cooling medium is closed in circulation, and no impurities enter to ensure the purity of the medium. The cooling medium used in the internal circulation is soft water or antifreeze, which does not scale and block the pipeline. Small footprint, can be moved according to need, placed, low maintenance costs.
Advantages of closed intelligent double cycle cooling system solution
Closed internal cycle, never scaling: Because the internal cycle uses soft water (antifreeze), it will not scale in use, greatly reducing the maintenance cost of the filling station, the intake temperature at all levels can be controlled in a low range, the compressor has been in good working condition, which can greatly improve the service life of the compressor wearing parts and reduce the energy consumption of the compressor.
Intelligent control, energy saving and consumption reduction: According to the different use environment and use time, the series of water tower can adopt frequency conversion control or multi-level control to achieve the best match between the equipment and the environment and reduce energy consumption.
Easy to maintain, long life: the main components of the system are made of high quality materials, the main supporting are made of famous brand products, and the main structure is strengthened from the design.
Open and closed complementary, wide applicability: the series of water tower has the advantages of open square countercurrent water tower, high heat exchange efficiency, low water drift coefficient, low noise, and has the advantages of full air-cooled closed cooling tower intelligent control, closed internal circulation system, and a wide range of application.
CLOSED COOLING TOWER PRODUCT MODEL
Model | Overall Dimensions | Approximate Weight(Kg) | Fan Power (Kw) | Pump Power (KW) | Inlet and Outlet Pipe Diameter (mm) |
(L) | ( W ) | (H) | Heaviest Part | Transport | Operation |
RNNS-25 | 2010 | 1200 | 2000 | 712 | 890 | 1420 | 1.5 | 0.75 | 50 |
RNNS-30 | 2500 | 1200 | 2000 | 805 | 995 | 1611 | 2.2 | 1.1 | 65 |
RNNS-40 | 2500 | 1200 | 2000 | 928 | 1160 | 1879 | 2.2 | 1.1 | 80 |
RNNS-60 | 2500 | 1510 | 2600 | 1160 | 1450 | 2320 | 2.2*2 | 1.5 | 100 |
RNNS-80 | 2500 | 1510 | 2600 | 1560 | 1950 | 3120 | 2.2*2 | 2.2 | 100 |
RNNS-100 | 3000 | 1510 | 3000 | 2162 | 2700 | 4370 | 3*2 | 3 | 125 |
RNNS-125 | 3000 | 1510 | 3000 | 2568 | 3270 | 5136 | 3*2 | 3 | 150 |
RNNS-200 | 3910 | 2210 | 3600 | 3688 | 4610 | 7422 | 4*3 | 4.4 | 80*8 |
RNNS-250 | 4300 | 2520 | 3600 | 4712 | 5890 | 9420 | 4*4 | 6 | 100*8 |
