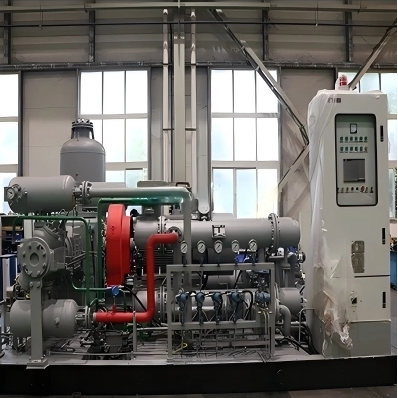

TYPE D PRODUCT FEATURES
1.Installation method: the entire unit is installed as a single piece, with auxiliary equipment placed on the skid block for easy and neat installation.
2.Driving mode: motor, diesel engine, natural gas engine and other driving modes.
3.Cooling method: available open, closed circulating water cooling, can also be used axial flow phoenix machine forced mixed cooling.
4.Overall Layout:The two columns of cylinders are arranged horizontally and symmetrically, the second order inertia force can be completely balanced, the tangential force is uniform, the center of gravity is low, and the vibration is small.
5.Control system: PLC control system has a perfect automatic protection function, can achieve all levels of exhaust pressure, exhaust temperature, cooling water pressure, lubricating oil pressure, vibration and other comprehensive monitoring; Can use soft start, frequency conversion start, automatic blowdown.
6.Main parameters: exhaust pressure 5-25Mpa, exhaust volume 1.5-10m³/min.
7.Compressed media: suitable for all kinds of gas media.
8.Application scenarios: widely used in pipeline pressure test, aerospace, metallurgy and steel, scientific research special inspection, membrane nitrogen production, underground gas injection, offshore platform, gas supply station and other fields.

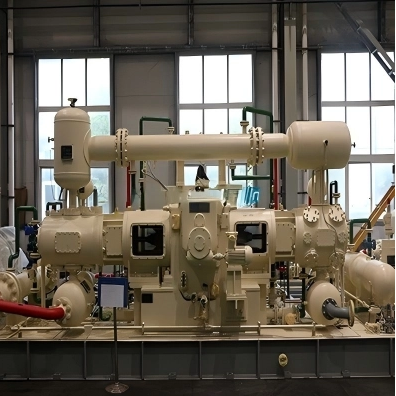

MODEL OF D SERIES WATER COOLED MEDIUM AND HIGH PRESSURE AR COMPRESSOR
Model | Gas Displacement m³/min
| Mpa Discharge Pressure m³/min
| Grade | Main engine speed r/min
| Motor Power KW
| Overall Dimensions | Weight |
D-10/150 | 10 | 15 | 4Grade | 980 | 185 | 5100×2200×2300 | 7.5 |
D-10/200 | 10 | 20 | 4Grade | 980 | 185 | 5100×2200×2300 | 7.5 |
D-10/250 | 10 | 25 | 4Grade | 980 | 185 | 5100×2200×2300 | 7.5 |
D-8/150 | 8 | 15 | 4Grade | 980 | 160 | 5000×2100×2100 | 6.9 |
D-8/200 | 8 | 20 | 4Grade | 980 | 160 | 5000×2100×2100 | 6.9 |
D-8/250 | 8 | 25 | 4Grade | 980 | 160 | 5000×2100×2100 | 6.9 |
D-6/150 | 6 | 15 | 4Grade | 980 | 132 | 4200×2000×1800 | 6 |
D-6/200 | 6 | 20 | 4Grade | 980 | 132 | 4200×2000×1800 | 6 |
D-6/250 | 6 | 25 | 4Grade | 980 | 132 | 4200×2000×1800 | 6 |
D-4/150 | 4 | 15 | 4Grade | 980 | 75 | 2800×1550×1400 | 3 |
D-4/200 | 4 | 20 | 4Grade | 980 | 75 | 2800×1550×1400 | 3 |
D-4/250 | 4 | 25 | 4Grade | 980 | 75 | 2800×1550×1400 | 3 |
D-1.5/150 | 1.5 | 15 | 4Grade | 980 | 30 | 1850×1200×1300 | 1.3 |
D-1.5/200 | 1.5 | 20 | 4Grade | 980 | 30 | 1850×1200×1300 | 1.3 |
D-1.5/250 | 1.5 | 25 | 4Grade | 980 | 30 | 1850×1200×1300 | 1.3 |
