LS-DLS-40/50, LS-DLS-80, LS-DLS-100, LS-DLS-125, LS-DLS-150, LS-DLS-200, LS-DLS-250, LS-DLS-300, LS-DLS-350, LS-DLS-400, LS-DLS-500
LUSHUN
LS-DLS-40/50, LS-DLS-80, LS-DLS-100, LS-DLS-125, LS-DLS-150, LS-DLS-200, LS-DLS-250, LS-DLS-300, LS-DLS-350, LS-DLS-400, LS-DLS-500

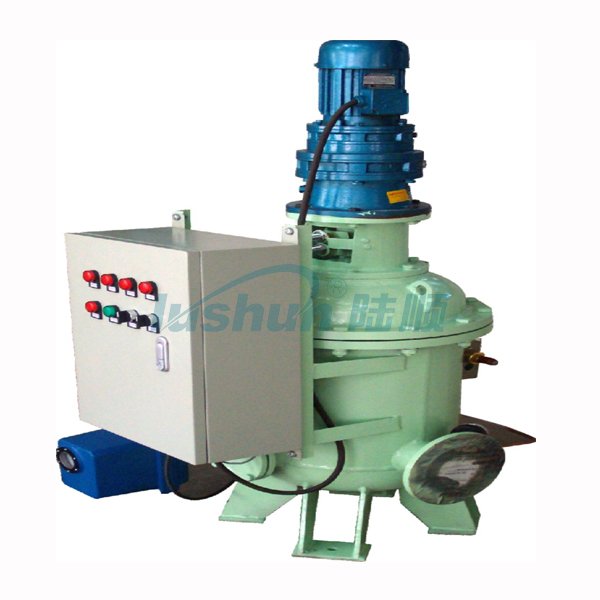

DLS Series Full-automatic Water Purifier
Application
DLS series are used for filtering cooling water in power station, circulation water in industries, water for fire-fighting, water from daily life, washing liquid and other similar liquid. It can filter and clean automatically meanwhile not affecting water supplying during the operation.
There are alarm for over-load pressure difference, over-load power of valves and problems of reducer. The electric control are base on PLC system, which can make this machine work without operator. This machine is suitable for water which contains much mud & sand and a little suspended matter. Type of water inlet & outlet: upper inlet with lower outlet / lower inlet with upper outlet.
Technical Specification
●Nominal Pressure: 0.6, 1.0, 1.6, 2.5Mpa
●Pressure Loss: 0.01～0.03Mpa
●Automatic Counter-flush Time: 6s (each filter element) or based on operating request
●Filtration Precision: 0.1～8mm or based on operating request
●Power Supply: AC 380V/50Hz, 3 phases, 4 wires (can be customized)
●Range of Time Setting: 0-24 hour or based on operating request.
●Working Pressure: ≤0.6Mpa, ≤1.0Mpa, ≤1.6Mpa, ≤2.5Mpa
●Setting Pressure Difference: 0.02～0.25Mpa
Model | Flow Rate (m³/h) | Inlet Diameter (mm) | Drainage Diameter (mm) | Reducer | |
Power (KW) | Model | ||||
LS-DLS-40/50 | 14/22 | 40/50 | 25 | 0.37 | XLED-32 |
LS-DLS-80 | 55 | 80 | 40 | 0.37 | XLED-32 |
LS-DLS-100 | 85 | 100 | 50 | 0.37 | XLED-32 |
LS-DLS-125 | 115 | 125 | 65 | 0.37 | XLED-32 |
LS-DLS-150 | 192 | 150 | 80 | 0.37 | XLED-32 |
LS-DLS-200 | 340 | 200 | 80 | 0.55 | XLED-42 |
LS-DLS-250 | 530 | 250 | 100 | 0.55 | XLED-42 |
LS-DLS-300 | 760 | 300 | 100 | 0.75 | XLED-53 |
LS-DLS-350 | 1040 | 350 | 125 | 0.75 | XLED-53 |
LS-DLS-400 | 1360 | 400 | 125 | 0.75 | XLED-53 |
LS-DLS-500 | 2120 | 500 | 150 | 1.10 | XLED-63 |
■Above mentioned weight and size are for reference only, the specific data shall be as per the standard of real goods.
