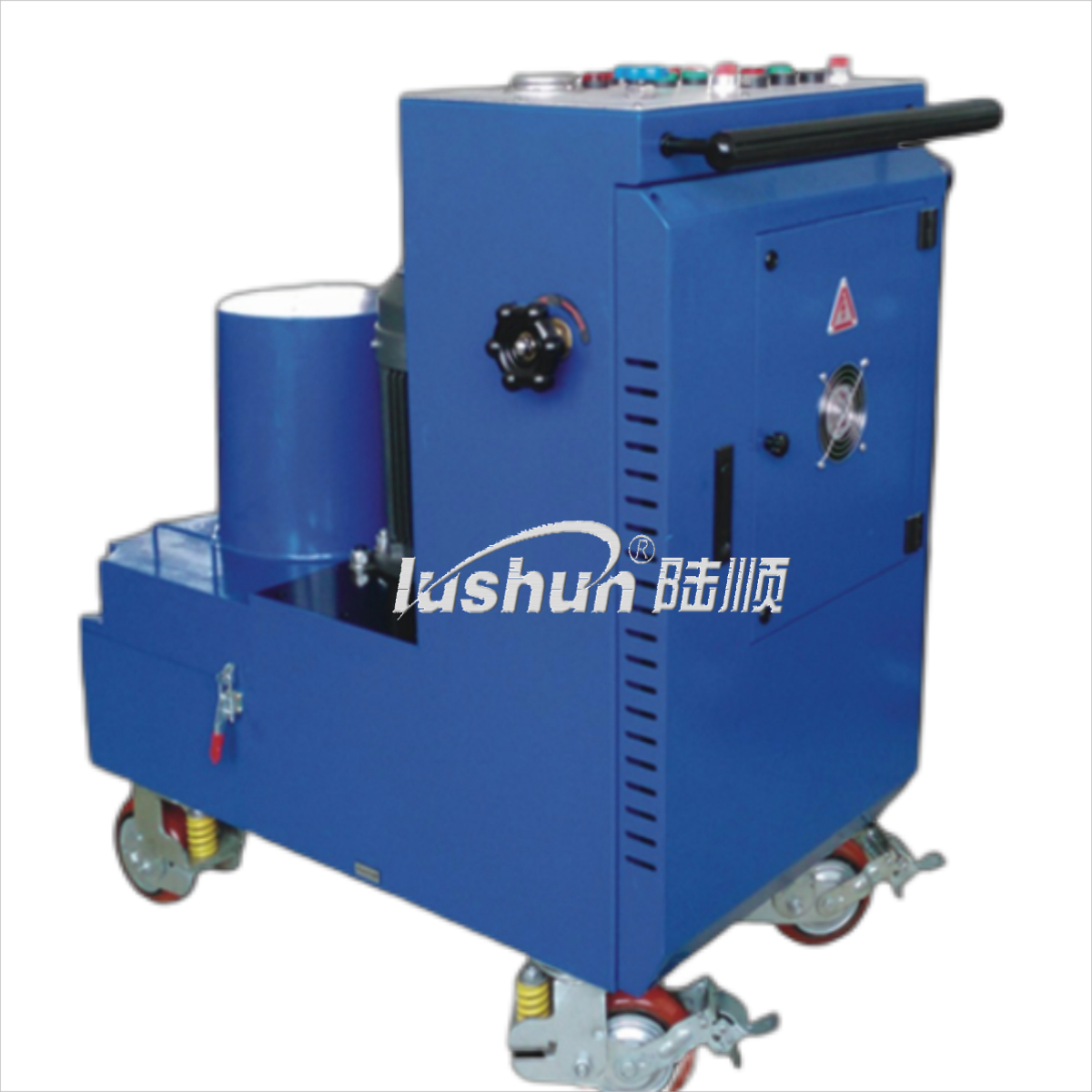

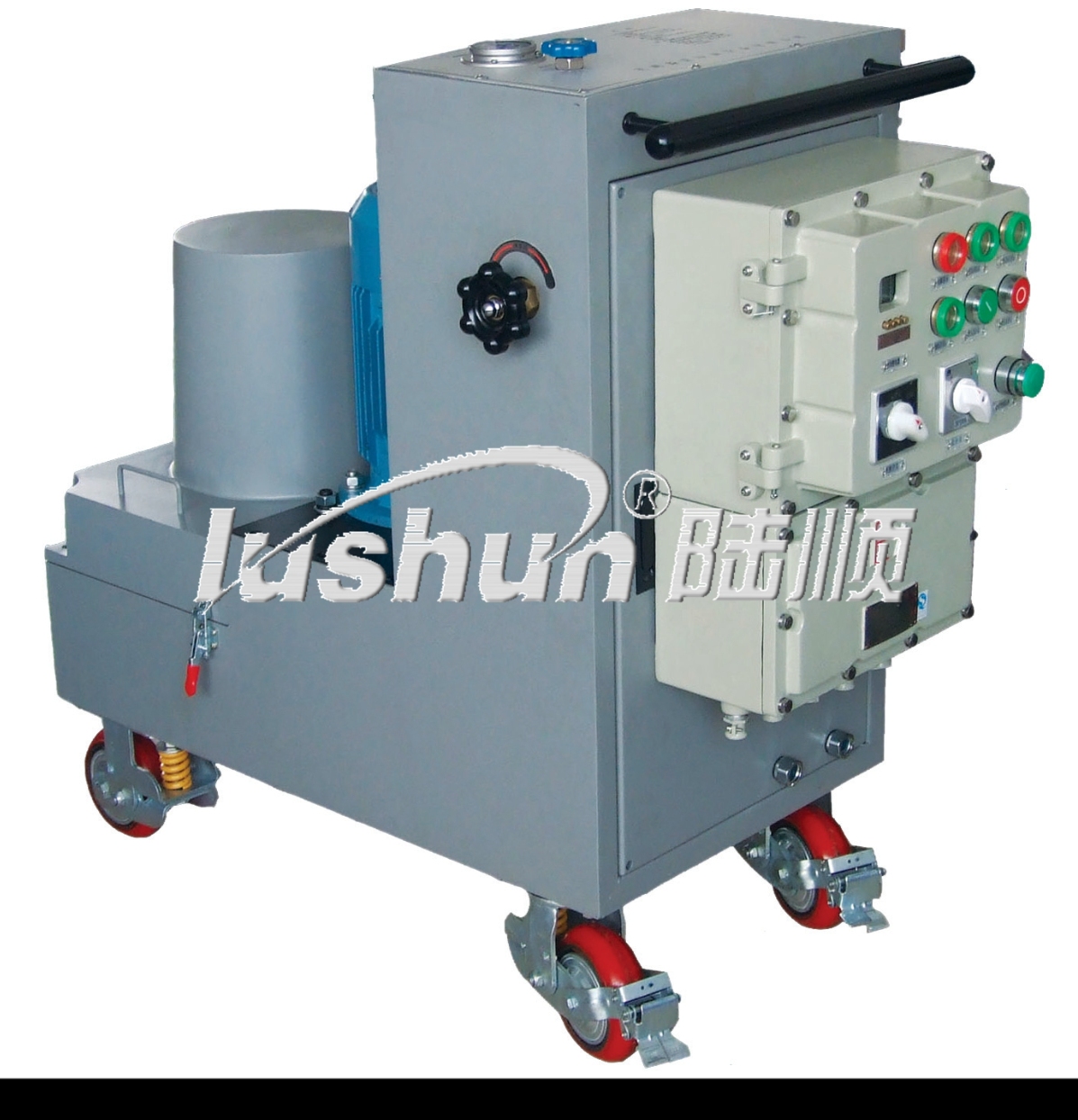

DPS Series Centrifugal Oil Purifier
Application:
DPS series centrifugal oil purifier adopts the principle of high speed centrifuge and is equipped with the function of vacuum exhaust, which can quickly separate incompatible substances (mechanical impurities, free water) with different specific gravity. Suitable for all kinds of turbine oil, hydraulic oil, lubricating oil, sealing oil, etc., the viscosity of the purified oil can reach 680mm²/s. However, due to its principle, dissolved water can not be removed, so it is often used in combination with vacuum oil filter unit to achieve four-phase separation (solid particles, free water, dissolved water, gas).
The centrifugal component of the oil is rotated at a high speed at 8600 RPM, and the centrifugal force generated will be larger than the proportion of various metal and non-metal pollutants in the oil and the water in the oil by pure physical separation.
Advantages:
● Precision of purifying particle impurities
● Centrifugal purification, no consumables (no filter paper, filter element), low cost;
● The main piping system is made of stainless steel, which meets the requirements of corrosive conditions;
● Centrifugal cylinder and internal aluminum parts hard oxidation treatment, with high hardness and corrosion resistance;
● Spindle surface phosphating, enhance wear resistance and corrosion resistance;
● The inner disc of the equipment is made of imported PEK material, with corrosion resistance and high temperature resistance
Fatigue resistance;
● Fluid control components and pipeline accessories are made of stainless steel;
● Purification process without waste discharge, in line with the requirements of environmental protection;
● Equipment set multiple interlocking protection function, can work continuously for 24 hours.
Technical Specification:
Model | DPS80 | Rated Power | 4.25KW |
Cleanliness after Purification | NAS1638 3-7degrade | Pressure | 380VAC,three-phase |
Water Content | ≤100PPm | Net Weight | 260kg |
Centrifuge Speed | 8600r/min035-0L/min | output pressure | 0.15-0.40Mpa |
Flow | 35-80L/min | Container capacity | 3.4L |
Drainage Method | Automatic drainage without shutdown | Impurity cleaning method | manual operation |
Purify Oil Viscosity Range | ≤680mm²/s | Drive Mode | Multi-wedge belt and pulley |
Overall Dimension | 1205*680*1080mm | Installation | Mobile Type |
Working Mode | Fuel tank bypass on line circulation | Used medium | Stainless steel/carbon steel material |
■Above size and weight are for reference only, the specific data shall be subject to its physical object.

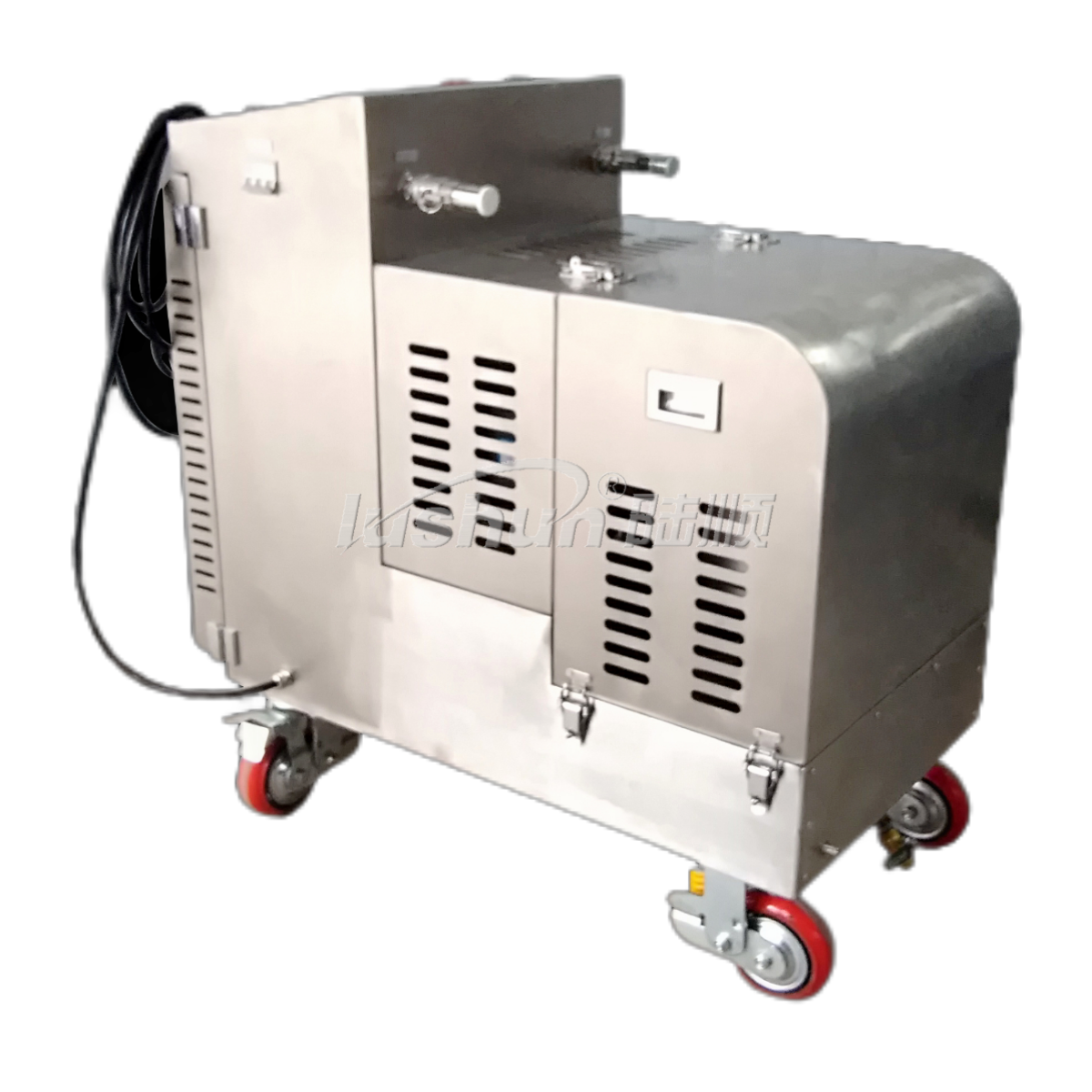

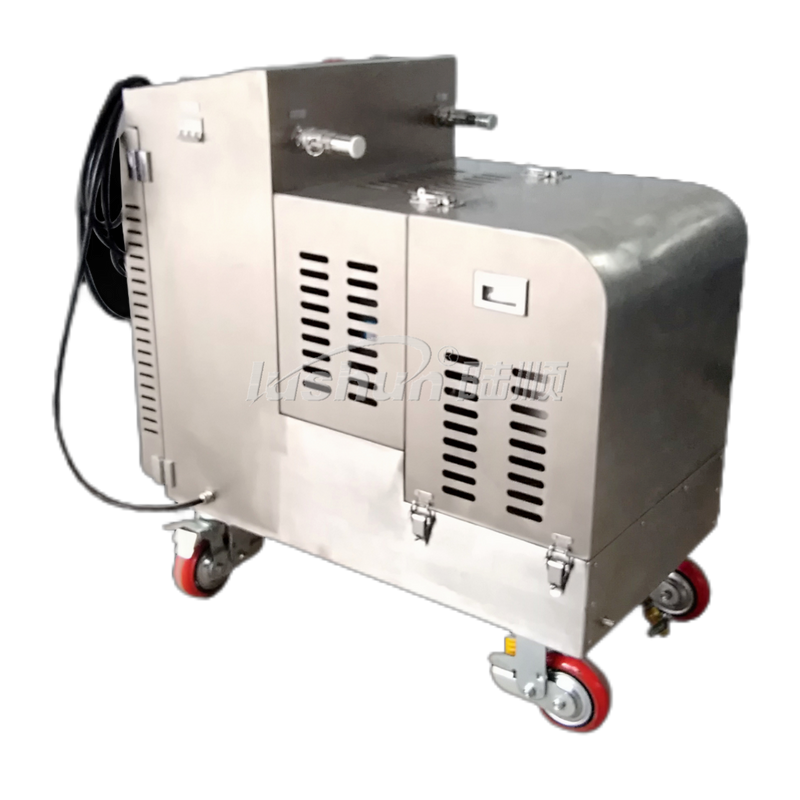

DPS Series Centrifugal Oil Purifier
Application:
DPS series centrifugal oil purifier adopts the principle of high speed centrifuge and is equipped with the function of vacuum exhaust, which can quickly separate incompatible substances (mechanical impurities, free water) with different specific gravity. Suitable for all kinds of turbine oil, hydraulic oil, lubricating oil, sealing oil, etc., the viscosity of the purified oil can reach 680mm²/s. However, due to its principle, dissolved water can not be removed, so it is often used in combination with vacuum oil filter unit to achieve four-phase separation (solid particles, free water, dissolved water, gas).
The centrifugal component of the oil is rotated at a high speed at 8600 RPM, and the centrifugal force generated will be larger than the proportion of various metal and non-metal pollutants in the oil and the water in the oil by pure physical separation.
Advantages:
● Precision of purifying particle impurities
● Centrifugal purification, no consumables (no filter paper, filter element), low cost;
● The main piping system is made of stainless steel, which meets the requirements of corrosive conditions;
● Centrifugal cylinder and internal aluminum parts hard oxidation treatment, with high hardness and corrosion resistance;
● Spindle surface phosphating, enhance wear resistance and corrosion resistance;
● The inner disc of the equipment is made of imported PEK material, with corrosion resistance and high temperature resistance
Fatigue resistance;
● Fluid control components and pipeline accessories are made of stainless steel;
● Purification process without waste discharge, in line with the requirements of environmental protection;
● Equipment set multiple interlocking protection function, can work continuously for 24 hours.
Technical Specification:
Model | DPS80 | Rated Power | 4.25KW |
Cleanliness after Purification | NAS1638 3-7degrade | Pressure | 380VAC,three-phase |
Water Content | ≤100PPm | Net Weight | 260kg |
Centrifuge Speed | 8600r/min035-0L/min | output pressure | 0.15-0.40Mpa |
Flow | 35-80L/min | Container capacity | 3.4L |
Drainage Method | Automatic drainage without shutdown | Impurity cleaning method | manual operation |
Purify Oil Viscosity Range | ≤680mm²/s | Drive Mode | Multi-wedge belt and pulley |
Overall Dimension | 1205*680*1080mm | Installation | Mobile Type |
Working Mode | Fuel tank bypass on line circulation | Used medium | Stainless steel/carbon steel material |
■Above size and weight are for reference only, the specific data shall be subject to its physical object.
