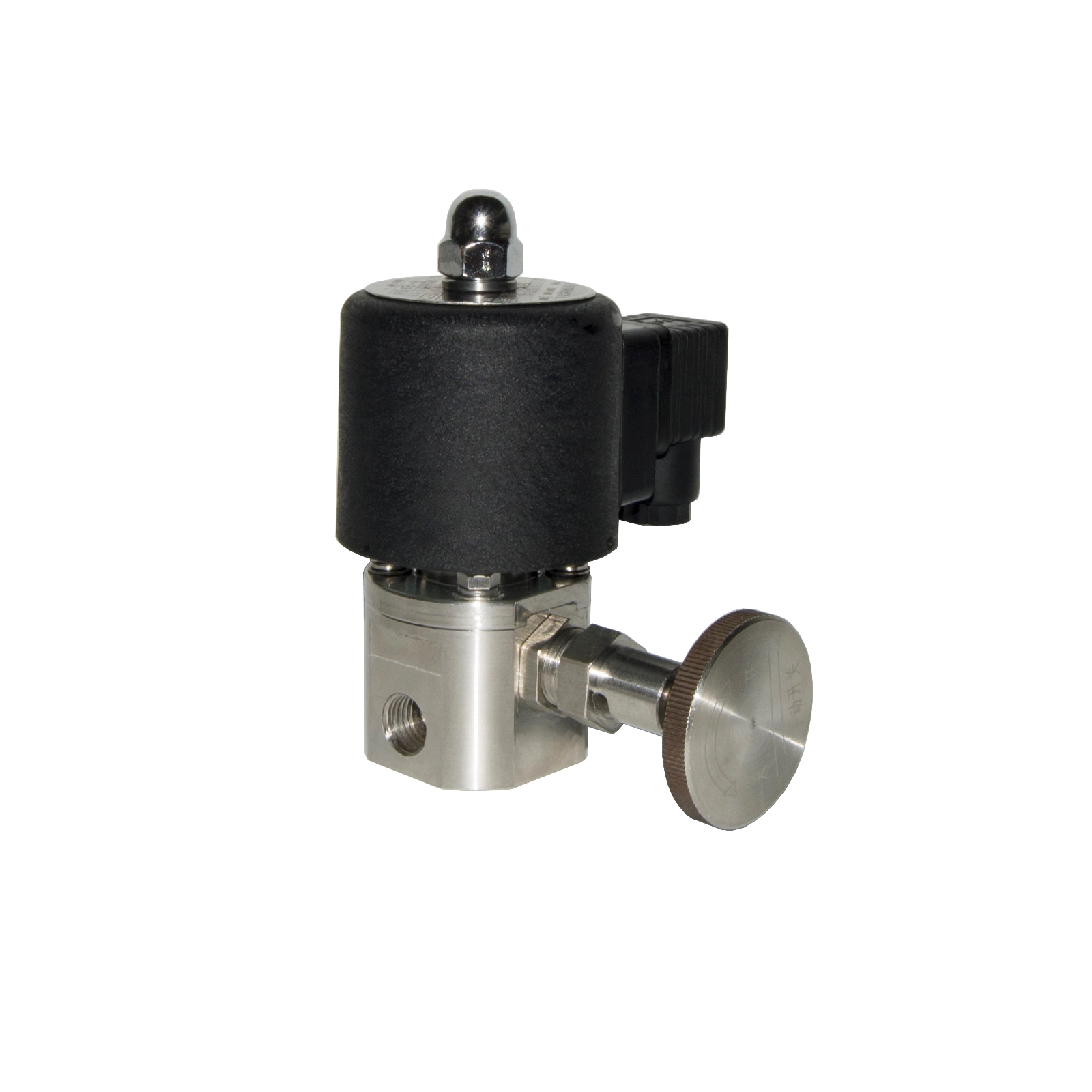

Direct-acting Solenoid Valve

                                                             Direct-acting  Solenoid  Valve

Range  of  use:steam  system,high  pressure  system,cryogenic  system,Petroleum  system    Filling    system,liquefaction    system,heating     system,Storage    system,Power  plant     equipment,Petrochemical      equipment,Pneumatic     equipment,Pipeline

automatic   control   engineering Technique   parameter:

The   principle   structure:step   piston   type Size      range:DN0.5~25

The       ambient       temperature:-10~+50℃、-30~+85℃、-50~+100℃ Control  mode:norm  ally  open  .normally  close

Working        voltage:AC660V,AC380V,AC220V,AC127V,AC36V,AC24V

DC220V,DC110V,DC36V,DC24V、DC12V Medium:water,gas,oil       etc.

Medium                 temperature:>-200℃、>-60℃、>-40℃、<+60℃、>-200℃、>-60℃、>-40℃,

<+60℃、<+120℃、<+200℃、<+350℃

The        pressure:-0.1MPa,0-0.6MPa,0-10MPa Connection:thread,flange,welding

Wiring:plastic  box  plug,iron  cover  of  lead

Body    material:WCB     stainless     steel(304、321、316、316L、316H、2025),Brass,bronze Electricalinterface:can    be   customized

Specification parameter and fixing dimension
