LUSHUN

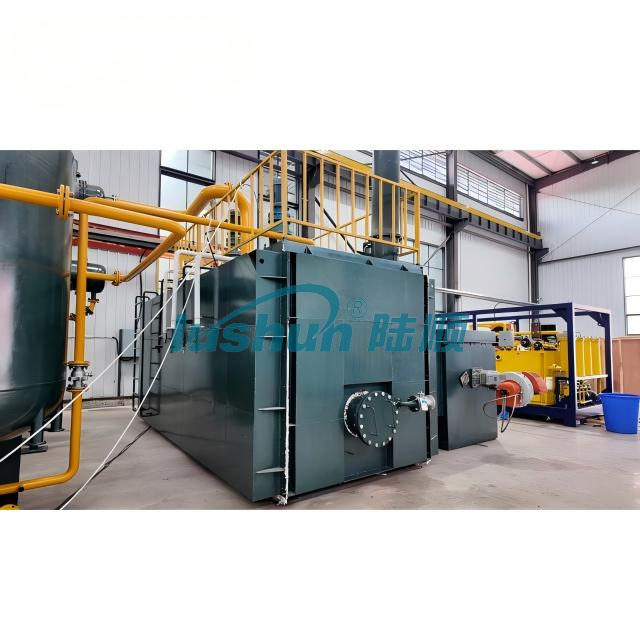

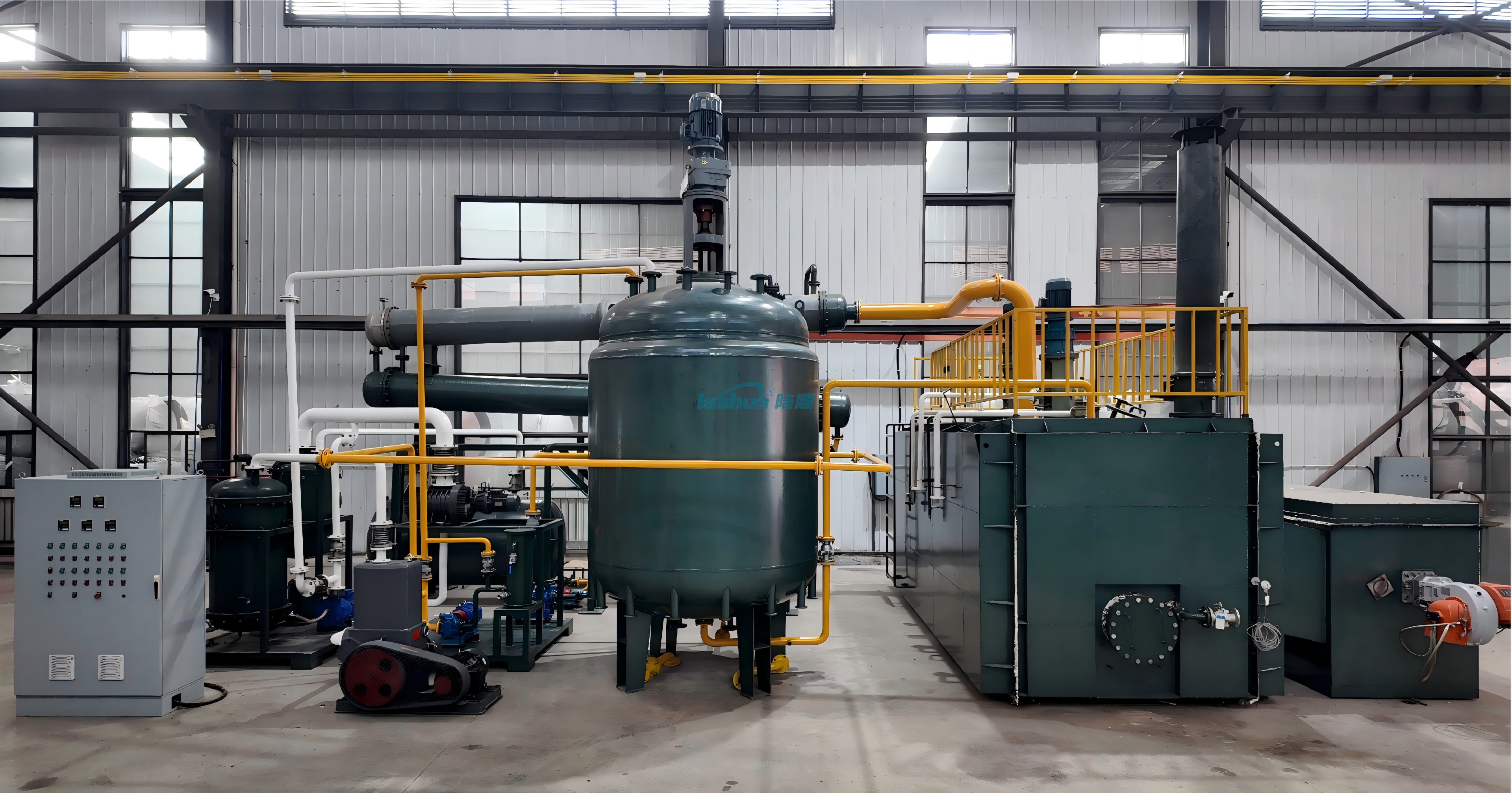

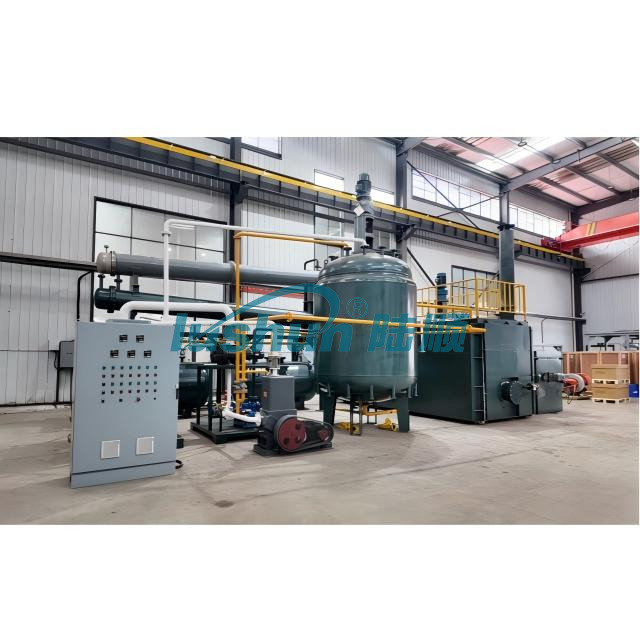

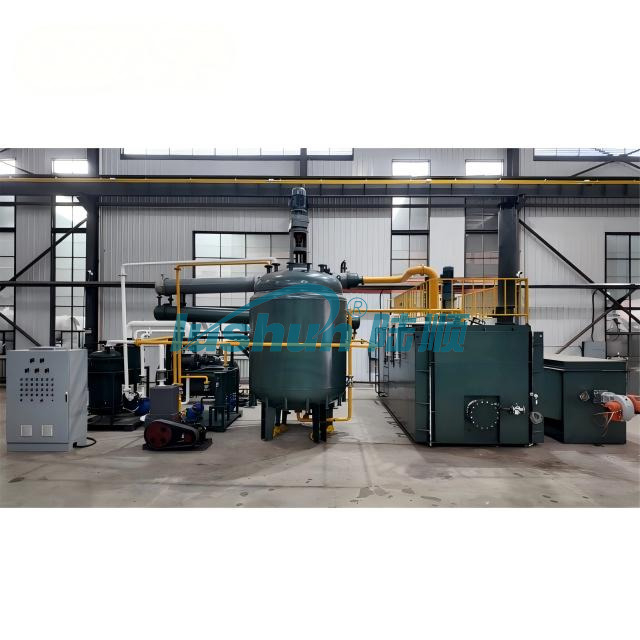

FZB-J Series Waste Oil Distillation Plant (Base Oil)
Application：
This equipment is mainly used for waste mineral lubricating oil (including waste machining oil, engine oil, motor oil, lubricating oil, hydraulic oil, gear oil, mixed oil, etc.) regeneration. The base oil with good quality and a small amount of gasoline and diesel oil are obtained by vacuum distillation. In the distillation process, hydrocarbon chains are broken and the molecules are recombined to form a new oil product which is then changed into an oil mist and then condensed into a liquid and the final qualified base oil. It can effectively remove wear residue, asphaltene, wax, impurities, moisture, acid value, carbon deposition, and oxides from the oil.
The equipment is suitable for refineries and small enterprises that need to process waste mineral lubricating oil. In the process of treatment, only a little waste residue and water are produced, and volatiles are discharged after purification and completely burning. And it mainly adopts light fuel oil to provide heat source for the equipment.
Features:
l The equipment adopts advanced vacuum distillation technology, only need to add a small amount of additive materials which is low cost and easy to buy.
l The operation cost of the equipment is low, and the high quality base oil can be produced with very little cost.
l The equipment is easy to operate, only 2 workers can operate.
l It can process waste oil, waste motor oil, all kinds of waste engine oil and other mineral lubricating oil.
l Its recovery rate is above 85%.

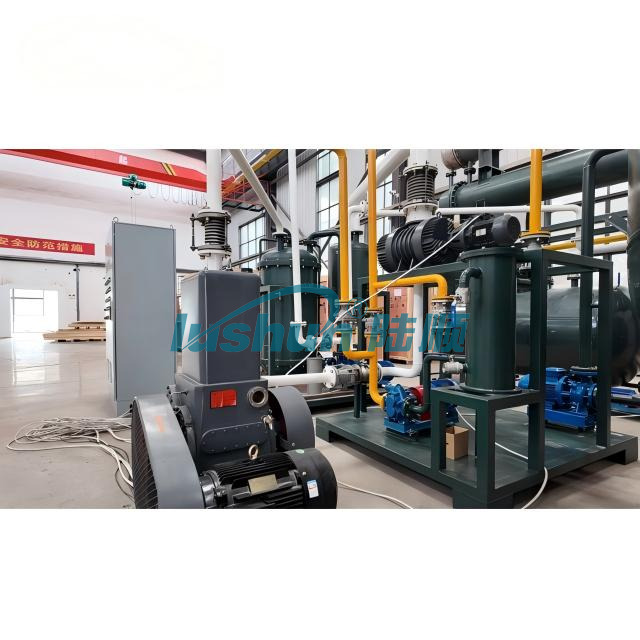

l With high vacuum system, to ensure the equipment under the working vacuum operation.
Advantages:
l This equipment adopts indirect heating method to heat up the oil, eliminating all defects of direct heating.
l Heat treatment is carried out after the welding of its main kettle to improve the mechanical properties of the material, and the designed service life is more than 20 years.
l The main kettle is fully covered with all-sided heating, with uniform heating, small heat loss and fast temperature rise. At the same time, the main kettle can meet the all-sided comprehensive coverage of cooling, to ensure that two batches of processing every day, so that yield capacity is improved, cost input is reduced, and economic benefits are highly improved.
Technical Specification:
Parameter Name | Unit | FZB-JI | FZB-JII | FZB-JIII | FZB-JIV |
Treatment Capacity | T/D | ≤2.5 | ≤5 | ≤10 | ≤15 |
Volume of Distillation Column | m³ | 5 | 10 | 20 | 30 |
Recovery Rate | % | 85 | |||
Working Vacuum Degree | MPa | -0.08~-0.09MPa (by reduced pressure distillation) | |||
Working Temperature | ℃ | 0~400℃ | |||
Working Noise | dB(A) | ≤80 | |||
Power Supply | V | 380V/50Hz or Can be customized. | |||
Heating Method | Fuel Oil Burner / Fuel Gas Burner | ||||
Total Power | KW | 42 | 50 | 100 | 150 |
Net Weight | T | 8 | 9 | 18 | 27 |
Floor Space | square | ≥72 | ≥80 | ≥160 | ≥240 |
Remarks | The treatment capacity is calculated 15 hours per day; The weight of the equipment shall be prevailed in kind. | ||||
■Above size and weight are for reference only, the specific data shall be subject to its physical object.
