LS-GJL-100
LUSHUN
LS-GJL-100,LS-GJL-200

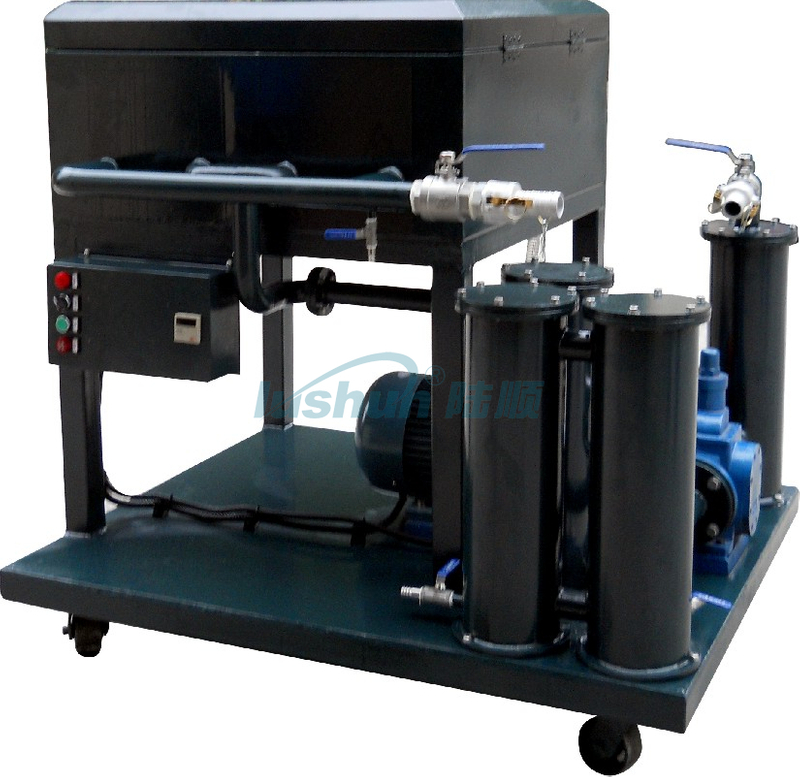

GJL Series Construction Machinery Dedicated Hydraulic Oil Purifier
Application:

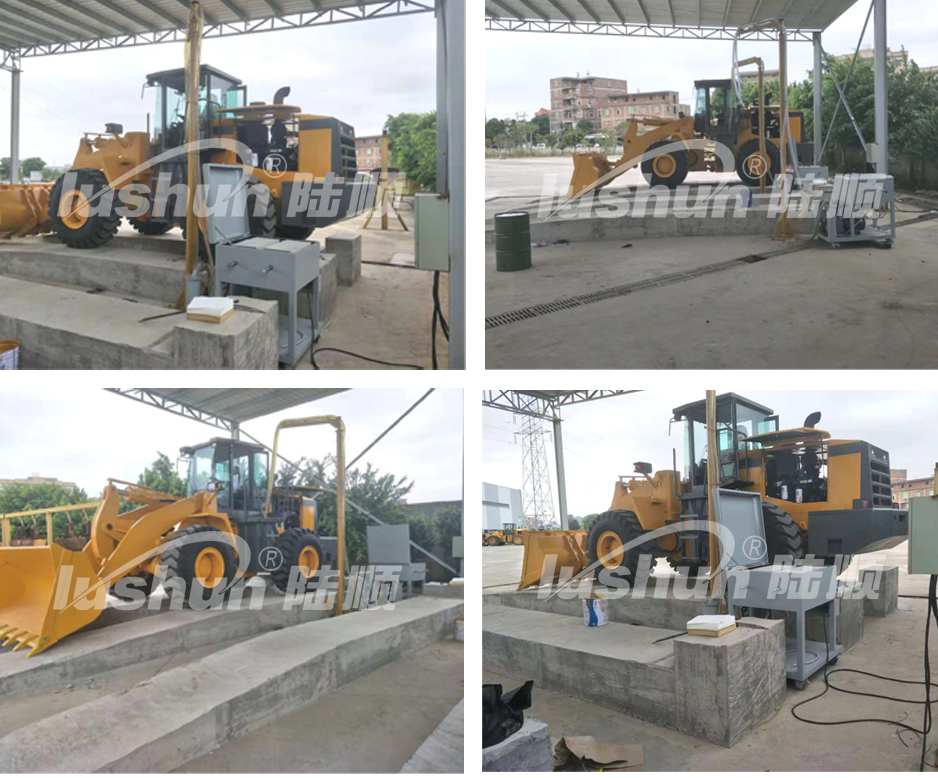

GJL Series Construction Machinery Dedicated Hydraulic Oil Purifier is widely applied to manufacturers and users of construction machinery. It can conduct purification operation for lubricating oil in hydraulic systems in construction machinery to remove metal powder, scrap iron and other impurities so as to prolong service life of relative parts in hydraulic system and reduce the breakdown of the equipment.
GJL oil purifier is composed of oil pump, filter cartridge, magnetic filter, filter press and electric control cabinet etc. It equips with pressure protection device, overload and over-current protection device, timing automatic stop control and filter replacing alarm indicator with lower operation cost.
Technical Specification:
Model | Flow Rate (L/min) | Power (KW) | Oil In/Out Diameter (mm) | Weight (kg) | Overall Dimension (L×W×H: mm) |
LS-GJL-100 | 100 | 1.5 | 11/4” | 300 | 800×1000×1100 |
LS-GJL-200 | 200 | 3 | 2” | 600 | 1100×1250×1150 |
■ Above size and weight is only for reference, the specific data shall be as per its physical object.
