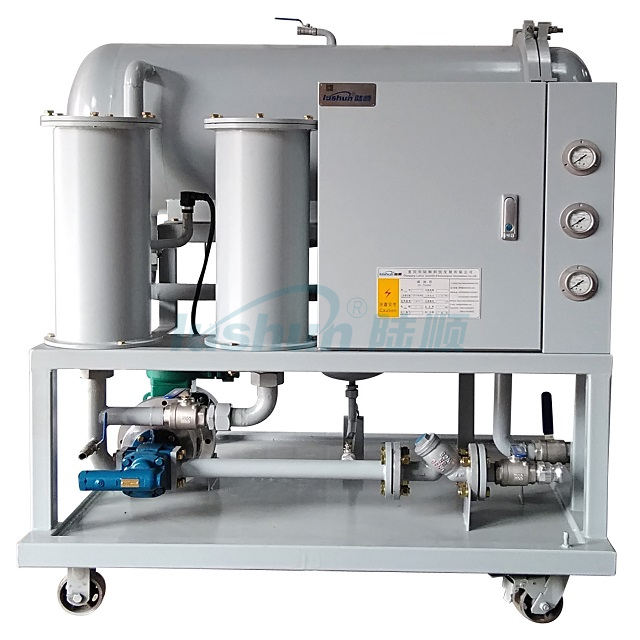

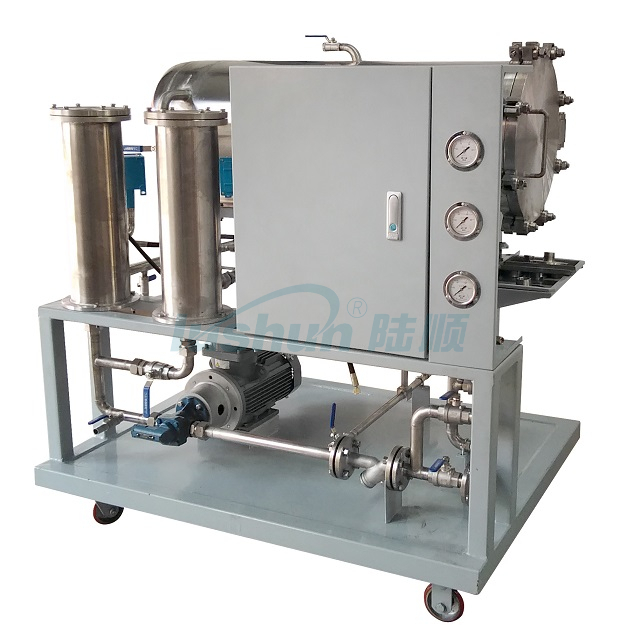

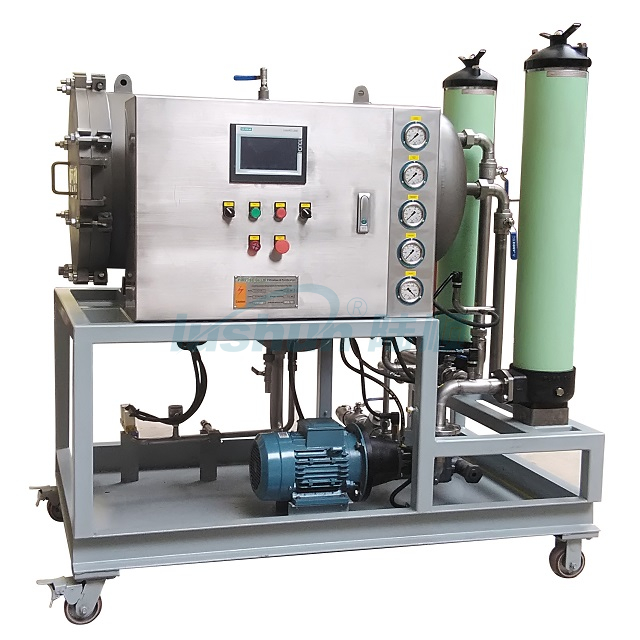

HCP Series Coalescence Separation Oil Purifier
Application
HCP series coalescence separation oil purifier machine is consisted of rough filter, second filter, fine filter, coalescence separation filter, oil pump and electrical control system. It has three functions: 1) filtration and dehydration function to remove emulsified water, free water and impurities. 2) It can be used as oil filling machine only to remove impurities from oil. Its work theory: oil goes through specially made filter from outside to inside, by this direction, the hole of filter layer is smaller and smaller, different layer can prevent different size of impurities. This design improved lifetime and efficiency of filters. 3) There is inner circulation so that operator can replace coalescence and separation filter.
It is used as the filtration and dehydration system for turbine oil. It combines high precision filtration and high efficiency dehydration functions, which can effectively remove impurities, emulsified water and free water from oil. It can improve oil quality, reduce cost of reprocessing and pollution, and lower the cost of maintenance and operation.
Technical Specification
Index | Unit | LS-HCP-50 | LS-HCP-100 | LS-HCP-200 | LS-HCP-300 | |
Flow Rate | L/H | 3000 | 6000 | 12000 | 18000 | |
Working Pressure | MPa | ≤0.5 | ||||
Oil Temperature | ℃ | ≤70 | ||||
Power Supply | V | 380V/50Hz or at user's option | ||||
Total Power | Kw | 1.5 | 1.5 | 3 | 4 | |
Inlet/Outlet Diameter | mm | 32 | 40 | 50 | 65 | |
Weight | Kg | 390 | 500 | 800 | 1200 | |
Overall Dimension (L×W×H) | cm | 150×100×130 | 160×120×150 | 170×125×180 | 210×125×160 | |
Water Content | ppm | ≤100（GB/T7600） | ||||
Filtration Precision | μm | ≤10 | ||||
■Above mentioned weight and size are for reference only, the specific data shall be as per the standard of real goods.
