LS-JL-20A,LS-JL-50A,LS-JL-100A,LS-JL-150A,LS-JL-200A,LS-JL-300A,LS-JL-500A
LUSHUN
LS-JL-20A,LS-JL-50A,LS-JL-100A,LS-JL-150A,LS-JL-200A,LS-JL-300A,LS-JL-500A

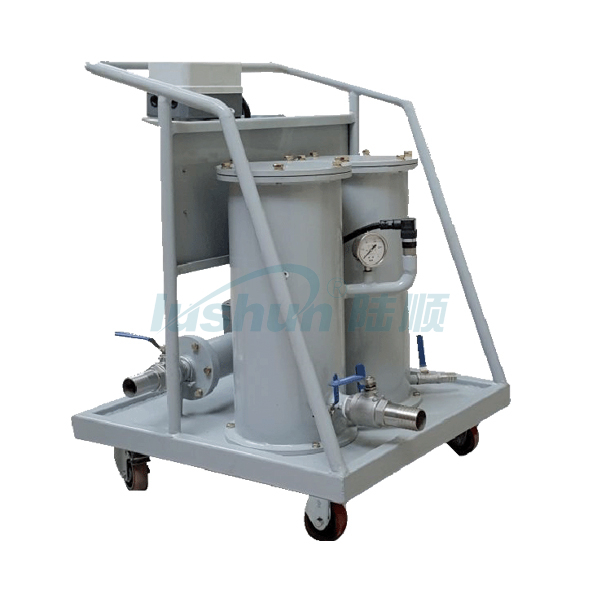

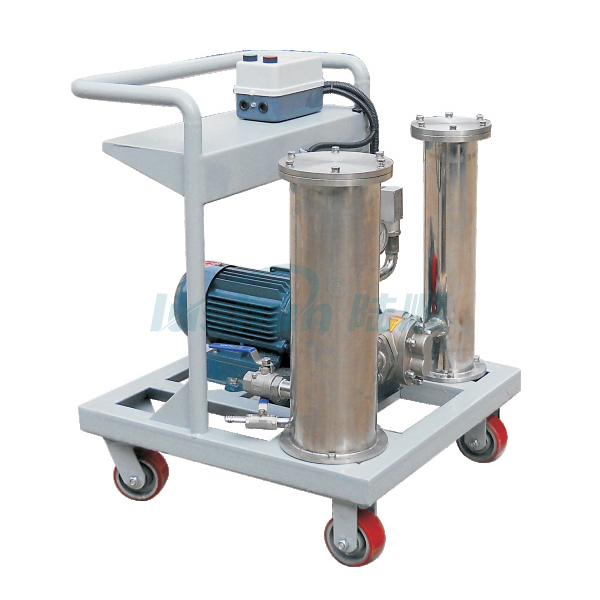

JL-A Series Portable Oil Filtering Trolley
JL series portable oil filtering trolley is used for removing impurities while supplying the liquid media such as machine oil, lubricating oil, turbine oil, compressor oil, insulating oil, diesel engine oil and gasoline engine oil widely applied in the industries of power plant, power station, power supply bureau, oil depot, metallurgy, chemical engineering, railway, machineries, aviation and so on. It can both filtering impurities online and pump and fill oil to lubricating system at long distance and high suction. It adopts Delixi magnetic starter and sets over-pressure alarm. Its filtration precision, stage and flow rate can be optional as per users’ needs, and besides, a 5kw heating system can be equipped with it additionally.
JL series consists of:
JL-A Series for purifying oil with viscosity under 220#;
JL-G Series for purifying oil with viscosity over 220#;
JL-E Series for purifying oil in explosive and flammable environment;
JL-K Series for purifying oil which flow parts must be stainless steel.
Technical Specification:
Item | Unit | LS-JL-20 | LS-JL-50 | LS-JL-100 | LS-JL-150 | LS-JL-200 | LS-JL-300 | LS-JL-500 |
Flow Rate | L/h | 1200 | 3000 | 6000 | 9000 | 12000 | 18000 | 30000 |
Power Supply | V | 380V/50Hz(can be customized) | ||||||
Motor Power | KW | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 5.5 | 7.5 |
Inlet/Outlet Diameter | mm | 32 | 32 | 40 | 50 | 50 | 60 | 80 |
Net Weight | Kg | 120 | 150 | 170 | 200 | 220 | 250 | 300 |
L×W×H | mm | 600×700×850 | 650×700×850 | 700×750×900 | 900×750×1000 | 1100×850×1000 | ||
Filtration Precision | μm | ≤10(can be customized.) |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
JL-A Series Portable Oil Filtering Trolley
JL series portable oil filtering trolley is used for removing impurities while supplying the liquid media such as machine oil, lubricating oil, turbine oil, compressor oil, insulating oil, diesel engine oil and gasoline engine oil widely applied in the industries of power plant, power station, power supply bureau, oil depot, metallurgy, chemical engineering, railway, machineries, aviation and so on. It can both filtering impurities online and pump and fill oil to lubricating system at long distance and high suction. It adopts Delixi magnetic starter and sets over-pressure alarm. Its filtration precision, stage and flow rate can be optional as per users’ needs, and besides, a 5kw heating system can be equipped with it additionally.
JL series consists of:
JL-A Series for purifying oil with viscosity under 220#;
JL-G Series for purifying oil with viscosity over 220#;
JL-E Series for purifying oil in explosive and flammable environment;
JL-K Series for purifying oil which flow parts must be stainless steel.
Technical Specification:
Item | Unit | LS-JL-20 | LS-JL-50 | LS-JL-100 | LS-JL-150 | LS-JL-200 | LS-JL-300 | LS-JL-500 |
Flow Rate | L/h | 1200 | 3000 | 6000 | 9000 | 12000 | 18000 | 30000 |
Power Supply | V | 380V/50Hz(can be customized) | ||||||
Motor Power | KW | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 5.5 | 7.5 |
Inlet/Outlet Diameter | mm | 32 | 32 | 40 | 50 | 50 | 60 | 80 |
Net Weight | Kg | 120 | 150 | 170 | 200 | 220 | 250 | 300 |
L×W×H | mm | 600×700×850 | 650×700×850 | 700×750×900 | 900×750×1000 | 1100×850×1000 | ||
Filtration Precision | μm | ≤10(can be customized.) |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
