LS-JL-20D, LS-JL-50D
LUSHUN
LS-JL-20D, LS-JL-50D

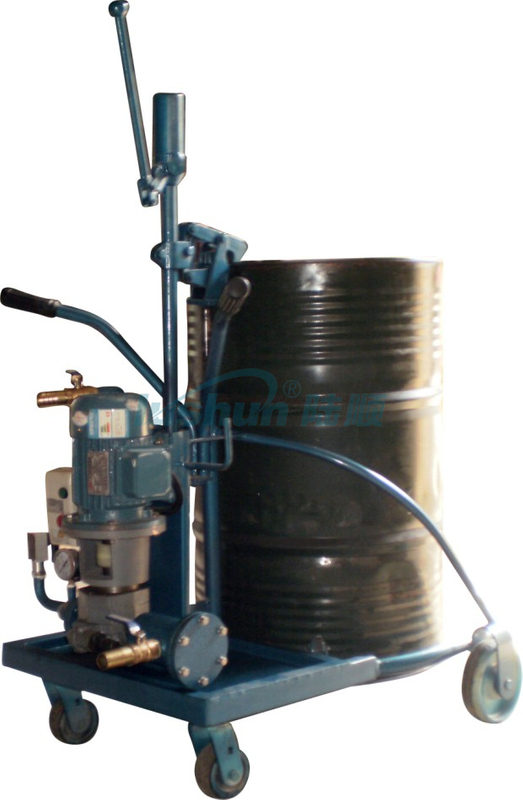

JL-D Series Oil Tank Mounted Type Portable Oil Filtering Cart
Application:
JL-D series Oil tank mounted type portable oil filtering cart is used in the industries of machinery, chemical engineering, and metallurgy where request oil supply and impurities removal for the lubricating system. It can supply and pump oil for the lubricating system at long distance and suction.
Advantages:
● With a oil tank for oil supply (oil filling and pumping) at site;
● With over-pressure alarm to stop;
● Fast and efficient solid pollutants removal;
● With small and compact structure, easy to move and operate;
● Optional filtration precision can be customized.
Technical Specifications:
Item | Unit | LS-JL-20D | LS-JL-50D |
Flow Rate | L/h | 1200 | 3000 |
Power Supply | V | 380V/50Hz(can be customized.) | |
Motor Power | Kw | 1.5 | 1.5 |
Inlet/Outlet Diameter | mm | 32 | 32 |
Net Weight | Kg | 120 | 150 |
L×W×H | mm | 1000×900×950 | |
Filtration Precision | μm | ≤10 (can be customized.) |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
JL-D Series Oil Tank Mounted Type Portable Oil Filtering Cart
Application:
JL-D series Oil tank mounted type portable oil filtering cart is used in the industries of machinery, chemical engineering, and metallurgy where request oil supply and impurities removal for the lubricating system. It can supply and pump oil for the lubricating system at long distance and suction.
Advantages:
● With a oil tank for oil supply (oil filling and pumping) at site;
● With over-pressure alarm to stop;
● Fast and efficient solid pollutants removal;
● With small and compact structure, easy to move and operate;
● Optional filtration precision can be customized.
Technical Specifications:
Item | Unit | LS-JL-20D | LS-JL-50D |
Flow Rate | L/h | 1200 | 3000 |
Power Supply | V | 380V/50Hz(can be customized.) | |
Motor Power | Kw | 1.5 | 1.5 |
Inlet/Outlet Diameter | mm | 32 | 32 |
Net Weight | Kg | 120 | 150 |
L×W×H | mm | 1000×900×950 | |
Filtration Precision | μm | ≤10 (can be customized.) |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
