LS-JL-20G, LS-JL-50G, LS-JL-100G, LS-JL-150G, LS-JL-200G, LS-JL-300G, LS-JL-500G,
LUSHUN
LS-JL-20G, LS-JL-50G, LS-JL-100G, LS-JL-150G, LS-JL-200G, LS-JL-300G, LS-JL-500G,

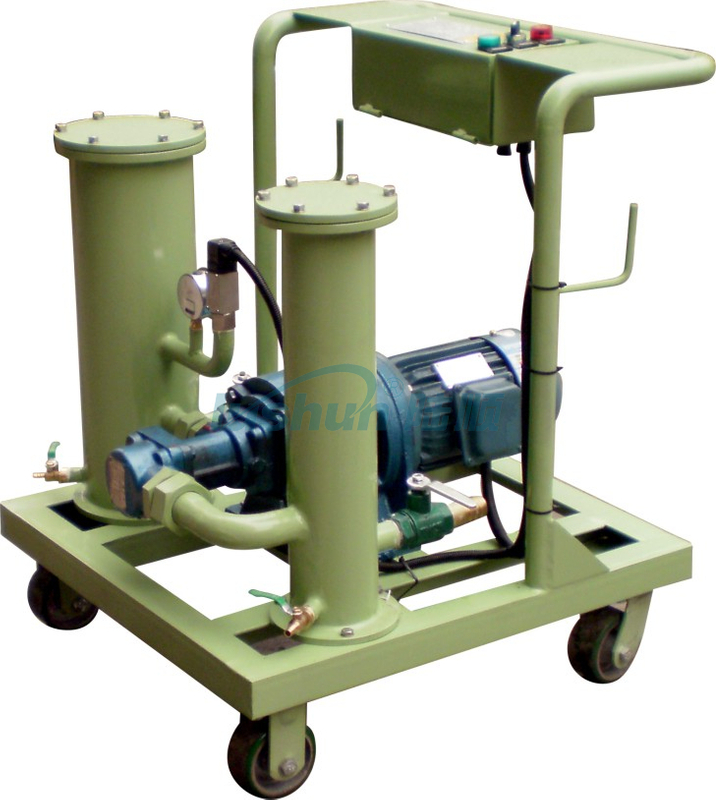

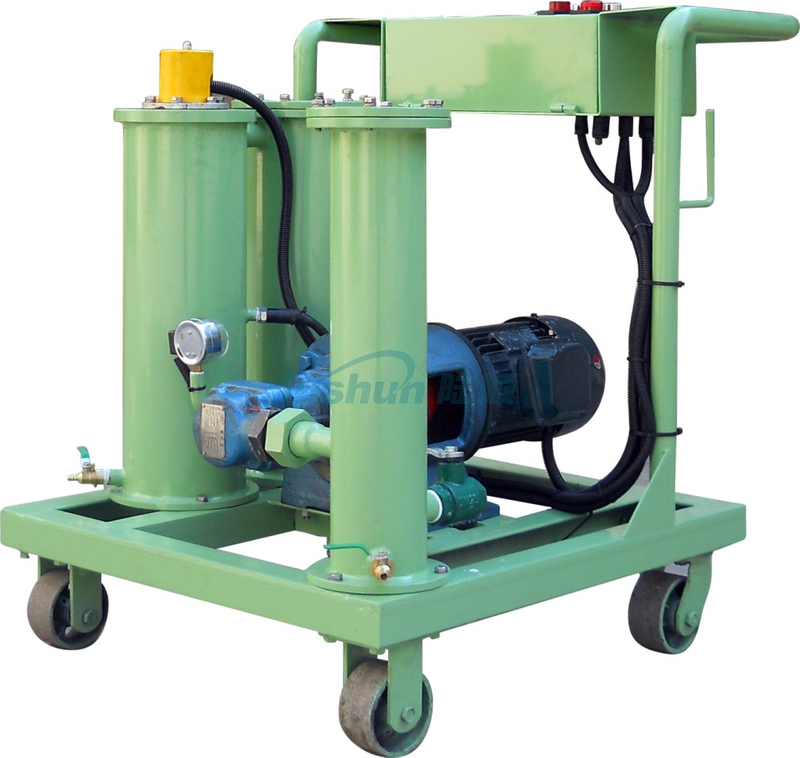

JL-G High Viscosity Oil Purifier Series
Application:
Especially used for power plant, oil depot, metallurgy, chemical, mechanical and other industries to transport high viscosity oil such as gear pump oil while filtering impurities. It is available for long distance, high lift lubricating oil system refueling and pumping, and can also on-line filtering impurities from oil.
Feature:
·Screw pump used as transmission power;
·Overpressure alarm stop;
·With high speed and efficiency solid pollutants filtering;
·Compact structure, small size and convenient movement and use;
·Filtration precision and filter stages can be freely selected;
·There are a variety of models and specifications for option.
Technical Specification:
Item | Unit | LS-JL-20G | LS-JL-50G | LS-JL-100G | LS-JL-150G | LS-JL-200G | LS-JL-300G | LS-JL-500G |
Flow Rate | L/h | 1200 | ||||||
Power Supply | V | 380V/50Hz (Can be customized.) | ||||||
Motor Power | KW | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 5.5 | 5.5 |
Inlet/Outlet Dia. | mm | 32 | 32 | 40 | 50 | 50 | 60 | 80 |
Net Weight | kg | 150 | 180 | 200 | 230 | 250 | 280 | 350 |
Overall Dimension (L×W×H) | mm | 700×700×850 | 750×800×850 | 800×850×900 | 1000×850×1000 | 1200×950×1000 | ||
Filtration Precision | μm | ≤10 (Can be customized.) |
The size and weight of the equipment are for reference only and subject to the physical object.
