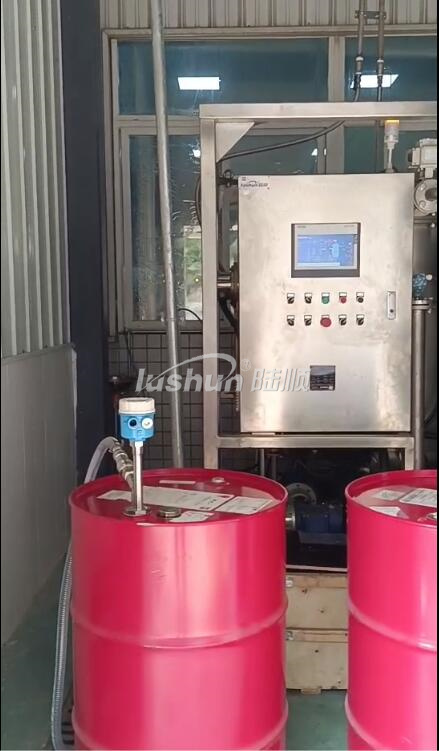

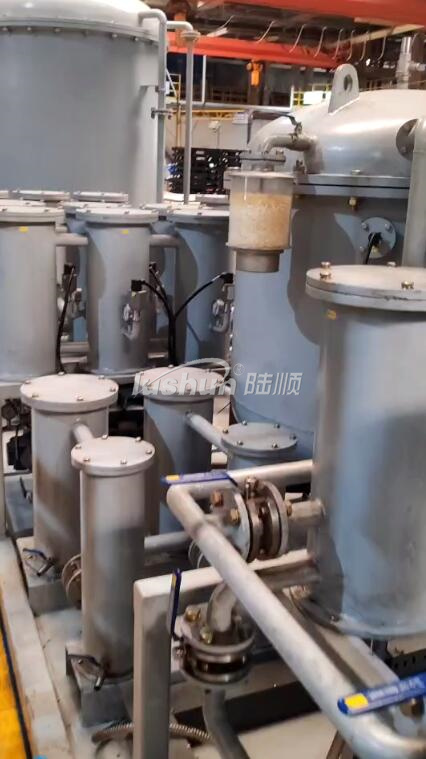

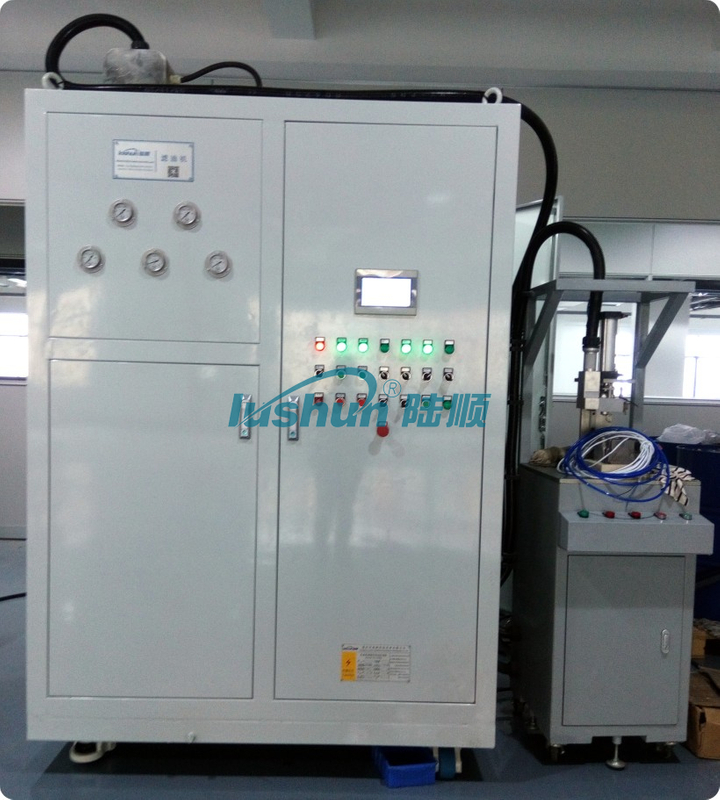

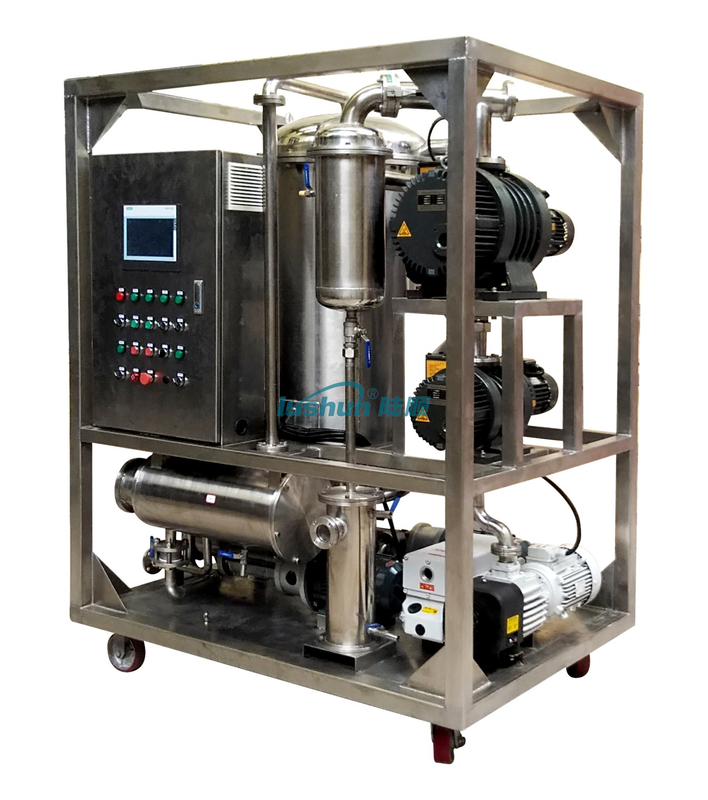

LD Series Refrigeration Oil Purifier
Application
LD series refrigeration oil purifier is used for the vacuum degassing, dehydration, and particle removal from the refrigeration oil (mineral oil, Polyyalkylene Glycol PAG, ester oil POE Polyol Ester , ether PVE, etc. ) that applied in refrigerator compressor, air-conditioner compressor, and automobile air-conditioning compressor, etc. It can be matched with flow meter of accumulation function, moisture detector, particle detector, and quantitative injection system.
Advantages
●Adopts double stage vacuum system to provide high pumping speed.
●With strong water separation capability to remove trace moisture and gas from the oil.
●With high filtering precision to improve oil performance.
●Automatic liquid level control, automatic constant temperature control, easy and reliable operation.
●Able to work continuously without any attendants.
●Applies stainless material to liquid oil circulation parts.
Technical Specification
Item | Index | Unit | LS-LD-20 | LS-LD-50 | LS-LD-100 |
Equipment’s Technical Parameter | Flow Rate | L/min | 20 | 50 | 100 |
Working Vacuum Degree | MPa | -0.08~-0.098 | |||
Working Pressure | MPa | ≤0.5 | |||
Power Supply | V/Hz | 380V/50Hz( can be customized.) | |||
Working Noise | dB(A) | ≤75 | |||
Heating Power | Kw | 4 | 6 | 10 | |
Total Power | Kw | 10 | 12 | 16 | |
Net Weight | Kg | 800 | 1200 | 1300 | |
Overall Dimension (L×W×H) | cm | 155×110×200 | 180×150×215 | 190×160×215 | |
Oil Index After Treatment | Water Content | PPM | 5~100 (in accordance with oil quality and user’s requirements.) | ||
Gas Content | % | ≤0.1(GB/T423) | |||
Cleanliness | NAS | ≤6 grade |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
LD Series Refrigeration Oil Purifier
Application
LD series refrigeration oil purifier is used for the vacuum degassing, dehydration, and particle removal from the refrigeration oil (mineral oil, Polyyalkylene Glycol PAG, ester oil POE Polyol Ester , ether PVE, etc. ) that applied in refrigerator compressor, air-conditioner compressor, and automobile air-conditioning compressor, etc. It can be matched with flow meter of accumulation function, moisture detector, particle detector, and quantitative injection system.
Advantages
●Adopts double stage vacuum system to provide high pumping speed.
●With strong water separation capability to remove trace moisture and gas from the oil.
●With high filtering precision to improve oil performance.
●Automatic liquid level control, automatic constant temperature control, easy and reliable operation.
●Able to work continuously without any attendants.
●Applies stainless material to liquid oil circulation parts.
Technical Specification
Item | Index | Unit | LS-LD-20 | LS-LD-50 | LS-LD-100 |
Equipment’s Technical Parameter | Flow Rate | L/min | 20 | 50 | 100 |
Working Vacuum Degree | MPa | -0.08~-0.098 | |||
Working Pressure | MPa | ≤0.5 | |||
Power Supply | V/Hz | 380V/50Hz( can be customized.) | |||
Working Noise | dB(A) | ≤75 | |||
Heating Power | Kw | 4 | 6 | 10 | |
Total Power | Kw | 10 | 12 | 16 | |
Net Weight | Kg | 800 | 1200 | 1300 | |
Overall Dimension (L×W×H) | cm | 155×110×200 | 180×150×215 | 190×160×215 | |
Oil Index After Treatment | Water Content | PPM | 5~100 (in accordance with oil quality and user’s requirements.) | ||
Gas Content | % | ≤0.1(GB/T423) | |||
Cleanliness | NAS | ≤6 grade |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
How do you filter oil from an air compressor?
Oil vapor must be removedusing a filter with activated carbon. A correctly installed fiber filter, together with a suitable pre-filter, can reduce the quantity of oil in the compressed air to approximately 0.01 mg/ m3. A filter with activated carbon can reduce the quantity of oil to 0.003 mg/m3.
Do I need an oil water separator for my air compressor?
However oil/water separators are mandatory components for compressed air applications due to regulatory bodies, including the EPA. Failing to add an oil/water separator for air compressors not only hurts machine efficiency but can also result in costly fines.
How do you filter oil from an air compressor?
Oil vapor must be removedusing a filter with activated carbon. A correctly installed fiber filter, together with a suitable pre-filter, can reduce the quantity of oil in the compressed air to approximately 0.01 mg/ m3. A filter with activated carbon can reduce the quantity of oil to 0.003 mg/m3.
Do I need an oil water separator for my air compressor?
However oil/water separators are mandatory components for compressed air applications due to regulatory bodies, including the EPA. Failing to add an oil/water separator for air compressors not only hurts machine efficiency but can also result in costly fines.
