M SERIES PRODUCT FEATURES
1.Installation method: the entire unit is installed as a single piece, with auxiliary equipment placed on the skid block for easy and neat installation.
2. Cooling method: water cooling, air cooling, mixed cooling.
3.Driving mode: motor, natural gas engine and other driving modes.
4.Overall Layout:all levels of cylinder horizontal symmetrical arrangement, the first and second order inertia force and inertia moment can achieve complete balance, uniform tangential force, low center of gravity, small vibration.
5.Control system: PLC control system has perfect automatic protection function, can achieve all levels of exhaust pressure, exhaust temperature, cooling water pressure, lubricating oil pressure, vibration and other comprehensive monitoring; Can use soft start, frequency conversion start, automatic blowdown.
6.Main parameters: exhaust pressure 3-50Mpa, exhaust volume 10-30m³/min.
7.Compressed media: suitable for all kinds of media.
8.Application scenarios: widely used in aerospace, metallurgy, machinery, steel, chemical industry, scientific research, ships, offshore platforms, special inspection, and gas, special gas and other fields.

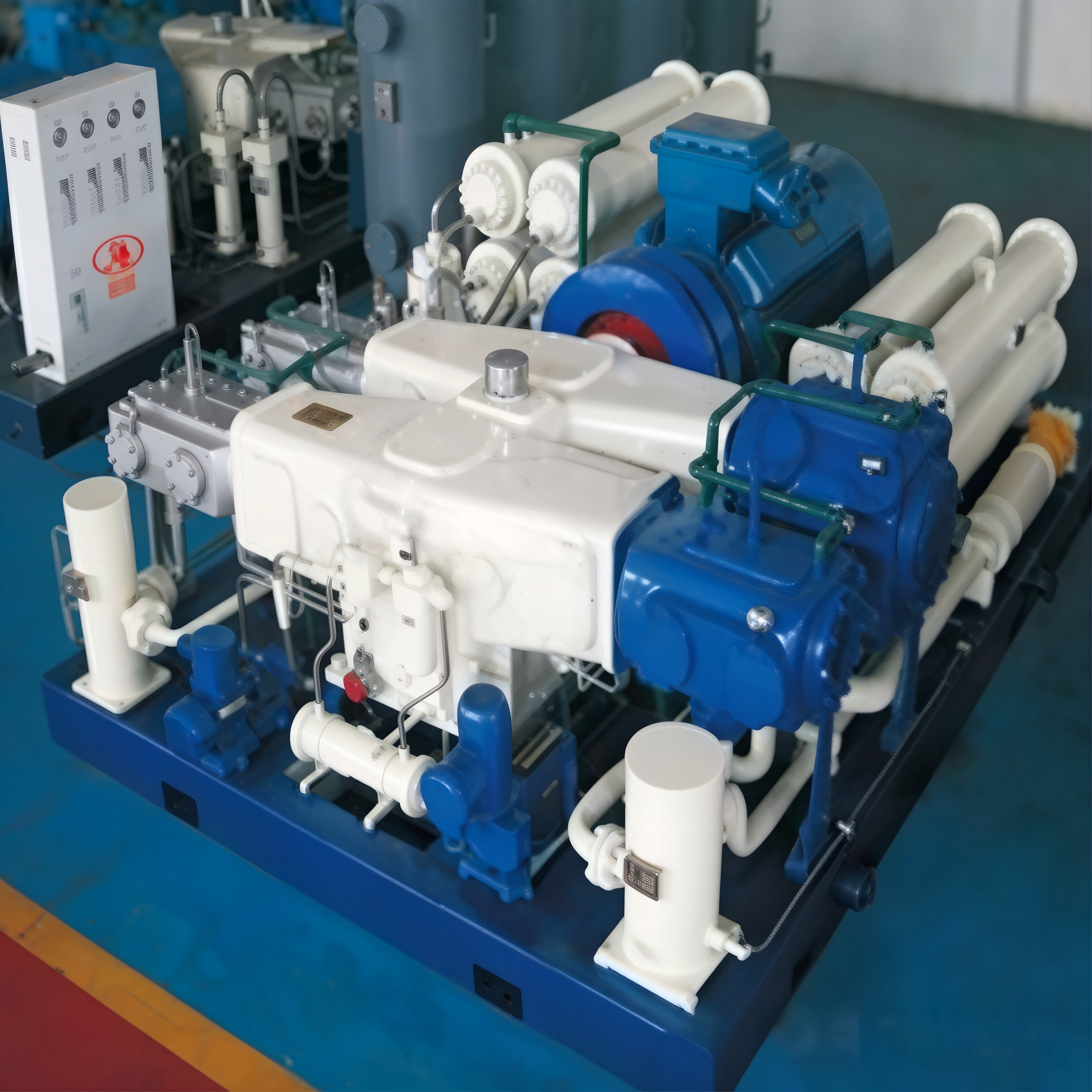

M SERIES WATER-COOLED HIGH-PRESSURE AIR COMPRESSOR MODEL
Model | Gas Displacement m³/min
| Discharge Pressure Mpa
| Grade | Main engine speed r/min
| Motor Power KW
| Overall Dimensions | Weight |
M-10/100 | 10 | 10 | 4Grade | 740 | 160 | 5200×3200×1800 | 10 |
M-10/200 | 10 | 20 | 5Grade | 740 | 185 | 5200×3200×1800 | 10 |
M-10/350 | 10 | 35 | 5Grade | 740 | 185 | 5200×3200×1800 | 10 |
M-10/400 | 10 | 40 | 5Grade | 740 | 185 | 5200×3200×1800 | 10 |
M-10/500 | 10 | 50 | 5Grade | 740 | 185 | 5200×3200×1800 | 10 |
M-15/100 | 15 | 10 | 5Grade | 740 | 250 | 5200×3200×1800 | 12 |
M-15/200 | 15 | 20 | 5Grade | 740 | 250 | 5200×3200×1800 | 12 |
M-15/350 | 15 | 35 | 5Grade | 740 | 250 | 5200×3200×1800 | 12 |
M-15/400 | 15 | 40 | 5Grade | 740 | 250 | 5200×3200×1800 | 12 |
M-15/500 | 15 | 50 | 5Grade | 740 | 250 | 5200×3200×1800 | 12 |
M-20/100 | 20 | 10 | 5Grade | 740 | 280 | 5500×3200×1800 | 13 |
M-20/200 | 20 | 20 | 5Grade | 740 | 280 | 5500×3200×1800 | 13.5 |
M-20/350 | 20 | 35 | 5Grade | 740 | 350 | 5500×3200×1800 | 13.5 |
M-20/400 | 20 | 40 | 5Grade | 740 | 350 | 5500×3200×1800 | 13.5 |
M-20/500 | 20 | 50 | 5Grade | 740 | 350 | 5500×3200×1800 | 13.5 |
