PFC-25, PFC-50, PFC-100, PFC-150
LUSHUN
PFC-25, PFC-50, PFC-100, PFC-150

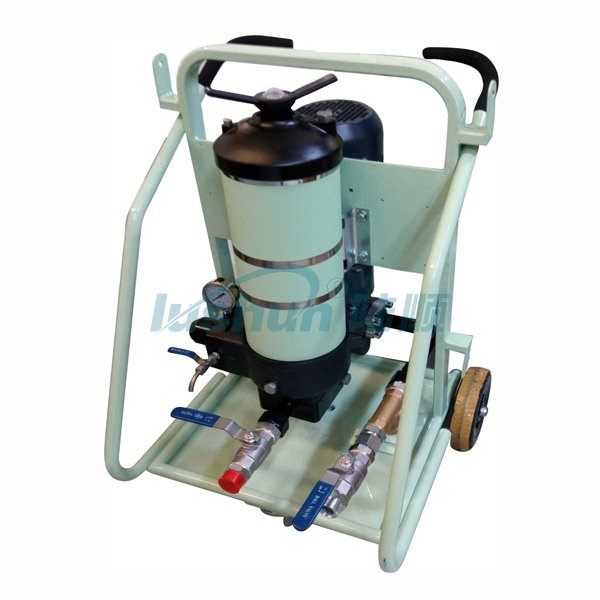

PFC Series High Precision Oil Filter Cart
Application
PFC series high precision oil filter cart is widely applied in industries such as metallurgy, electricity, chemical engineering, and engineering machineries to remove solid particles efficiently from various oil liquids like lubricating oil, hydraulic oil, insulating oil, turbine oil, fire resistant oil, water glycol and so on, thus to guarantee the quality and cleanliness of oil.
Advantages
●Fast and efficient solid pollutant removal, βx≥1000;
●A wide range of filter accuracy is available;
●With bypass valve to avoid system cutoff;
●With defensive open phase or default phase function to the motor of oil pump;
●With a coarse strainer at the port of oil inlet to safeguard the oil pump;
●With pressure difference alarm to indicate filter cartridge replacement;
●With an oil collecting tray to avoid the environment protection;
●With an accessorial wheel at the front to make its movement more flexible and portable;
●Its oil pump is equipped with a safety valve which can realizes unloading when the outlet valve is not open and mistakenly started.
Technical Specifications
Model Number | PFC-25 | PFC-50 | PFC-100 | PFC-150 | |
Applicable Medium | Oil liquids such as fire resistant oil, lubricating oil, hydraulic oil, insulating oil, turbine oil, water glycol, etc. | ||||
Rated Flow (L/min) | 25 | 50 | 100 | 150 | |
Motor Power (Kw) | 0.75 | 1.5 | 3 | 4 | |
Medium Viscosity (cSt) | <300 | ||||
Power Supply (V/Hz) | 380/50 | ||||
Working Temperature (℃) | 0~80 | ||||
Rated Pressure (MPa) | ≤0.8 | ||||
Filtration Precision (μm) | 1(3、5、7、12、22) | ||||
Overall Dimension (mm) | 600×550×860 | 700×650×900 | 800×650×1400 | 800×650×1400 | |
Net Weight (Kg) | 65 | 115 | 160 | 165 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
PFC Series High Precision Oil Filter Cart
Application
PFC series high precision oil filter cart is widely applied in industries such as metallurgy, electricity, chemical engineering, and engineering machineries to remove solid particles efficiently from various oil liquids like lubricating oil, hydraulic oil, insulating oil, turbine oil, fire resistant oil, water glycol and so on, thus to guarantee the quality and cleanliness of oil.
Advantages
●Fast and efficient solid pollutant removal, βx≥1000;
●A wide range of filter accuracy is available;
●With bypass valve to avoid system cutoff;
●With defensive open phase or default phase function to the motor of oil pump;
●With a coarse strainer at the port of oil inlet to safeguard the oil pump;
●With pressure difference alarm to indicate filter cartridge replacement;
●With an oil collecting tray to avoid the environment protection;
●With an accessorial wheel at the front to make its movement more flexible and portable;
●Its oil pump is equipped with a safety valve which can realizes unloading when the outlet valve is not open and mistakenly started.
Technical Specifications
Model Number | PFC-25 | PFC-50 | PFC-100 | PFC-150 | |
Applicable Medium | Oil liquids such as fire resistant oil, lubricating oil, hydraulic oil, insulating oil, turbine oil, water glycol, etc. | ||||
Rated Flow (L/min) | 25 | 50 | 100 | 150 | |
Motor Power (Kw) | 0.75 | 1.5 | 3 | 4 | |
Medium Viscosity (cSt) | <300 | ||||
Power Supply (V/Hz) | 380/50 | ||||
Working Temperature (℃) | 0~80 | ||||
Rated Pressure (MPa) | ≤0.8 | ||||
Filtration Precision (μm) | 1(3、5、7、12、22) | ||||
Overall Dimension (mm) | 600×550×860 | 700×650×900 | 800×650×1400 | 800×650×1400 | |
Net Weight (Kg) | 65 | 115 | 160 | 165 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
