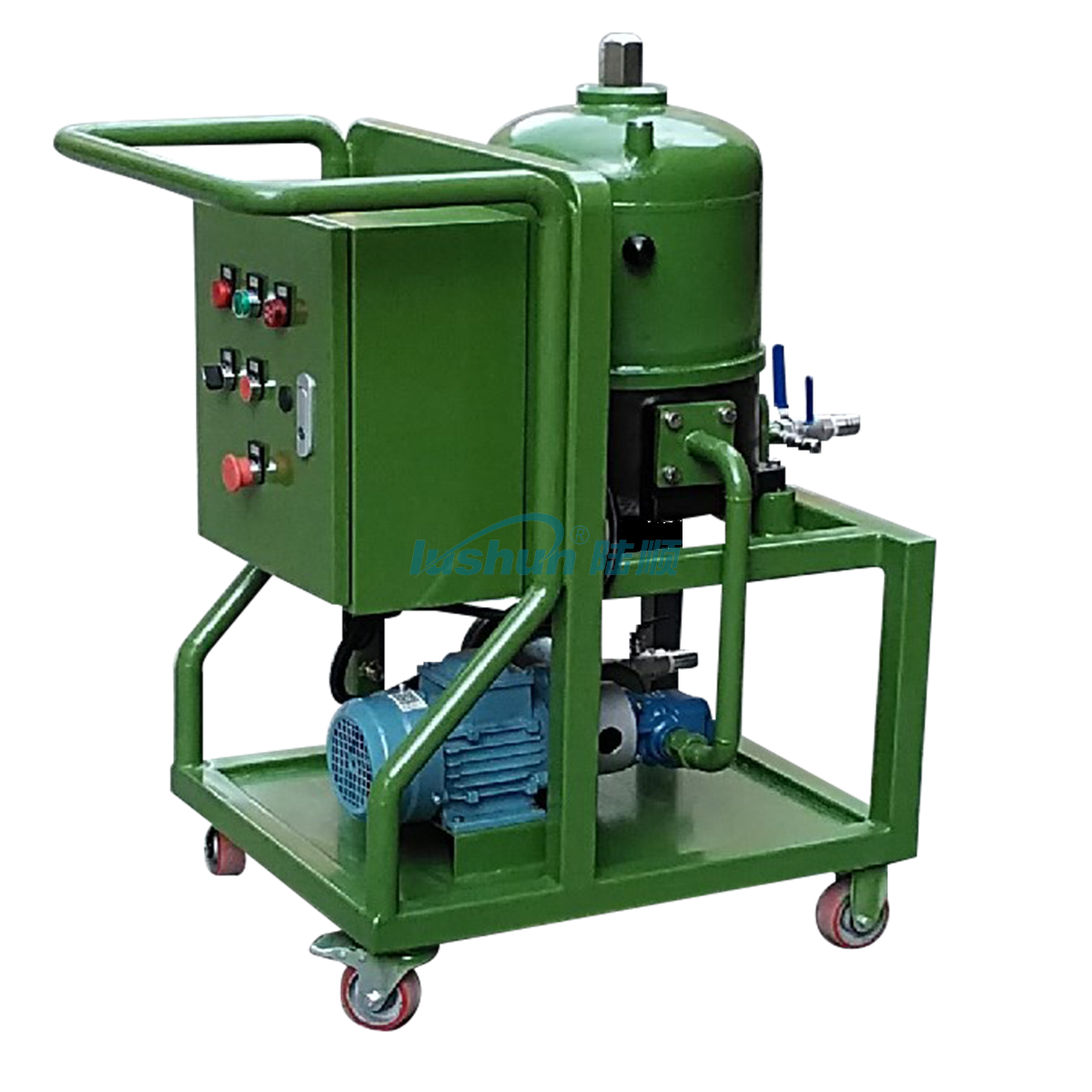

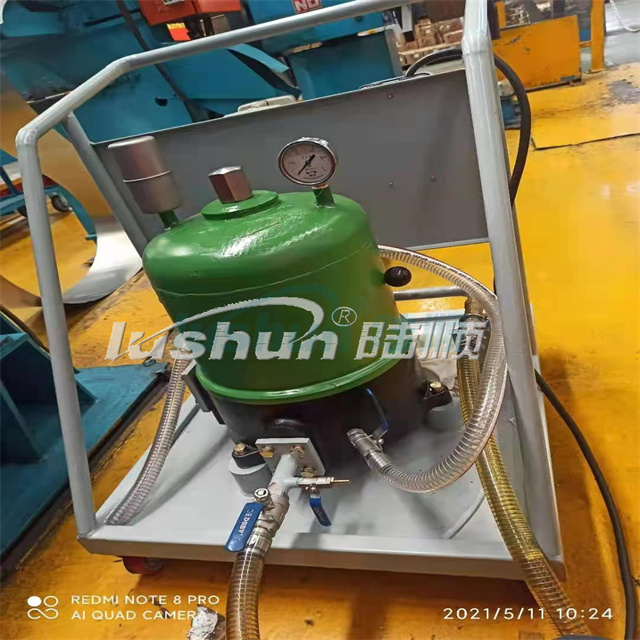

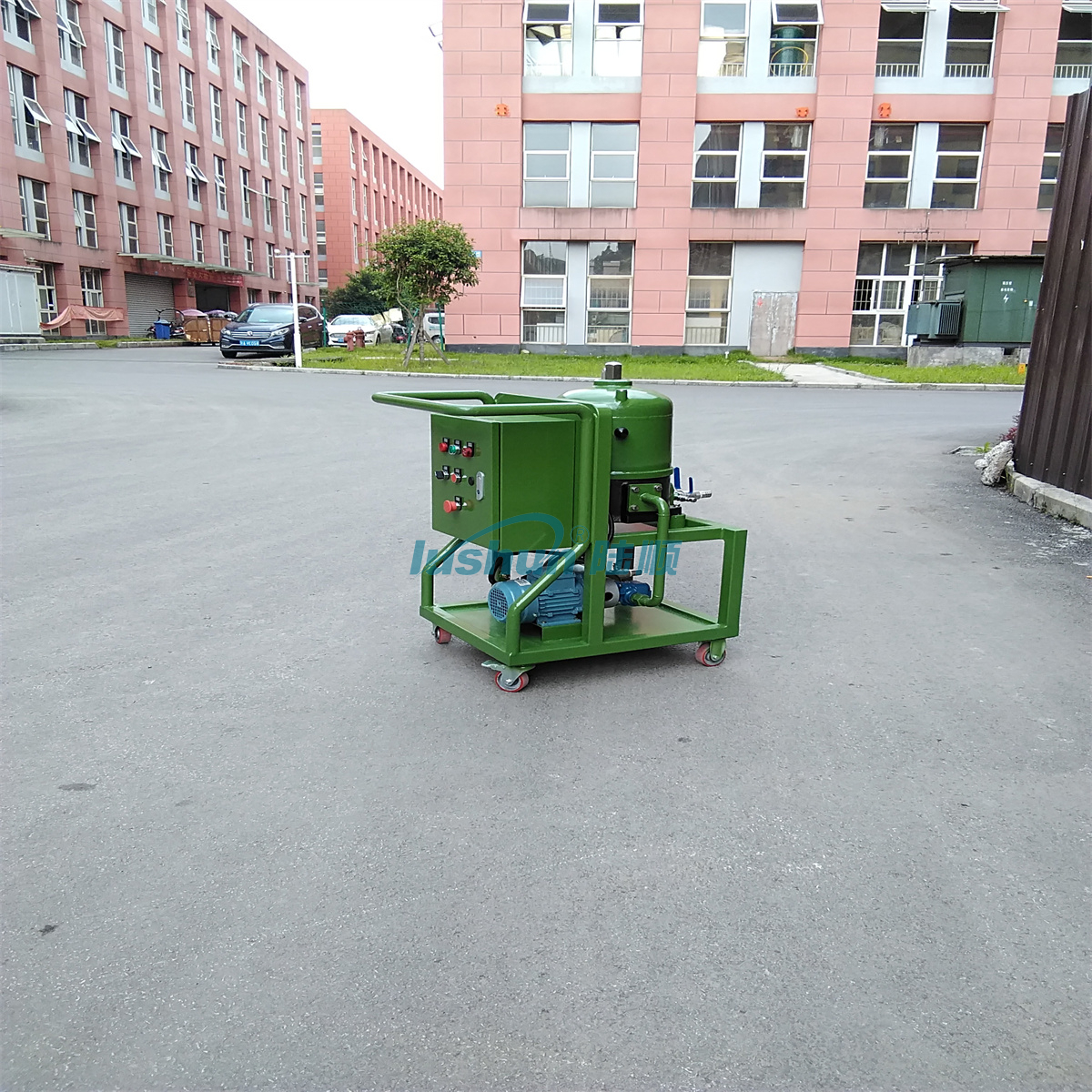

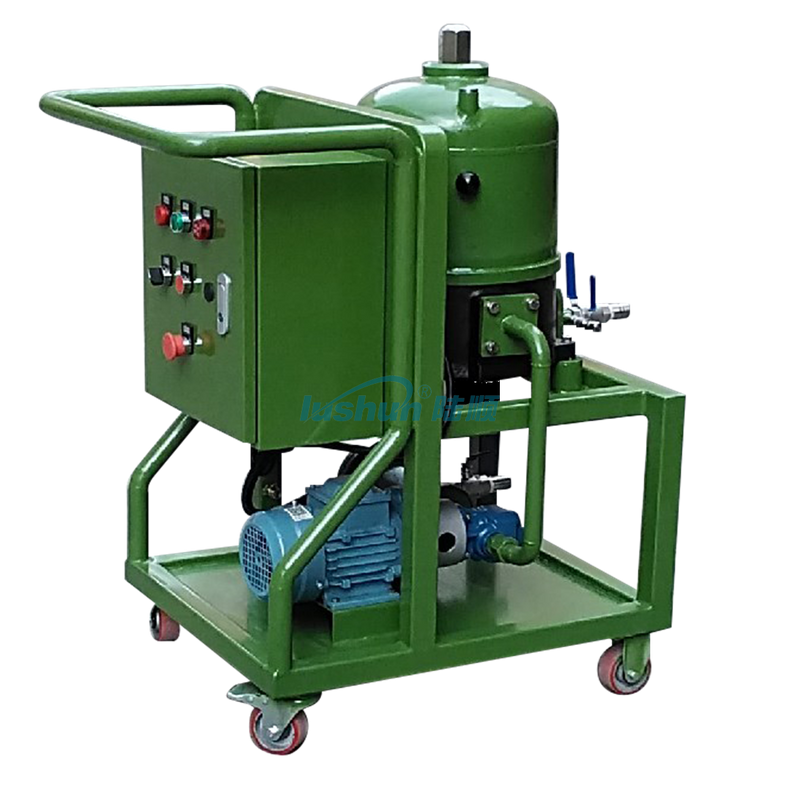

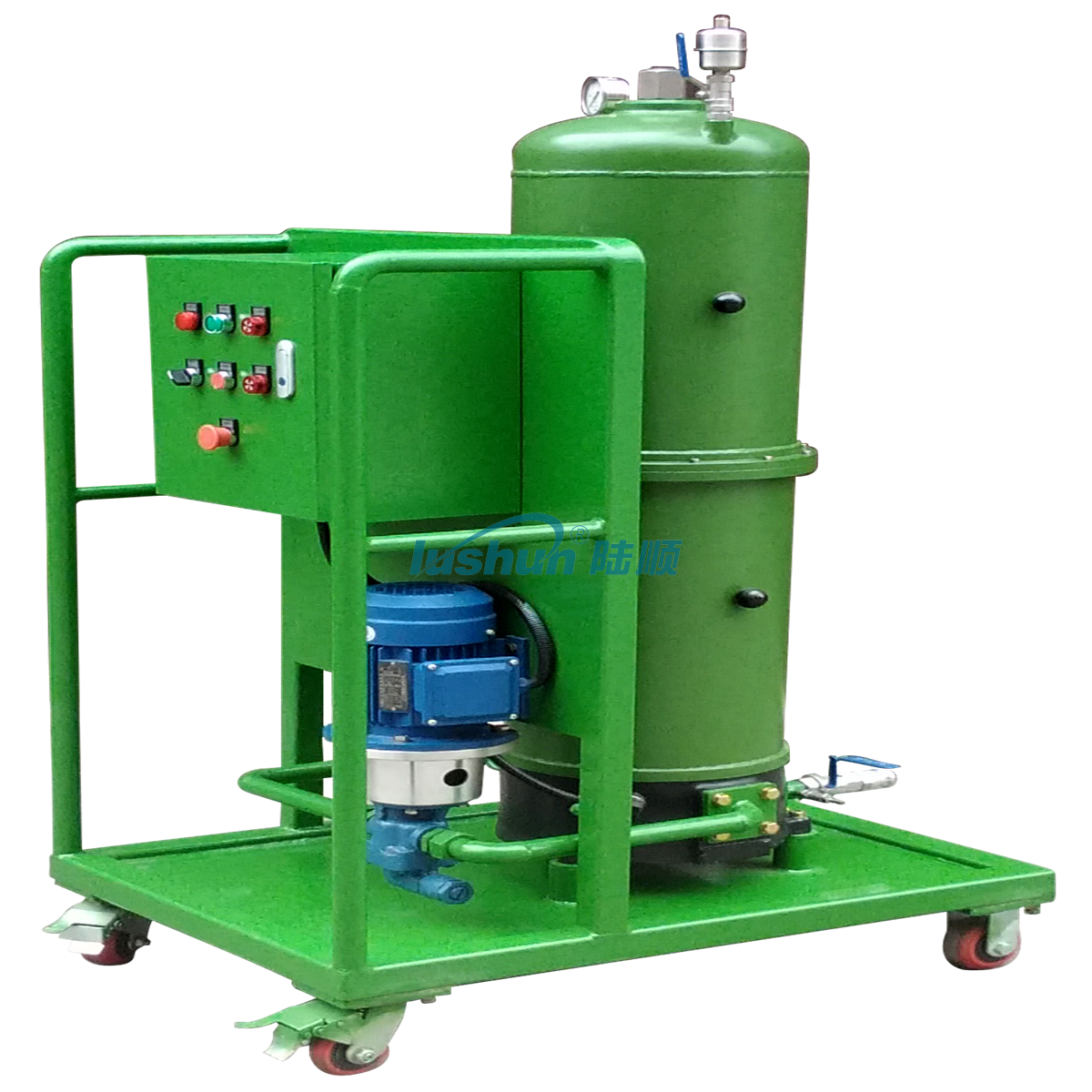

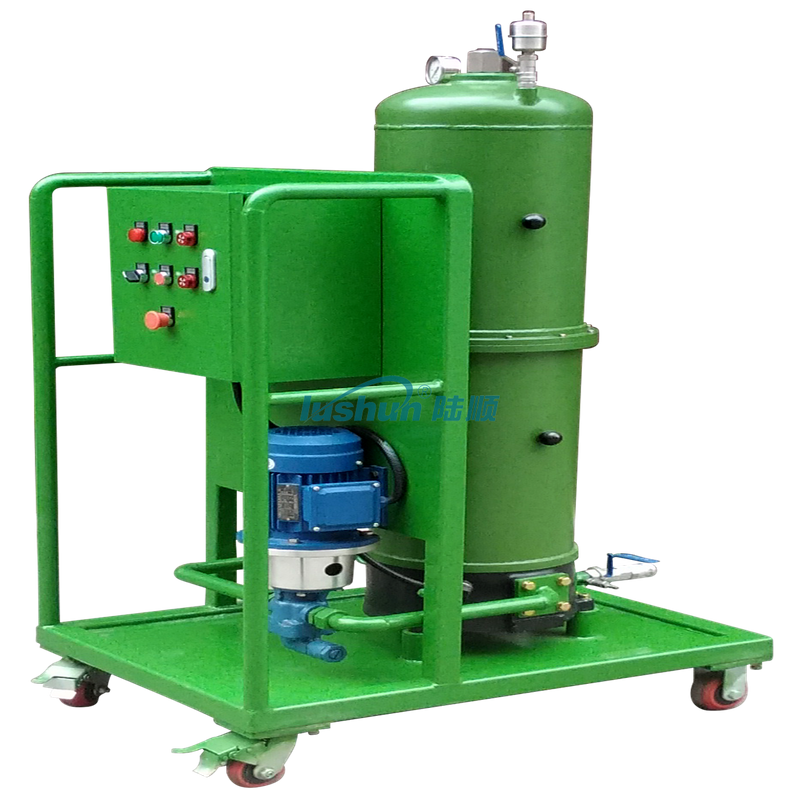

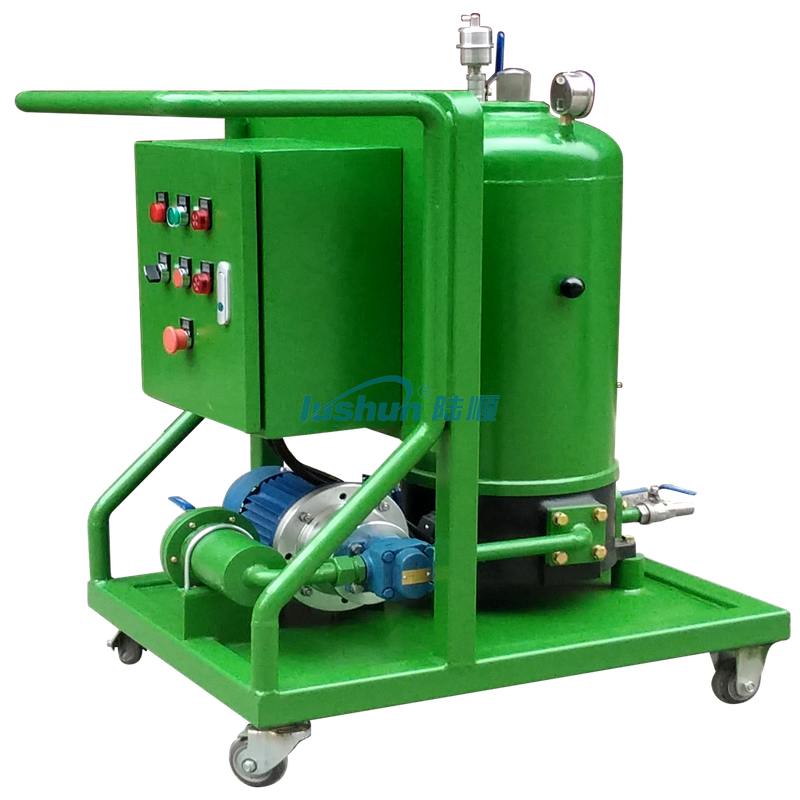

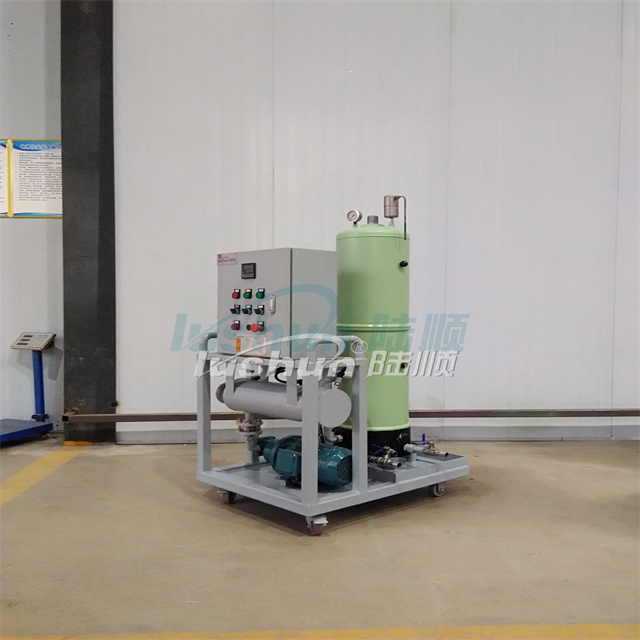

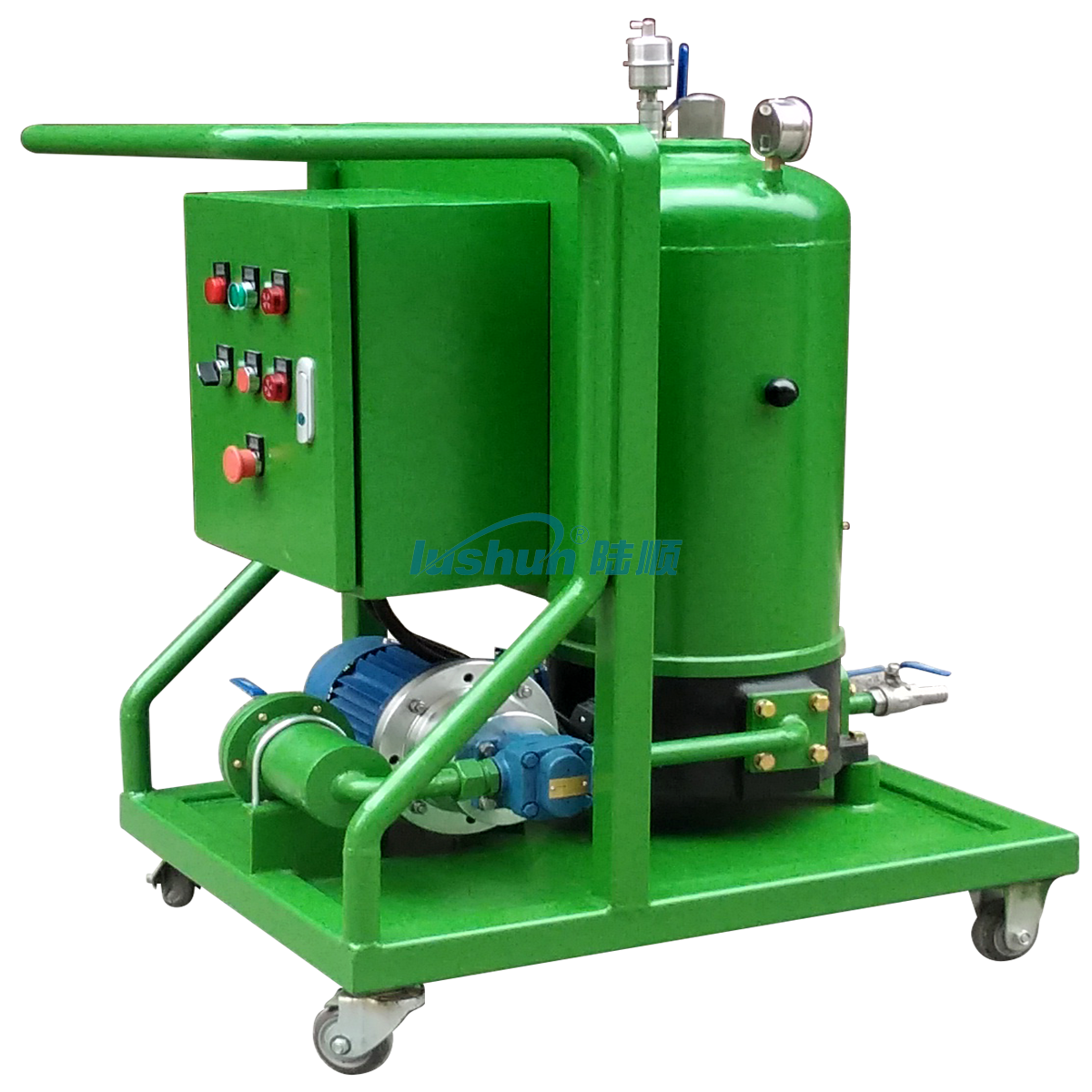

CJC SERIES HIGH PRECISION PURIFIER
Application 1:

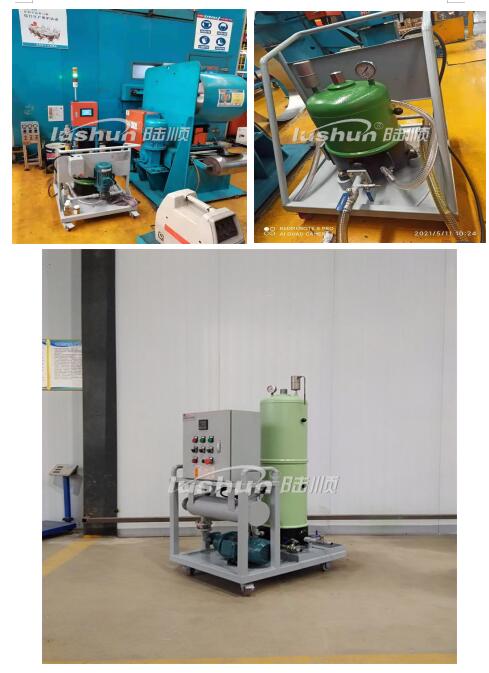

CJC（PUR） Series High Precision Oil Purifiers are used to filter quenching oil. Due to the influence of production environment and process conditions, quenching oil will always be subjected to serious pollution caused by surface protectant, solid particles, carbon deposition, oil oxidation degradation substances, oxides, the dust and other impurities brought in by the workpieces, resulted in following negative effects, such as changing the quenching characteristics of the oil, dirty workpieces surface, massive oil sludge accumulating at the bottom of the oil tank, affected safety monitoring system, and seriously polluted heat exchanger), results in serious consequences (such as extra cleaning for workpieces and oil tanks, components surface cracking, failure of metallographic structure of components, extreme wear of shot-blasting, unstable quenching performance). The CJC Series High Precision Oil Purifier can continuously remove carbon black, oil sludge, particulates and water content in quenching oil.
The results of quenching oil purification are as follows: meet the requirements of element heat treatment, improve element surface quality; greatly reduce follow-up treatment; quench oil tank is cleaner; ensure stable cooling characteristics of oil products; maintain clean heat exchanger and transmission device.
Application 2:
CJC(PUR) Series High Precision Oil Purifier are widely used for oil storage tank, cement factory gear box, coal mill oil tank in thermal power plant, wind power gear box, oil tank with many contaminants in hydraulic system, engine lubricating oil tank, to filter carbon deposition, particulates, water and oil degradation in hydraulic oil, gear oil, lubricating oil and diesel fuel oil.
Advantages:
● Particles Removal: all filter element filtration accuracy is 3 micron. 98.7% (approximately 100%) for 3 micron particulate matter interception, 50% for 0. 8 micron particulate matter interception.
● Moisture Absorption: cellulose fibers in the filter elements can absorb moisture from the oil.
● Oxide Removal: the polar fiber in the filter elements can adsorb lacquer, sludge and acid in oil.
● Acid Removal: filter element of special material neutralize acidic substances in oil.
● The filter element of the high precision purifier needs to be replaced at least once a year, or the filter should be replaced when the indicator of the pressure gauge indicates that the pressure exceeds 2 bar.
● A single filter element is with 4 kg of pollutant holding capacity, 2 liters of water absorption, using natural cellulose materials.
Configuration Option:
● In combination with centrifugal type oil purifier, impurities with higher density than that of oil can be removed to reduce the use cost of the filter element of the high precision purifier.
● Combined with vacuum oil purifier, a large amount of free water and emulsified water can be removed.
Economic Profit:
● Increase uptime of the system; reduce maintenance costs.
● Reduce downtime and shutdown caused by system failure; improve operation accuracy.
Reduced Maintenance:
● Improve the reliability of the equipment operation and prolong the service life of the online filter elements.
● Reduce wear and tear, while prolonging the service life of system components and oils.
Environmental Benefit:
Less oil exchange frequency; reduce new oil filling; reduce waste oil, protect the environment.
Technical Specification:
Model | Flow Rate(L/min) | Filter Model | Qty of Filter(Pcs) | Water Absorption of Filter(L) | 外形尺寸Over Size(mm) | |
PUR15/27 | 2 | 15/27 | 1 | 2 | 1 | 750×500×950 |
PUR27/27 | 6 | 27/27 | 1 | 4 | 2 | 850×600×1000 |
PUR27/54 | 12 | 27/27 | 2 | 8 | 4 | 900×700×1500 |
PUR27/81 | 18 | 27/27 | 3 | 12 | 6 | 484×385×1345 |
PUR27/108 | 24 | 27/27 | 4 | 16 | 8 | 1000×875×1400 |
PUR427/54 | 48 | 27/27 | 8 | 32 | 16 | 1300×900×1300 |
PUR427/81 | 72 | 27/27 | 12 | 48 | 24 | 1300×900×1600 |
PUR527/81 | 90 | 27/27 | 15 | 60 | 30 | 1400×1000×1600 |
■Above size and weight are for reference only, the specific data shall be subject to physical object.
