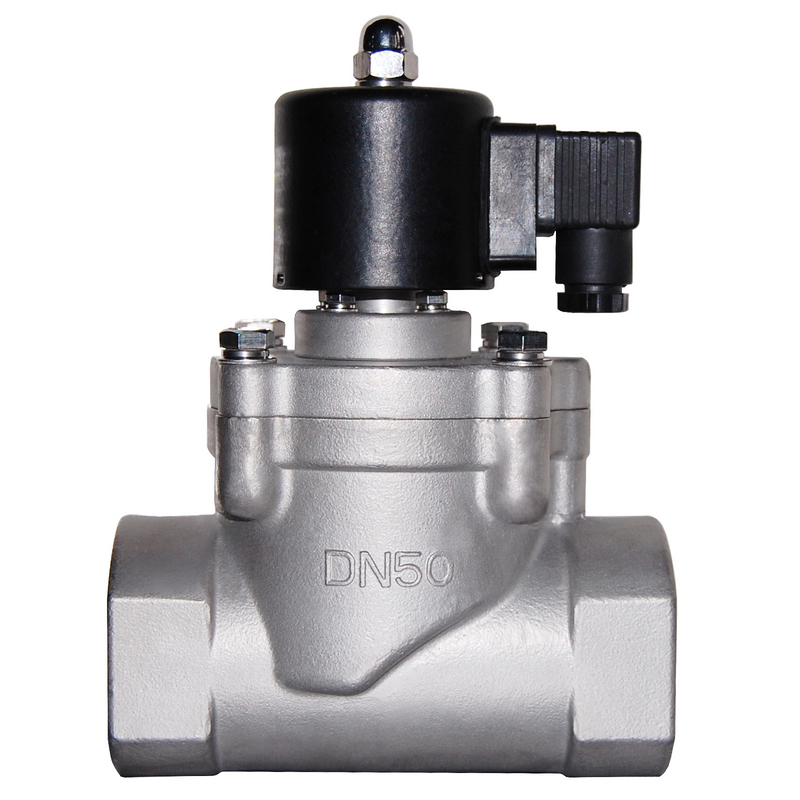

Pilot Solenoid Valve
Range of use:steam system,high pressure system,cryogenic system,Petroleum system
Filling system,liquefaction system,heating system,Storage system,Power plant equipment,Petrochemical equipment,Pneumatic equipment,Pipeline
automatic control engineering Technique parameter:
The principle structure:step piston type Size range:DN1~600
The ambient temperature:-10~+50℃、-30~+85℃、-50~+100℃ Control mode:normally open .normally close
Working voltage:AC660V,AC380V,AC220V,AC127V,AC36V,AC24V,
DC220V,DC110V,DC36V,DC24V,DC12V Medium:water,gas,oil etc.
Medium temperature:>-200℃、>-60℃、>-40℃、<+60℃、<+120℃、<+200℃、<+350℃
The pressure:0.03-0.6MPa,0.03-1.6MPa,0.03-2.5MPa、0.03-4.0MPa、0.03-5.0MPa、0.03-6.4MPa Connection:thread,flange,welding Wiring:plastic box plug,iron cover of lead
Body material:WCB stainless steel(304、321、316、316L、316H、2025),Brass,bronze Electricalinterface:can be customized

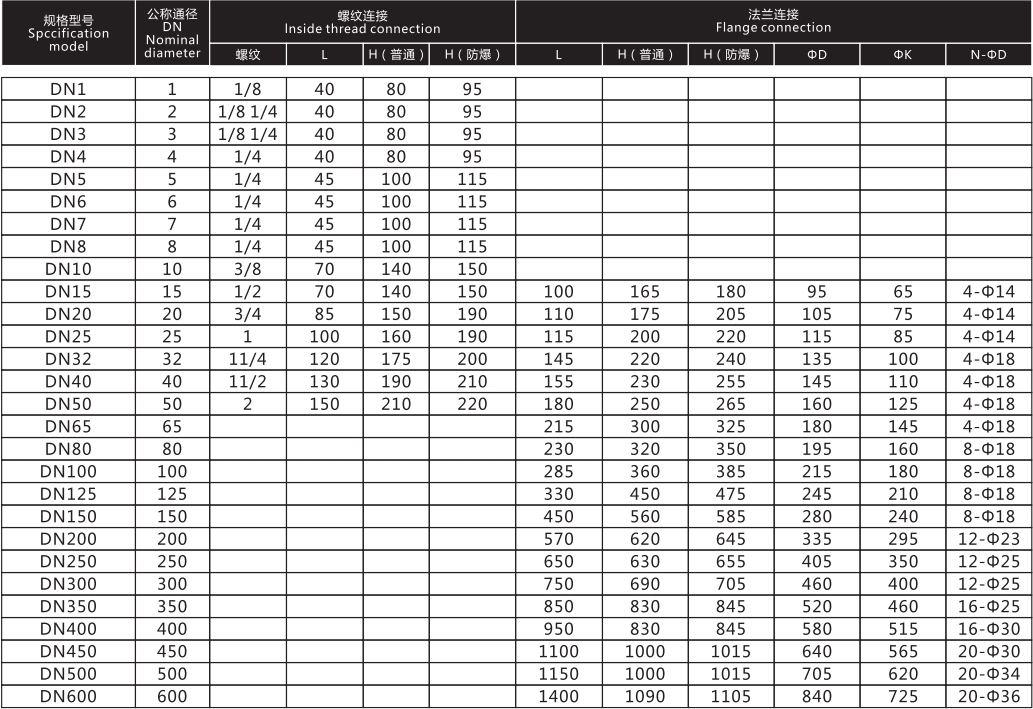

Specification parameter and fixing dimension
Pilot Solenoid Valve
Range of use:steam system,high pressure system,cryogenic system,Petroleum system
Filling system,liquefaction system,heating system,Storage system,Power plant equipment,Petrochemical equipment,Pneumatic equipment,Pipeline
automatic control engineering Technique parameter:
The principle structure:step piston type Size range:DN1~600
The ambient temperature:-10~+50℃、-30~+85℃、-50~+100℃ Control mode:normally open .normally close
Working voltage:AC660V,AC380V,AC220V,AC127V,AC36V,AC24V,
DC220V,DC110V,DC36V,DC24V,DC12V Medium:water,gas,oil etc.
Medium temperature:>-200℃、>-60℃、>-40℃、<+60℃、<+120℃、<+200℃、<+350℃
The pressure:0.03-0.6MPa,0.03-1.6MPa,0.03-2.5MPa、0.03-4.0MPa、0.03-5.0MPa、0.03-6.4MPa Connection:thread,flange,welding Wiring:plastic box plug,iron cover of lead
Body material:WCB stainless steel(304、321、316、316L、316H、2025),Brass,bronze Electricalinterface:can be customized
Specification parameter and fixing dimension
