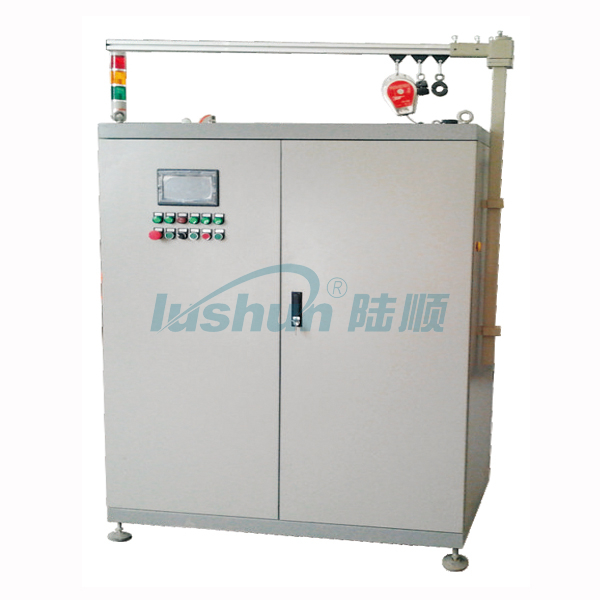

RDJ Series Lubricating Oil Quantitative Filling Machine
Application:
RDJ Series Lubricating Oil Quantitative Filling Machines are particularly used for filling lubricating oil to various subassembly of devices, work-pieces, compressors, refrigerators, engineering machineries, hydraulic system, cylinders, and oil tanks which requests quantitative oil filling.
Main Technical Index:
● Liquid media: engine oil, gearbox oil, hydraulic oil, rear axle gear oil, compressor oil, etc.
● Unit Of Filling Measurement: L.
● Filling precision: ±0.5%
● Filling Meter Indication Range: 0.000~999.999
● Filling Pressure: 0.1MPa ~ 1 MPa (for reference and adjustable.)
● Filling Flow Rate Range: 1~18L /min (oil temperature 25 ℃)
● Oil Supply Method: automatic oil drum supply or centralized oil supply.
● Working Pressure Of Compressed Air Source: 0.4MPa~0.8MPa.
● Consumption Of Compressed Air: ＜0.3m3/min (0.5MPa)
● Cycle Time Of Filling Process: 18L＜120s (Note: this is total process time index when the length of filling pipeline ≤ 10m.)
Main Components:
This quantitative lubrication oil filling machine is mainly made up of computer-control system, electric power control system, oil filling system, gas circuit controlling system, oil supply system, filling gun and pipeline system, etc.
Working Principle:
With electrical components controlled by PLC operation control system, this machine completes one cycle of quantitative oil filling process at constant pressure to containers which need to be filled. When it is running, the operating system supplements, fills oil, lasts constant temperature automatically as its preset program, and finishes the filling process at a high running speed.
