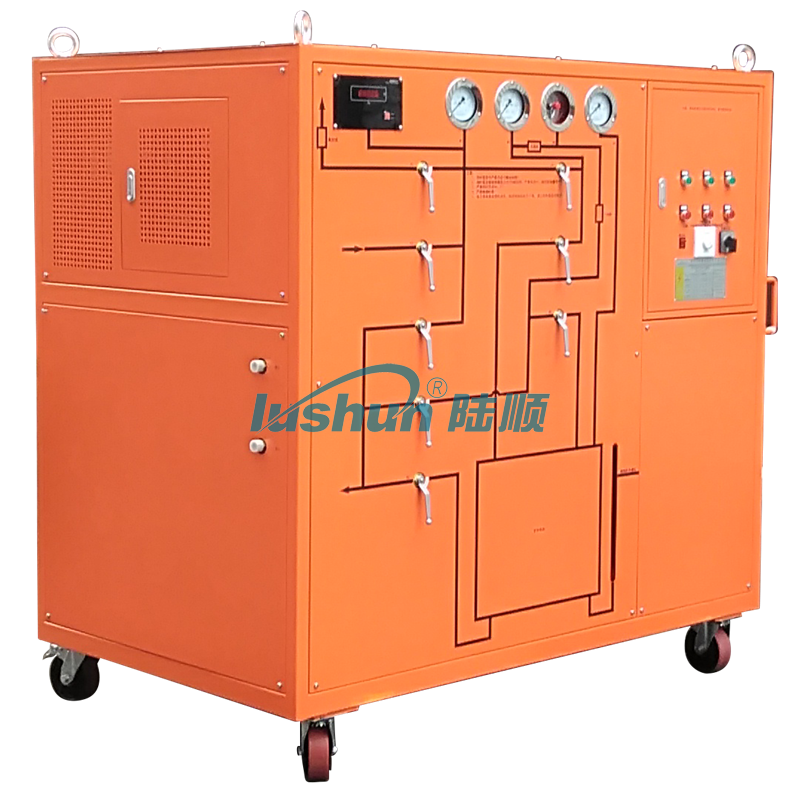

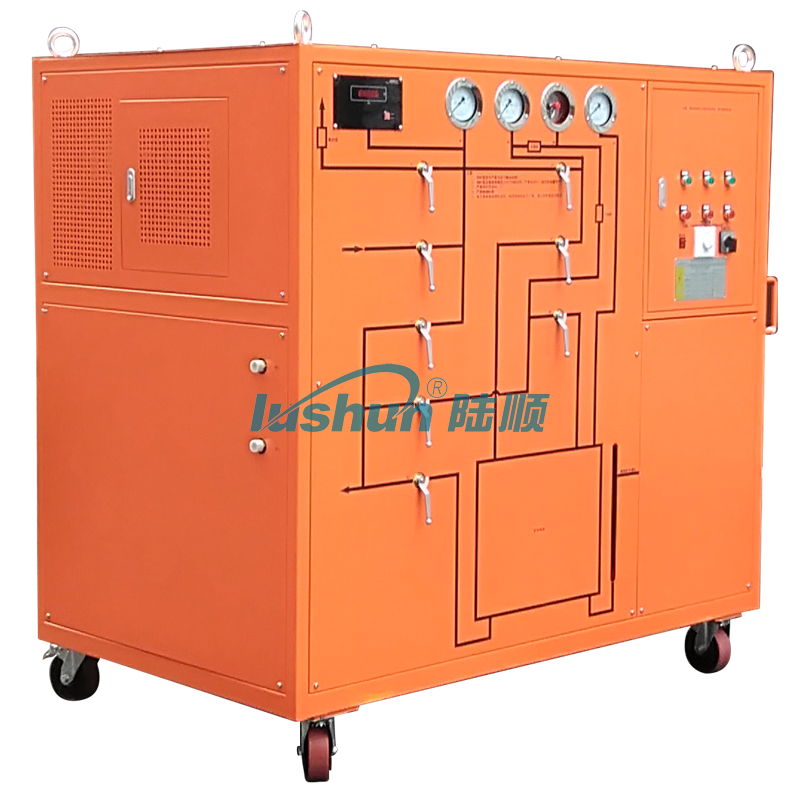

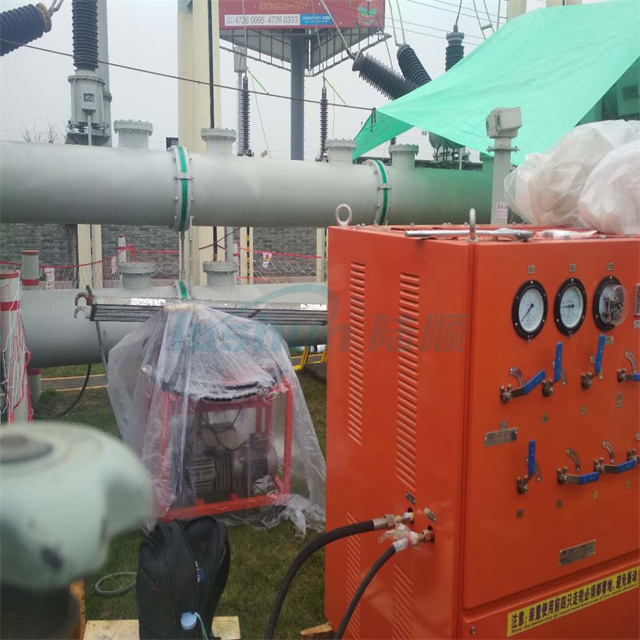

LH Series SF6 Regeneration Purification and Inflation Machine
Application

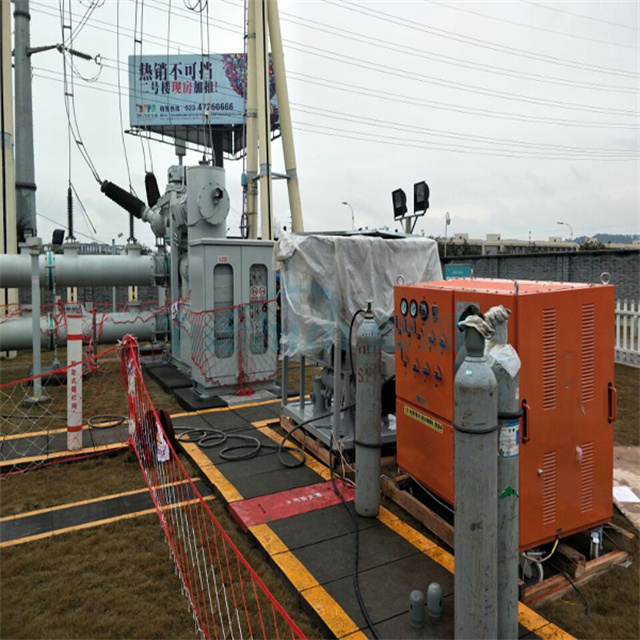

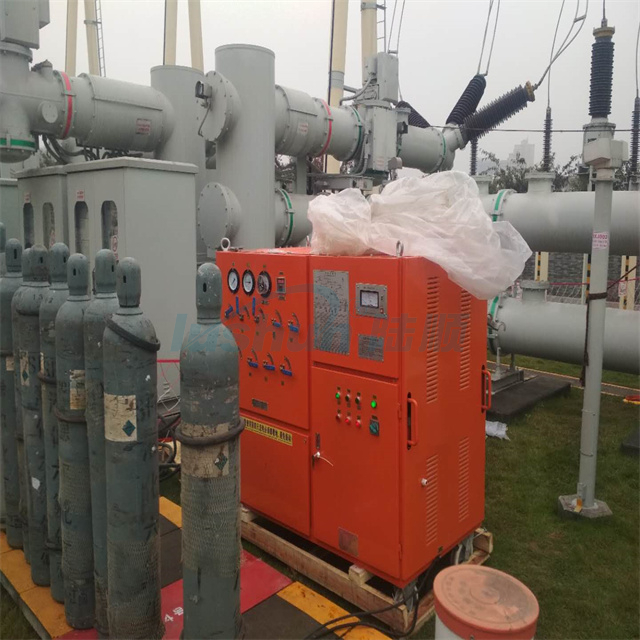

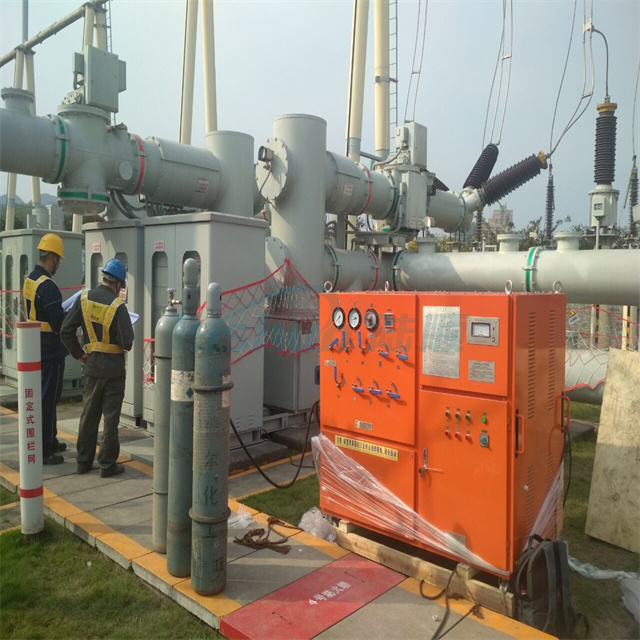

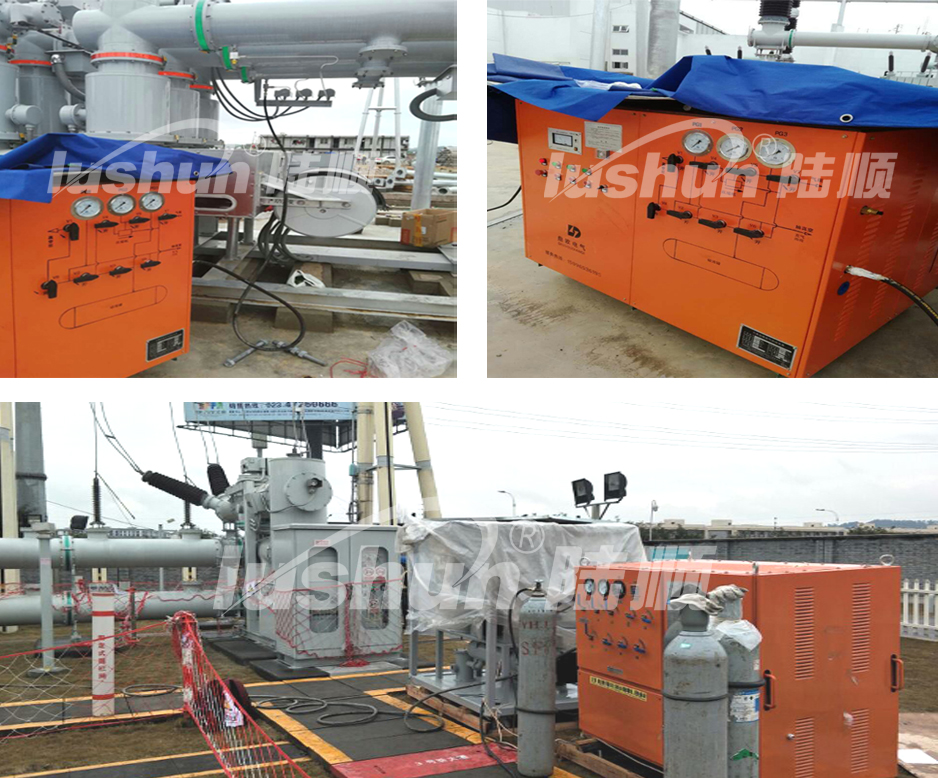

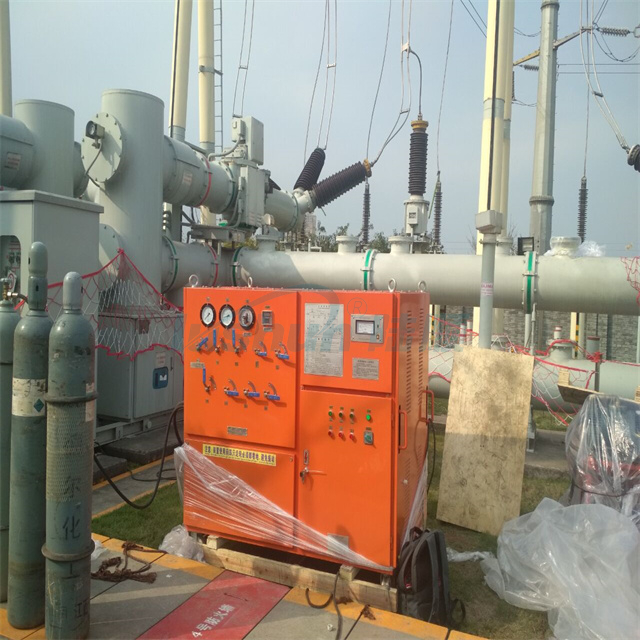

SF6 Gas Regeneration Purification And Inflation Machine is mainly used for sectors of SF6 electric appliance or switch manufacturer, power supply bureau, power transmission and distribution project company, hydropower construction company, research institutes and power plant etc. it is necessary equipment for manufacturing,installation and maintenance of high voltage transmission and distribution equipment. The product is developed by adopting Germany DILO technology and combined with rich experience of our company, foreign advanced compress-liquefaction technology,auxiliary freezing liquefaction theory and the latest patented technology. The equipment have full seven functions. (vacuum evacuation, regeneration, liquefaction, purification, storage, air-inflation and air filling).
Advantages
lAdopts Germany DILO system technology with advanced design, complete functions, rational construction and easy operation.
lRegeneration system adopts bipolar single-acting compressor with foreign compression technique which can compress SF6 to liquid and storage it into storage tank directly. We can also adopt freezing liquefaction method of American Copeland refrigerant compressor Unit to reduce the system operation pressure and recycle SF6 gas quickly without oil.
lVacuum evacuation system adopts domestic or imported twin-stage rotary-van vacuum pump with fast vacuum rate and also equipped with oil back-flow prevention device for the vacuum pump.
lRecycling pressurization system adopts vacuum recycler with low recycling residual pressure and fast speed.
lFiltration system adopts America Pioneer principle filter. The filter is equipped with build-in vacuum electrical heating and built-in high efficient absorption agent to make the filtration performance much better ( no need change agent frequently)
lControl system adopts SF6 gas special valve.
lStorage system can be customized with various capacity as per users’ request.

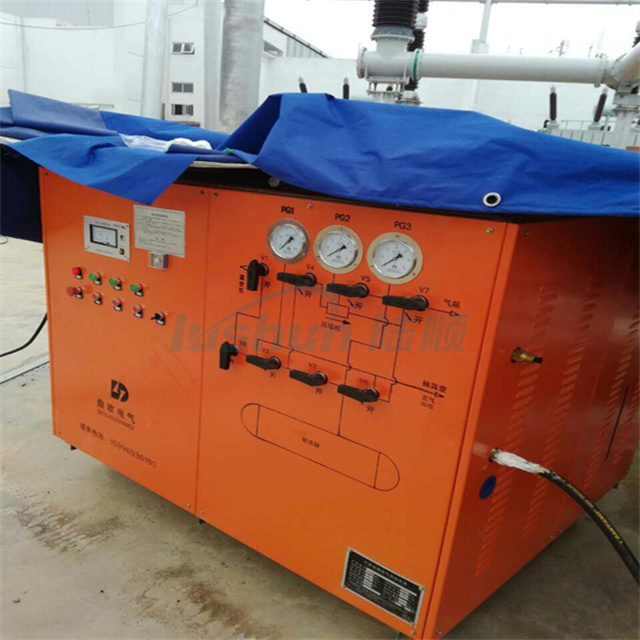

lAll control functions are concentrated on the front of machine with clear interface and convenient operation.
Technical Specification
Index | Unit | LH-16Y-15 | LH-22Y-15 | LH-22Y-30 | LH-38Y-30 |
Limited Vacuum Degree | Pa | ＜10 | |||
Vacuum Pump Capacity | m³/ h | 54 | 54 | 108 | 108 |
Compression Recycling Rate | m³/h | 16 | 22 | 22 | 38 |
Air Inflation Capacity | m³/h | ＞6 | |||
Recycling Initial Pressure | Mpa | ≤0.8 | |||
Recycling End Pressure | Kpa | 1~5( or as user’s requirements) | |||
Yearly Leakage Rate | % | ＜1 | |||
Maximum Design Pressure | Mpa | 4.0(or as user’s requirements) | |||
Spec of Storage Tank | m³ | 0.05m³, 0.1m³, 0.2m³, 0.4m³, 0.06m³, 1m³ (or as user’s requirements) | |||
Dry Regeneration and Filtration Mode | - | Vacuum heating activated regeneration | |||
Power Supply | V | 380V/50HZ | |||
Net Weight | kg | 900 | 1000 | 1200 | 1300 |
Dimension | cm | 170×108×168 | 172×110×170 | 180×120×172 | 186×122×178 |
■ Above mentioned weight and size are for reference only, the specific data shall be as per the standard of real goods.
■ Besides above series regeneration device, we can also design and manufacture special models as per user’s requirement.
