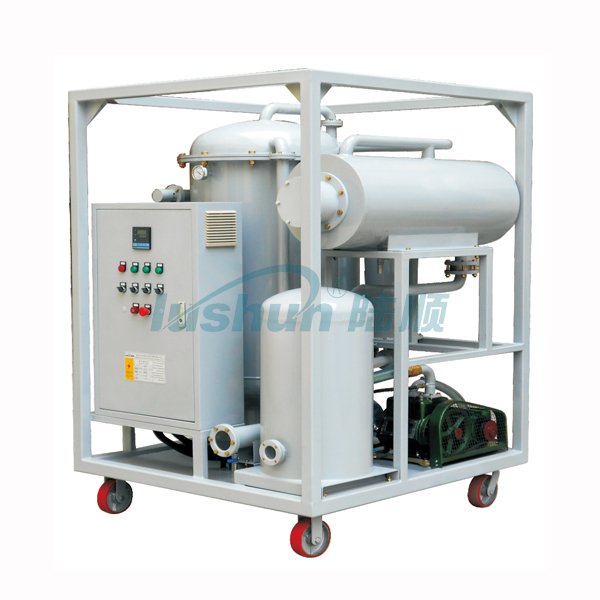

TY Series Vacuum Turbine Oil Purifier

TY Series Vacuum Turbine Oil Purifier

Application

TY series are applies to thermal power generating set, hydro electric generating set, nuclear power station and steam turbine set in which turbine oil is used in huge quantity. The machine can purify the oil in due time before it is deteriorated. Furthermore, TY machine can treat oil with gas and water, deteriorated oil, oil with acid, oil with foam and emulsified oil to efficiently remove the water, gas and impurities in that. By this way, the machine ensures the oil properties to meet the requirements of GB/T7596-2000 Turbine Oil Standard and to guarantee normal working of turbine generating set and its lubricating system. TY series turbine oil purifier can conduct online operation of demulsification, dehydration and filtration to make the heavily emulsified and cloudy turbine oil clean and transparent.

Advantages

●Adopts three-dimensional flash evaporation technique to get strong ability to break emulsion and remove water from the oil.

●Adopts the latest Chinese and international technique which is integrated with gravity method, evaporation method, aggregation method, vacuum separation and mechanical filtration etc.

●High precision multi-stage filtration system with large pollutant-containing capacity helps to remove mechanical impurities in oil effectively. The machine also has function of automatically detecting the pollution degree of filter element.

●Advanced fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protecting system and excellent configuration can ensure operation of the equipment with high performance.

●Optimized heating system with automatic constant temperature controller ensures that oil temperature to be even and stable.

●Can be working online and onsite without supervision, and with its lamps indicative of operation status.

●With electrical control inter-lock design for oil inlet system and heating system to avoid bad influence of incorrect operation.

●It is humanization design with low noise, deep purification and long time free maintenance to save cost from the running process.

●Equipped with indication for changing filters and automatic stop device for overloaded filters.

●Equipped with emergency stop for electric leakage and power overload to protect the motor.

●With phase-sequence, phase lose protection function and safety control for sudden shut-down.

Optional Customized Design as per Client’s Requirements

●Optional PLC intelligent control with touch screen operation and operation status dynamic display.

●Online moisture tester and online particle counter are available as optional components.

●The whole structure of the machine: mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle), fully enclosed style, conceal eaves type and open style of canvas etc.

Technical Specification

Index	Unit	LS-TY-20	LS-TY-30	LS-TY-50	LS-TY-100	LS-TY-150	LS-TY-200	LS-TY-300	LS-TY-500
Flow Rate	L/H	1200	1800	3000	6000	9000	12000	18000	30000
Vacuum Degree	MPa	-0.08～-0.098
Working Pressure	MPa	≤0.5
Temperature Range	℃	20～80
Power Supply	V	380V/50Hz(or as need)
Working Noise	dB(A)	≤75
Total Power	kW	24+3	24+3	30+5	40+5	72+5	90+6	120+10	120+16
Inlet/Outlet Diameter	mm	25	25	32	40	50	50	65	80
Weight	Kg	450	470	550	750	1000	1100	1200	1800
Dimension（L×W×H）	cm	105×120×160	105×120×160	110×130×170	125×145×190	200×187×210	200×187×210	210×190×225	220×190×225
Water Content	mg/L	≤100(GB/T7600）
Acid Value	mgKOH/g	≤0.3(GB/T264)
Dimulsification Number	min	≤15 (GB/T7305)
Filtration Precision	μm	≤10

■ Above mentioned weight and size are for reference only, the specific data shall be as per the standard of real goods.

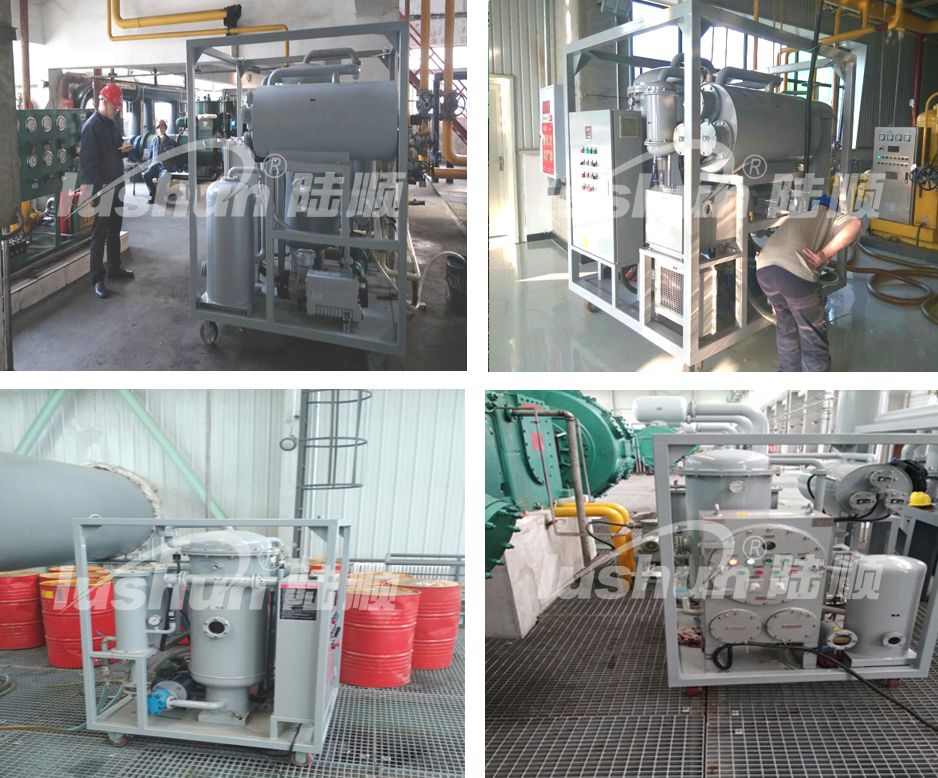

TY-2副本

微信截图_20240711160521 微信图片_202107231649261_副本微信截图_20240711135107

What damage is caused by water, gas and impurities in the oil?

Oil pump and power equipment are damaged by cavitation
Rapidly oxidizes and degrades the oil to form acidic substances and corrode metal contact surfaces
Lubrication, cooling, and reduced flow properties accelerate metal surface fatigue
Ice crystals formed at low temperatures block components and reduce system rigidity
What is Turbine Oil Filtration machine advantages?
The TY series of the turbine oil purifier machine is especially adaptable and suitable for handling turbine oil, hydraulic oil, refrigeration oil and other lubricating oils that require huge amount of water elimination and precise filtering functions.
It is mainly designed to purify the waste oils that have large water content and are seriously emulsified.
Strong performance in purifying impurities. It uses a filtering material that has a composite microporous structure that is corrosion-proof and heat-resistant. This is a durable and lasting device, with long-lasting usage, and the deeply-layered filtering elements within the large surface area are able to filter out the microscopic impurities from the oil content in deeper layers.
Strong capabilities in filtering water and demulsification. It easily separates huge volume of water from the oil, and filters out small volumes of water in the oil as well. With the usage of a strengthened hydrophilic and hydrophobic technology (water separation device and filter elements), it comprehensively alters the interactive performances of the two interfaces between oil and water, and accelerates the activity of small little water molecules, combining them together to form a bigger water molecule big enough to be separated from the oil content. This ensures that the cloudy and emulsifying oil becomes transparent and clear.

TY Series Vacuum Turbine Oil Purifier20、TY.pdf
