EATURES OF VF AR-COOLED SERIES
1.Installation method: the entire unit is installed as a single piece, with auxiliary equipment placed on the skid block for easy and neat installation.
2.Driving method: electric motor drive.

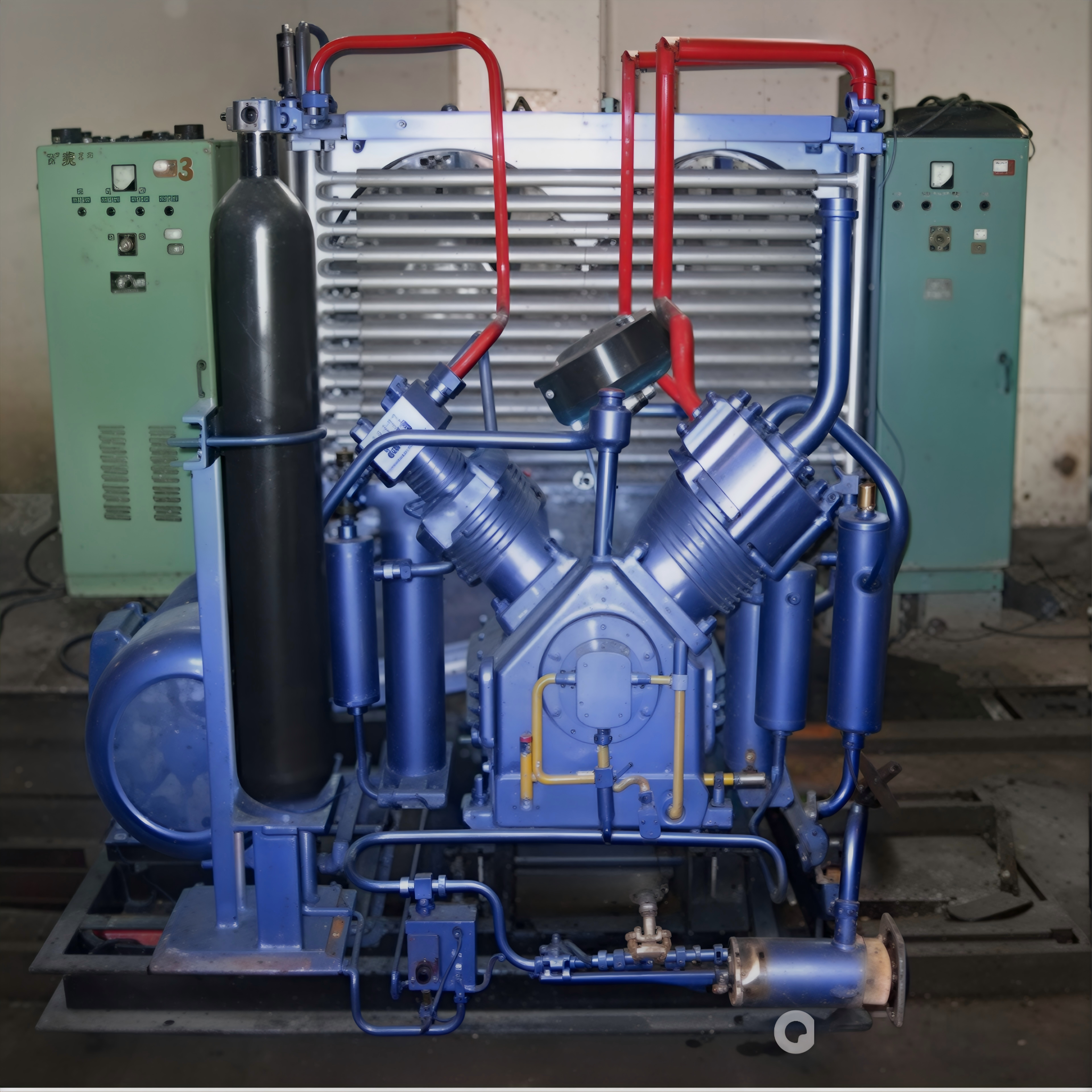

3.Overall Layout: The cylinders are arranged in a V-shape in two rows, using a differential piston technology, water-cooled, with a compact structure and small footprint.
4.Control system: The control system has a perfect automatic protection and control function. The starting mode can be Y-△ starting, auto-buck starting, etc., and automatic blowdown.
5.Main parameters: exhaust pressure 3-35Mpa, exhaust volume 0.35-3m³/min.
6.compression medium: suitable for air, nitrogen.
7.Application scenarios: widely used in hydropower, steel, diving rescue, scientific research special inspection and other fields.

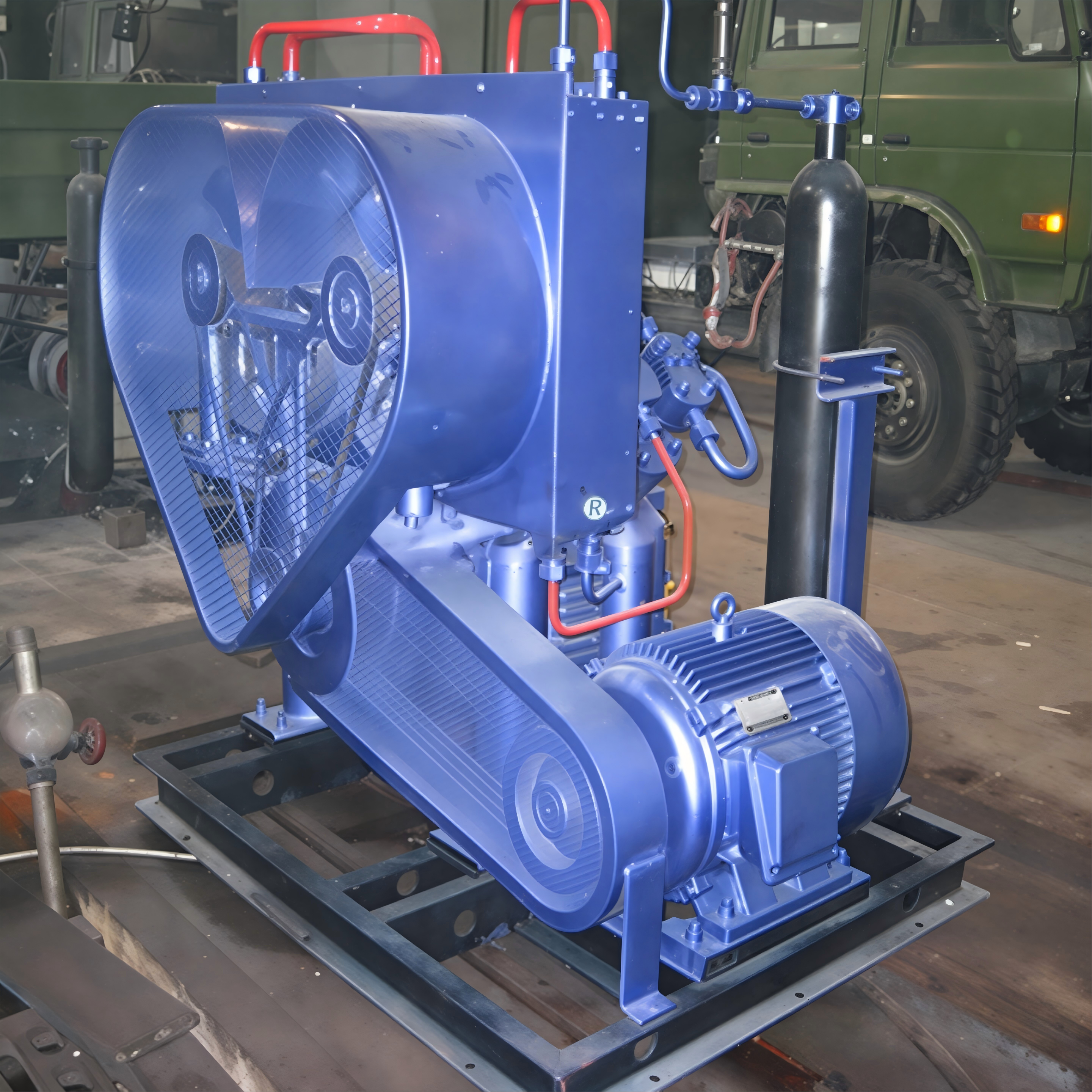

V SERIES AIR COOLED HIGH-PRESSURE ARCOMPRESSOR MODEL
Model | m³/min Gas Displacement
|
Discharge Pressure Mpa | Grade | Main engine speed r/min
| Motor Power KW
| Overall Dimensions
| Weight |
VF-1/150 | 1 | 15 | 4Grade | Belt Drive | 18.5 | 1700×1280×1350 | 1 |
VF-1/300 | 1 | 15~30 | 4Grade | Belt Drive | 22 | 1750×1290×1400 | 1.05 |
VF-1/350 | 1 | 30~35 | 5Grade | Belt Drive | 30 | 1750×1290×1400 | 1.1 |
VF-1/400 | 1 | 35~40 | 5Grade | Belt Drive | 30 | 1750×1290×1400 | 1.1 |
VF-1.5/300 | 1 | 15~30 | 4Grade | Belt Drive | 30 | 1750×1290×1400 | 1.1 |
VF-2/300 | 1 | 15~30 | 4Grade | Belt Drive | 45 | 1960×1410×1400 | 1.3 |
VF-2/500 | 1 | 50 | 5Grade | Belt Drive | 45 | 1960×1410×1400 | 1.3 |
VF-3/300 | 1 | 15~30 | 5Grade | Belt Drive | 75 | 2400×1660×1665 | 2.2 |
VF-3/400 | 1 | 30~40 | 5Grade | Belt Drive | 75 | 2400×1660×1665 | 2.2 |
VF-2/40 | 2 | 4 | 4Grade | 980 | 37 | 2650×2000×1500 | 2.4 |
VF-2/60 | 2 | 6 | 4Grade | 980 | 37 | 2650×2000×1500 | 2.4 |
VF-2/100 | 2 | 10 | 4Grade | 740 | 37 | 2650×2000×1500 | 2.7 |
VF-2/150 | 2 | 15 | 4Grade | 740 | 37 | 2650×2000×1500 | 2.7 |
VF-2/200 | 2 | 20 | 4Grade | 740 | 45 | 2650×2100×1500 | 2.85 |
VF-2/300 | 2 | 30 | 5Grade | 740 | 45 | 2750×2100×1500 | 2.85 |
VF-3/40 | 3 | 4 | 4Grade | 980 | 45 | 2700×2100×1500 | 2.8 |
VF-3/60 | 3 | 6 | 4Grade | 980 | 45 | 2700×2100×1500 | 2.8 |
VF-2/350 | 2 | 35 | 5Grade | 740 | 55 | 2650×2150×1500 | 2.8 |
VF-2/400 | 2 | 40 | 5Grade | 740 | 55 | 2650×2150×1500 | 2.8 |
VF-3/100 | 3 | 10 | 4Grade | 980 | 55 | 2650×2150×1500 | 2.95 |
VF-3/200 | 3 | 20 | 4Grade | 980 | 55 | 2700×2100×1550 | 3 |
VF-3/250 | 3 | 25 | 5Grade | 980 | 75 | 2700×2100×1550 | 3.3 |
VF-3/350 | 3 | 35 | 5Grade | 980 | 75 | 2700×2100×1550 | 3.3 |
VF-3/400 | 3 | 40 | 5Grade | 980 | 75 | 2700×2100×1550 | 3.3 |
