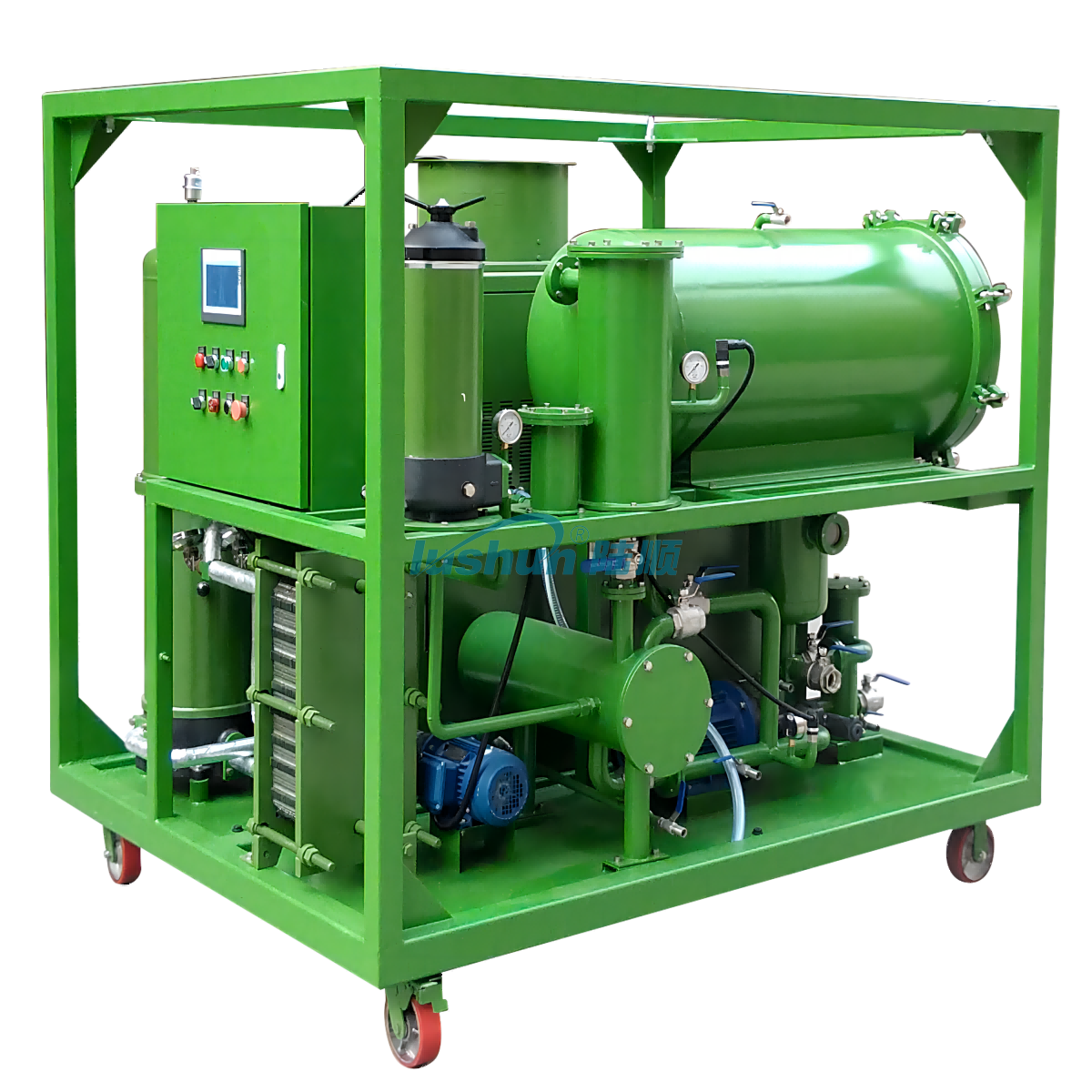

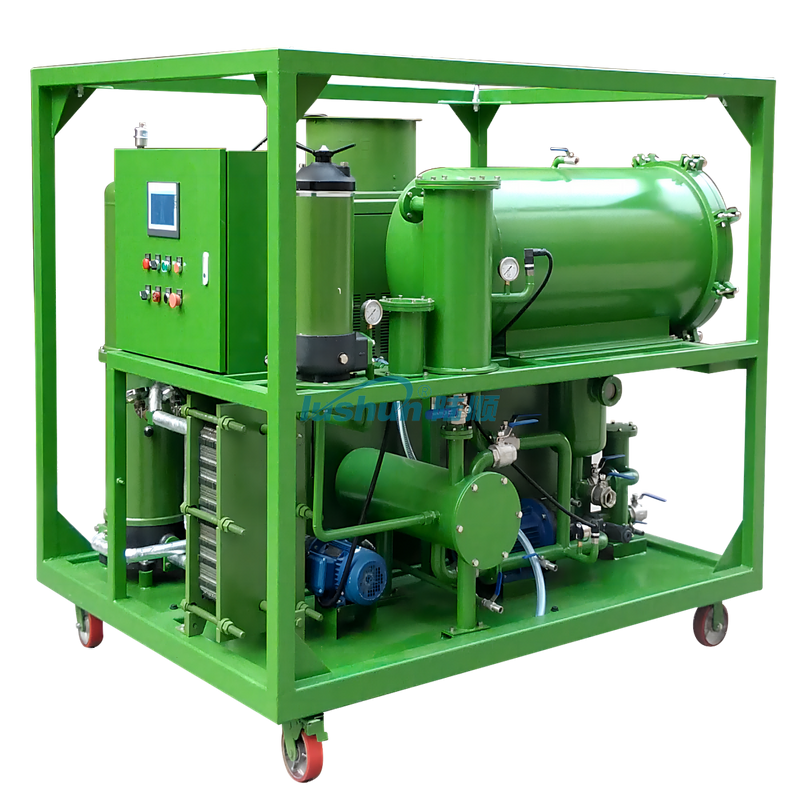

VCP Coalesce and Paint Film Removal Compound Oil Purifier
Application
It is used to purify oil in gas, steam turbines and compressors used in petroleum, chemical, electric power and other fields, to remove dissolved and suspended pollutants, sludge and other harmful substances in the oil, to avoid the paint film problem leading to turbine failure and expensive oil change. This machine not only has the function of removing paint film oil filter, but also has the function of coalescating and separating oil filter. It is a kind of compound oil cleaning equipment which is two in one. It can be run online to filter and purify the oil with high precision and high purity and remove water. Improve the quality of oil products, restore its performance, ensure the normal operation of turbine oil group, hydraulic system, power system and other systems.
Features
1) Increase system reliability and stability
2) Eliminate the shutdown and startup failure caused by the paint film;
3) No longer need to clean the oil tank and system flushing;
4) Improve the jacking oil pressure, more stable bearing temperature;
5) Improve the quality of oil, the life of additives and system components, such as bearings, valves, seals, etc.;
6) Avoiding turbine failures and extending oil life can achieve significant savings.
7) The machine humanized design, low noise, easy operation, long maintenance interval, low energy consumption, save running costs.
8) The filter element is selected for use, and the filter element replacement indicator is provided, and the filter element saturation shutdown device is provided.
9) With leakage, overload shutdown device to protect the motor.
10) With phase sequence, lack of phase protection function, sudden shutdown safety control.
Optional
1) Optional online moisture detector, particle detector
2) Optional intelligent Internet of Things module
3) The whole machine structure can be made into mobile, fixed and so on
Technical Parameters
Item | Name | Unit | LS-VCP-10 |
Main Paramate | Flow Rate | L/H | 600 |
Working Pressure | MPa | ≤0.5 | |
Oil Temperature | ℃ | ≤70 | |
voltage supply | V | 380V/50Hz (Can be customized.) | |
Power | KW | 9 | |
Diameter of inlet/outlet | mm | 40 | |
weight | Kg | 1300 | |
Dimension(L*W*H) | cm | 210*170*190 | |
Oil Index After Purification Treatmen | Water Content | PPm | ≤100（GB/T7600） |
Particle pollution degree（NAS1638） | / | ≤6 Grade | |
MPC value | / | ＜15 |
The dimensions and weight of the equipment are for reference only.
