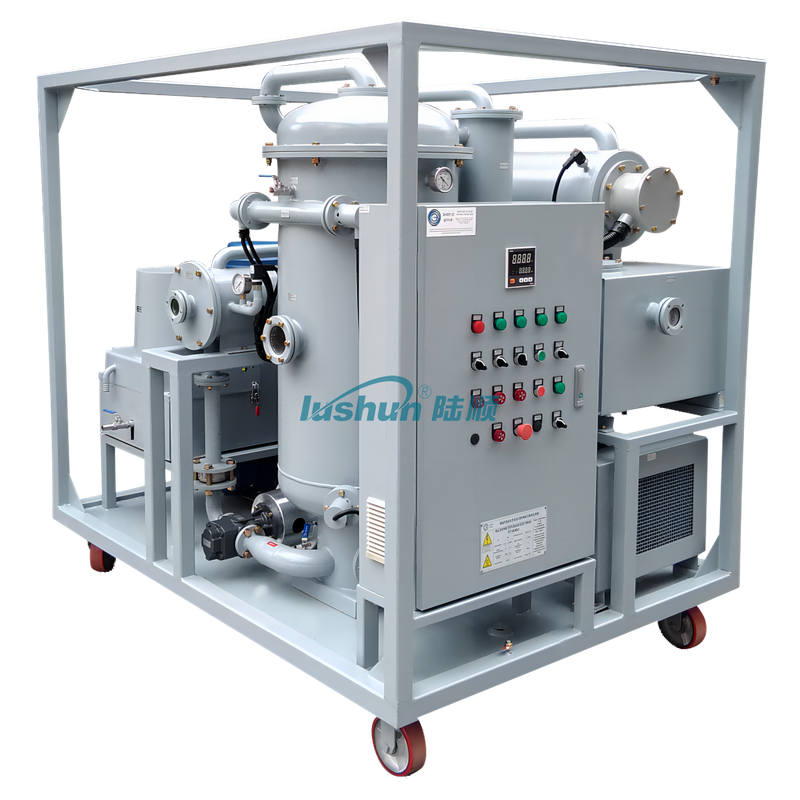

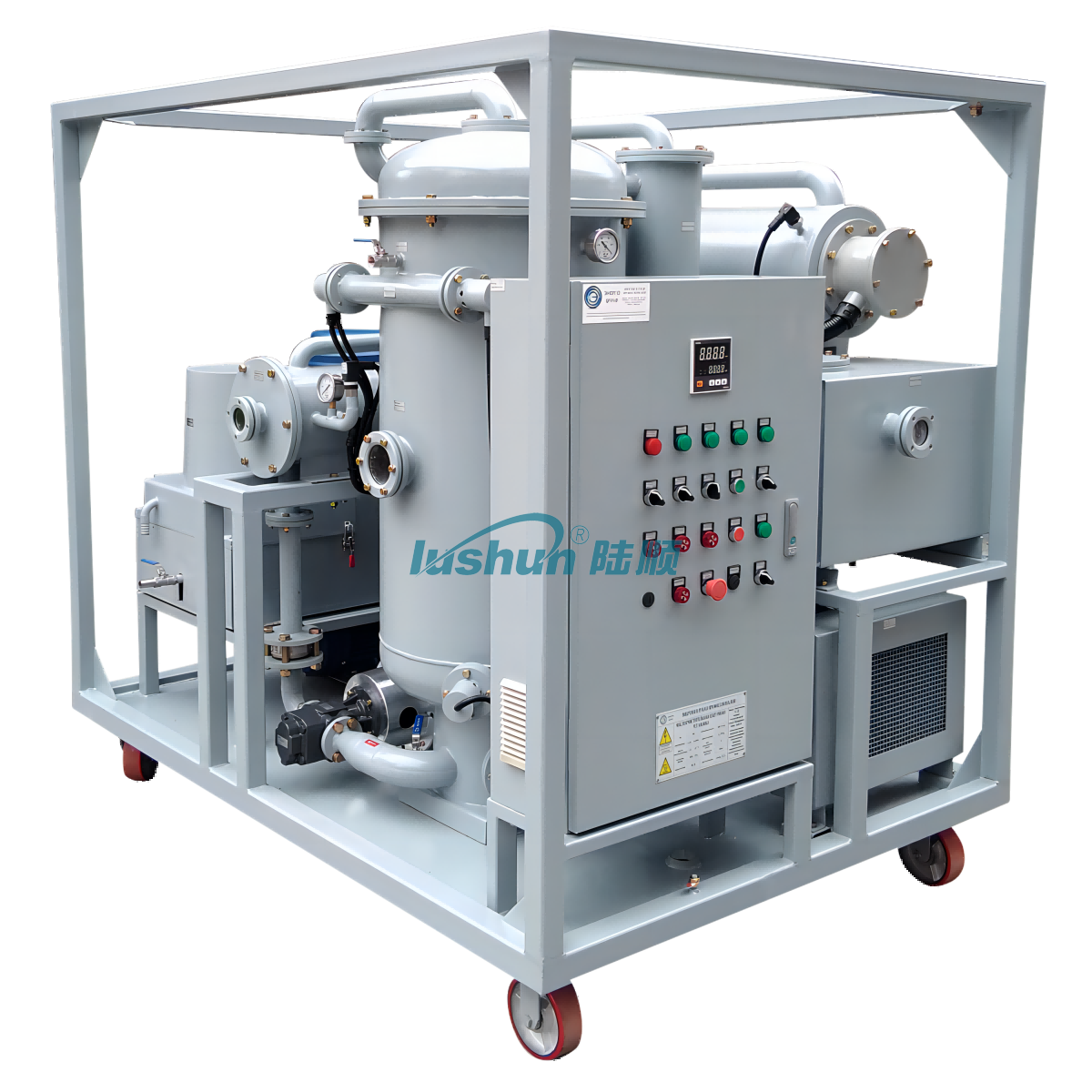

Vacuum & Centrifugal Combined Oil Purifier
Scope of work
Used for purification in the fields of petroleum, chemical industry, metallurgy, and electric power. It can quickly and effectively remove free water, emulsions, impurities, gases and other harmful components in turbine oil and lubricating oil (gear oil, hydraulic oil, mechanical oil, etc.) with high water content. At the same time, it can also operate online with the lubrication system for a long time, and can purify oil with high precision .Improve the quality of oil products and restore their performance. Ensure the normal operation of turbine oil group, hydraulic system, power system, and lubrication system
Features
The combination of centrifugal dewatering and vacuum treatment of micro-water can quickly and effectively remove free water from the oil. The free water content less than 100PPm.
The combination of centrifugal and vacuum has high filtration accuracy and large dirt holding capacity, which reduces the use of consumables the cost of operation.
Online oil purifier can be operated automatic, and the operating status is displayed by the indicator light.
The machine is humanized in design, low noise, easy to operate, long maintenance interval, low energy consumption, and saves operating costs.
The filter element is selected and used, with a filter element replacement indicator and a filter element saturation shutdown device.
It is equipped with leakage and overload shutdown devices to protect the motor.
It is equipped with phase sequence and phase loss protection functions, and sudden shutdown safety control.
It is equipped with a liquid ring vacuum pump.
Optional
-PLC intelligent control with touch screen operation and operation status dynamic display.
Online water content tester, particles tester
Smart IoT module
-The whole structure of the machine can be mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle),
fully enclosed style, conceal eaves type and open style of canvas
Technical parameters
Item | Item | unit | LS-ZPS-50 | LS-ZPS-100 | LS-ZPS-150 | LS-ZPS-200 |
Main paramater | Flow Rate | L/H | 3000 | 6000 | 9000 | 12000 |
Working vacuum | MPa | -0.08~ -0.098 | ||||
Working Pressure | MPa | ≤0.5 | ||||
temprature control | ℃ | 20-80 | ||||
voltage supply | V | 380V/50Hz | ||||
Noise | dB(A) | ≤80 | ||||
Power | KW | 40+10 | 60+10 | 90+13 | 120+13 | |
Diameter of inlet/outlet | mm | 32 | 40 | 50 | 50 | |
weight | Kg | 750 | 1100 | 1250 | 1350 | |
Dimension(L*W*H) | cm | 135*190*180 | 145*210*200 | 155*220*220 | 155*220*220 | |
Oil Index After Purification Treatment | Water Content | PPm | ≤100（GB/T7600） | |||
filtration accuracy | μm | ≤10 | ||||
