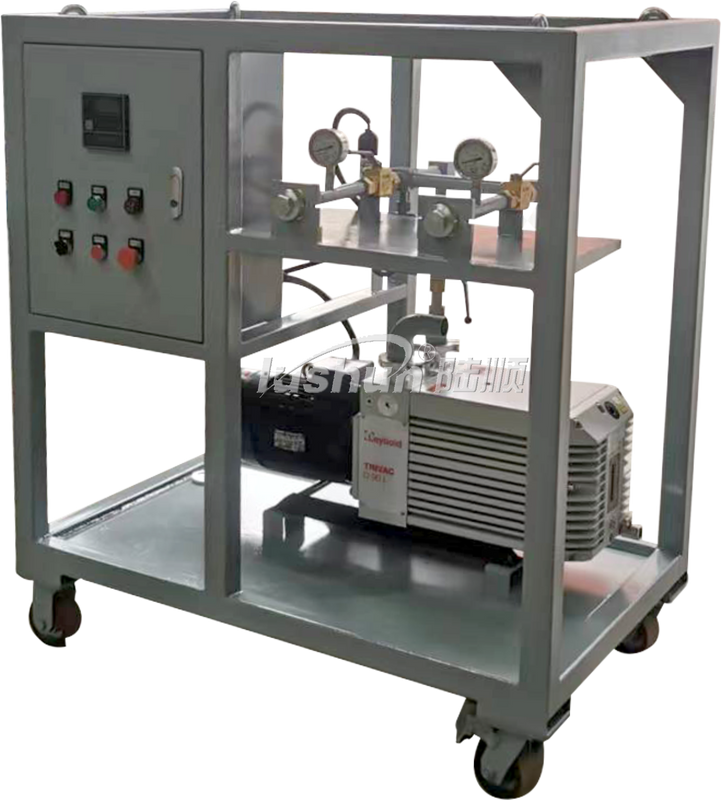

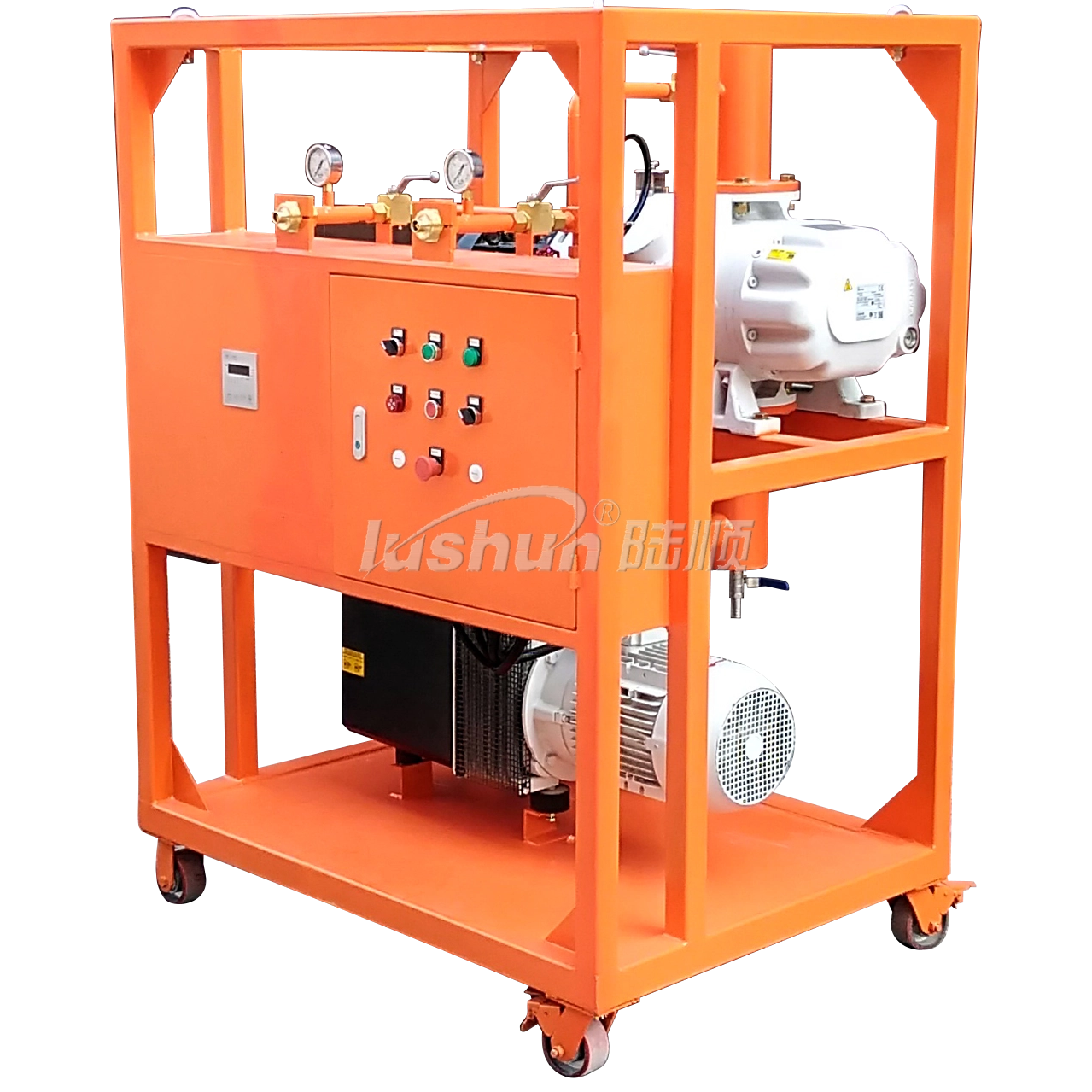

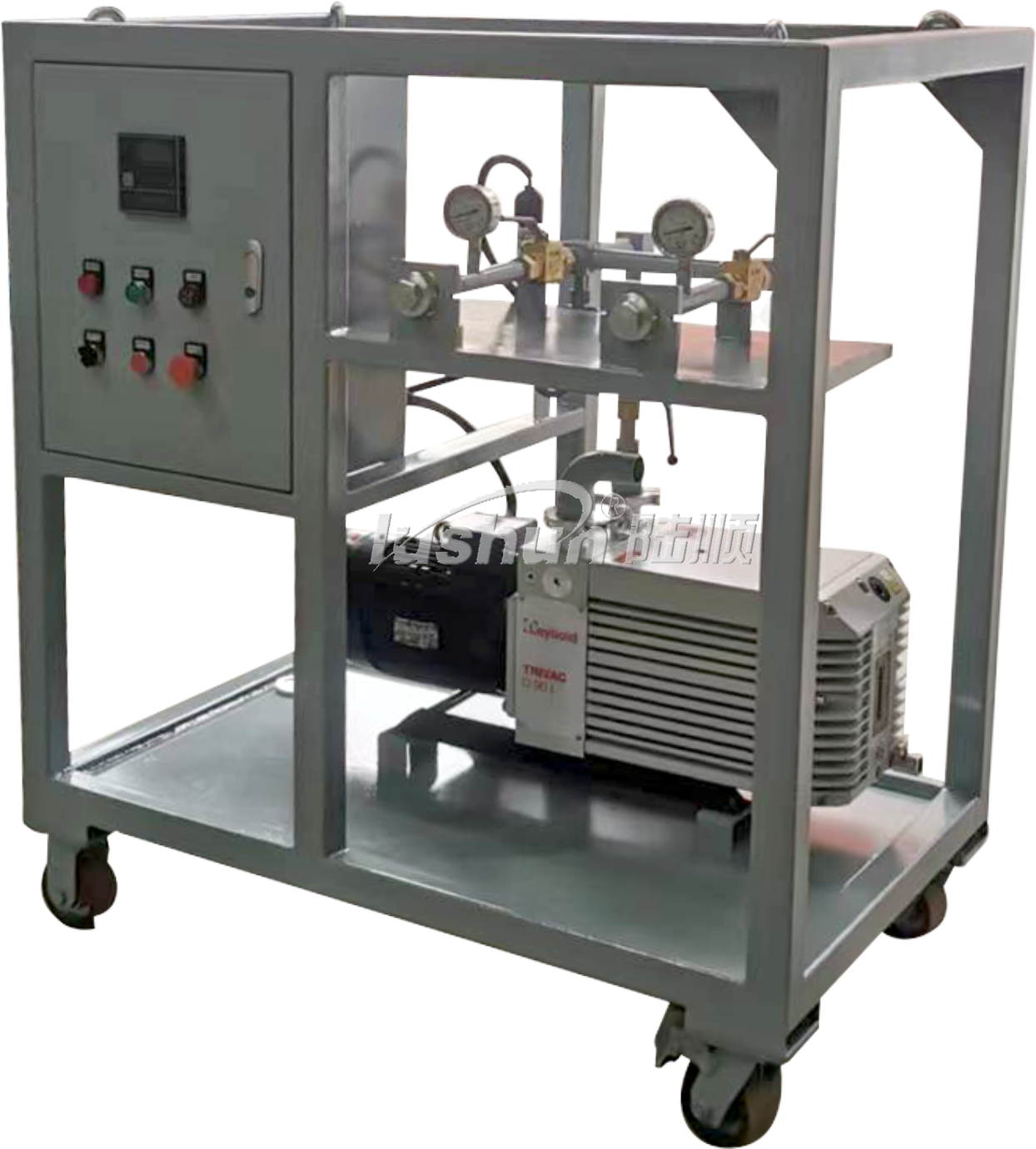

XZJ Series Pint-Sized Vacuumizer
Application
XZJ series pint-sized vacuumizer is applicable to vacuumize electrical equipment like circuit breaker, instrument transformer, GIS (Gas Insulated Switchgear) and refill gas SF6.
Advantages:
●Adopting air-cooled oil-type rotary vane pump, small, light, no oil fume, low working noise, long service life, and with function of anti-return oil protection.

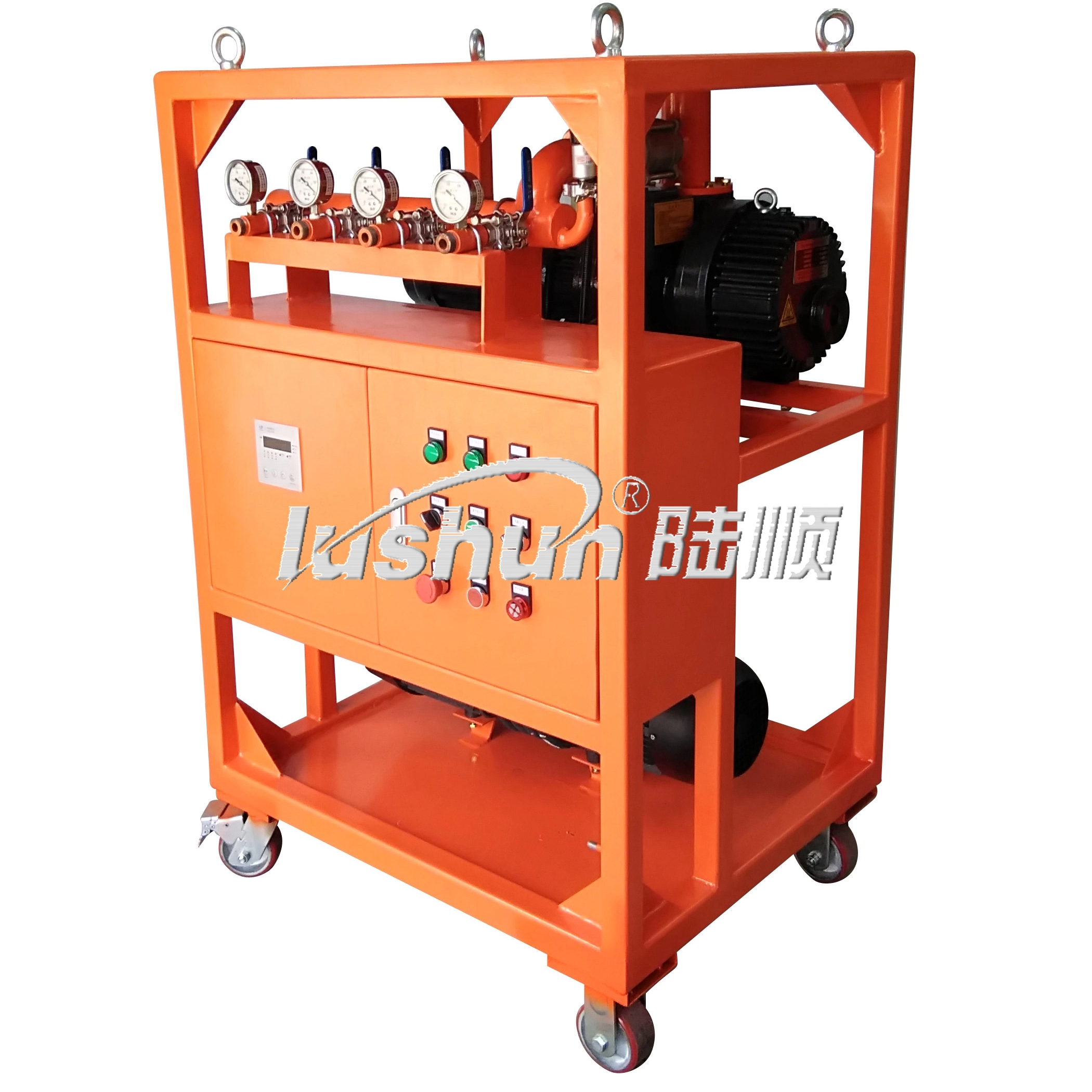

●Vacuumizes electrical equipment, SF6 storage cylinders, and the pipeline system of the vacuumizer, and provides 2-4 routes (or shall be increased as per users’ needs) of vacuumizing connectors.
●Aerates and replenishes SF6 to gas insulated electrical devices.
●Equipped with pressure gauge and digital vacuum meter.
●Equipped with specialized SF6 ball valve for both vacuum and pressure condition, and its sealing elements possesses self compensation performance.
●Equipped with fixed and universal wheels, and possesses shifting function of power phase sequence.
●Available to carry SF6 cylinders (this feature is only for model XZJ-40ID).
●And optional enclosed type shells can be retrofitted as per users’ needs.
Specifications
Index Model | XZJ-40ID | XZJ-40D | XZJ-100D | XZJ-200D | XZJ-250S | XZJ-500S |
Pumping Speed（m³/h） | 40 | 40 | 100 | 200 | 250 | 500 |
Body Ultimate Vacuum（pa） | ≤20 | ≤20 | ≤20 | ≤20 | ≤5 | ≤5 |
Pumping Speed Of Vacuum Pump（m³/h） | 40 | 40 | 100 | 200 | 100 | 100 |
Pumping Speed Of Roots Pump（m³/h） | _ | _ | _ | _ | 250 | 500 |
Power Supply | Three phase, 380V/50Hz (can be customized) | |||||
Total Power（kw） | 1.1 | 1.1 | 2.2 | 4 | 4.5 | 6 |
Working Noise （dB(A)） | ≤75 | |||||
Vacuumizing Connector | 1 route | 2 routes (can be customized) | ||||
Net Weight（kg） | 70 | 75 | 120 | 250 | 280 | 350 |
Overall Dimension(cm) | 650×600×500 | 650×600×500 | 750×650×600 | 900×700×750 | 1000×800×1200 | 1000×900×1400 |
Advised Gas Pumping Volume (m³) | ≤1 | ≤1 | ≤5 | ≤15 | ≤10 | ≤15 |
Inlet/Outlet Diameter | 20 | |||||
■The size and weight shown above is for reference only, its specific data shall be subject to the physical object.
