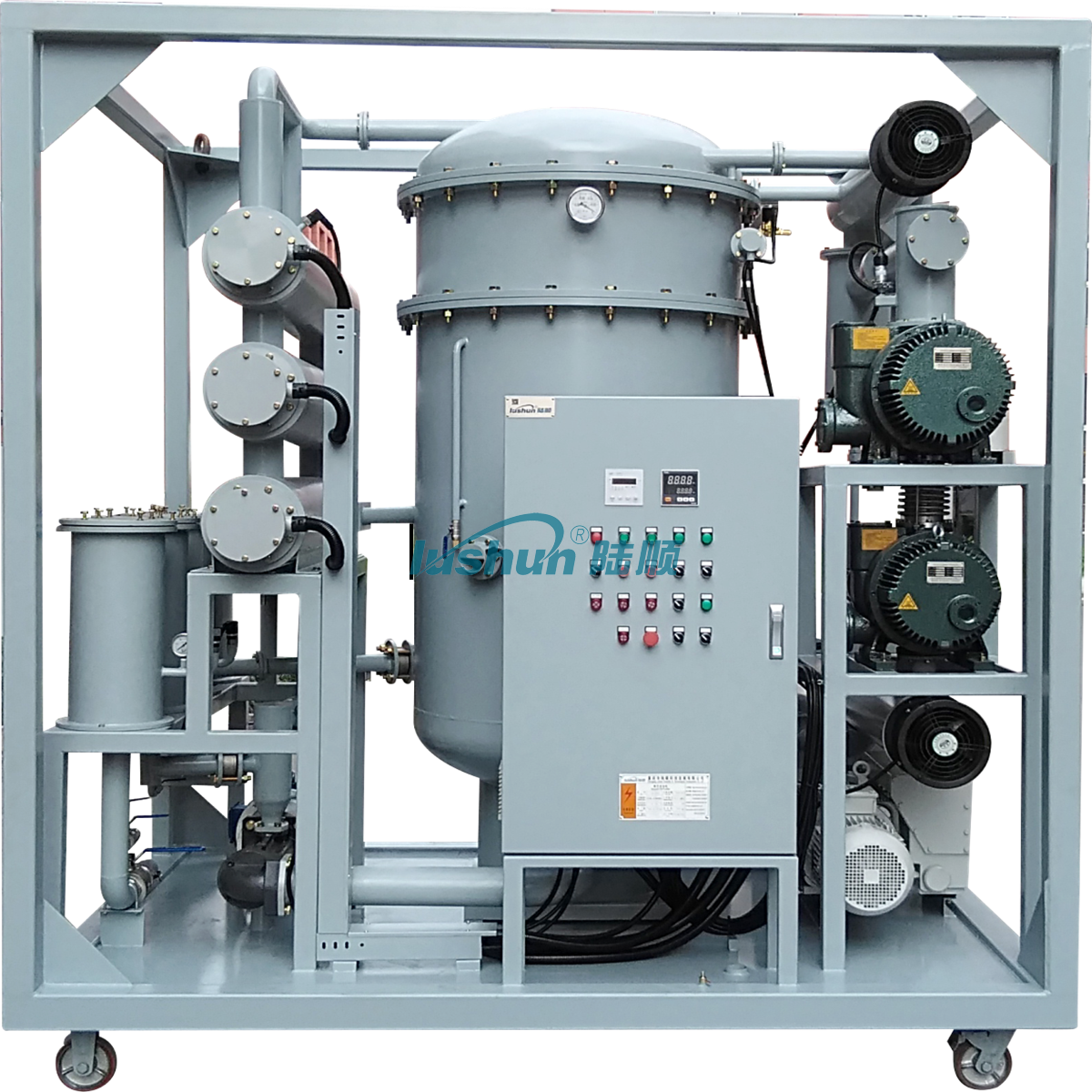

ZJA Series Two-Stage High Efficiency Vacuum Transformer Oil Purifier


Application

ZJA Series Two-Stage High Efficiency Vacuum Transformer Oil Purifier is widely used for industries of power plant, power station, electricity company, transformer factory, metallurgy, petrochemical, mechanical engineering, transportation, railway and transformers manufacturing etc. Especially, it applies to maintenance of transformers above 110KV and deep purification of high grade new transformer oil, imported transformer oil, mutual inductor oil and ultra high voltage transformer oil. It can be also used for oil vacuum filling and vacuum drying as well as transformer vacuum evacuation operation.  Moreover, the machine can be working online without stop of transformers.


Advantages

●Advanced double-stage large capacity dehydration and degassing system which adopts large area three-dimensional flash evaporation technique to remove harmful composition in the oil such as water, air,gas and hydrocarbon etc.

●It can be widely used for transformers on-site installation or maintenance to fill oil into transformers and circuit breakers under vacuum condition or conduct transformers evacuation operation.

●Equipped with automatic temperature control system, liquid-level control system, defoaming control system, pressure protection system and high quality main components to ensure operation of the equipment with high reliability and perfect performance.

●With electrical control inter-lock design. Vacuum system, oil pump system and heating system are interlocked in control.

●Equipped with indication for changing filters and automatic stop device for overloaded filters.

●Equipped with emergency stop for electric leakage and power overload to protect the motor.

●Equipped with vacuuming interface for transformer evacuation operation.

●The outlet and inlet can be interchanged.


Optional Customized Design As Per Client’s Requirements

●PLC intelligent control with touch screen operation and operation status dynamic display.

●Online moisture tester, online particle counter and online flow meter with adding-up function.

●Frequency converter for free adjustment of flow rate

●The whole structure of the machine: mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle), fully enclosed style, conceal eaves type and open style of canvas etc.


Technical Specification

Item

Index

Unit

LS-ZJA-30

LS-ZJA-50

LS-ZJA-100

LS-ZJA-150

LS-ZJA-200

LS-ZJA-300

LS-ZJA-500









Technical Parameter for Purifier

Flow Rate

L/H

1800

3000

6000

9000

12000

18000

30000

Working Vacuum Degree

MPa

-0.08~-0.0999

Limited Vacuum Degree

Pa

7

Working Pressure

MPa

≤0.5

Constant Temperature Control Range

20-70

Power Supply

V

380V/50Hz(Can be customized)

Working Noise

dB(A)

≤70

Total Power

KW

30+3.3

40+3.7

60+7.4

90+13.5

120+14

135+20.5

180+20.5

Inlet/Outlet Diameter

mm

25

32

40

50

50

65

80

Net Weight

Kg

650

800

1000

1300

1800

2100

3500

Overall Dimension (L×W×H)

cm

120×132×180

120×136×185

154×185×216

223×172×240

223×172×24

345×200×250

365×210×250





Oil Index After Treatment

Breakdown Voltage

KV

≥70 (GB/T507), Sphere Gap Test

Water Content

ppm

5(GB/T7600)

Gas Content

%

≤0.3(GB/T423)

Filtration Precision

μm

≤1

Ethyne

%

0

■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.

ZJA




photobank

What is the purpose of using oil in a transformer?
Transformer oil is a mineral based oil that is commonly used in transformers for its chemical properties and dielectric strength. This oil in your transformer acts as an insulator and a cooling agent. Over time, the oil will degrade resulting in the potential for faults and costly repairs.


What is the Working of transformer oil purification machines

This process of filtration of transformer oil is used to remove the gas, particles, sludge, and moisture from the oil. This process is used to improve the acidity level of the oil also.A High Vacuum Process is used for dehydrating and degasification of electrical insulating fluids (transformer oil) to increase and maintain their dielectric strength. The processing includes the removal of free and soluble water, free and dissolved air and gases, and particulate matter.


How does a transformer oil filter work?

The third step in the oil filtration machine is dehydration and degasification of the transformer oil. In degassing and dehydration chamber, dissolved gases and moisture from the transformer oil is removed. ... Efficiently spread Raschig rings are placed in the degassing and dehydration chamber.

9284f12816492f17630fd5f687168f7


ZJA Series Two-Stage High Efficiency Vacuum Transformer Oil PurifierZJA.pdf
