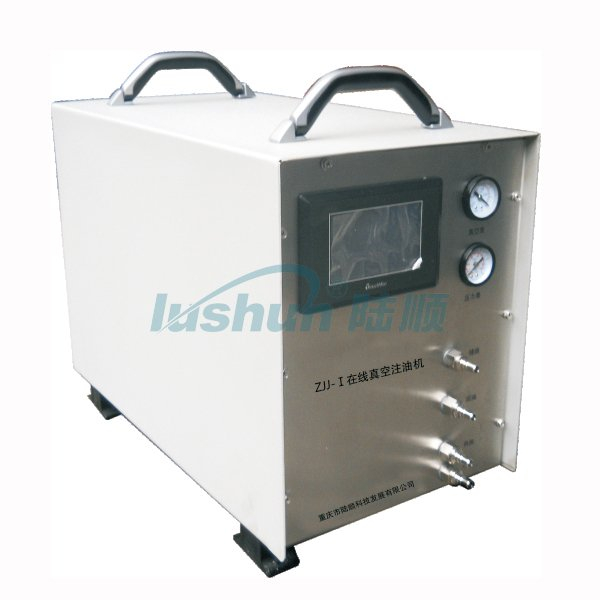

ZJJ-I Series Online Vacuum Oil Filling Machine
Application

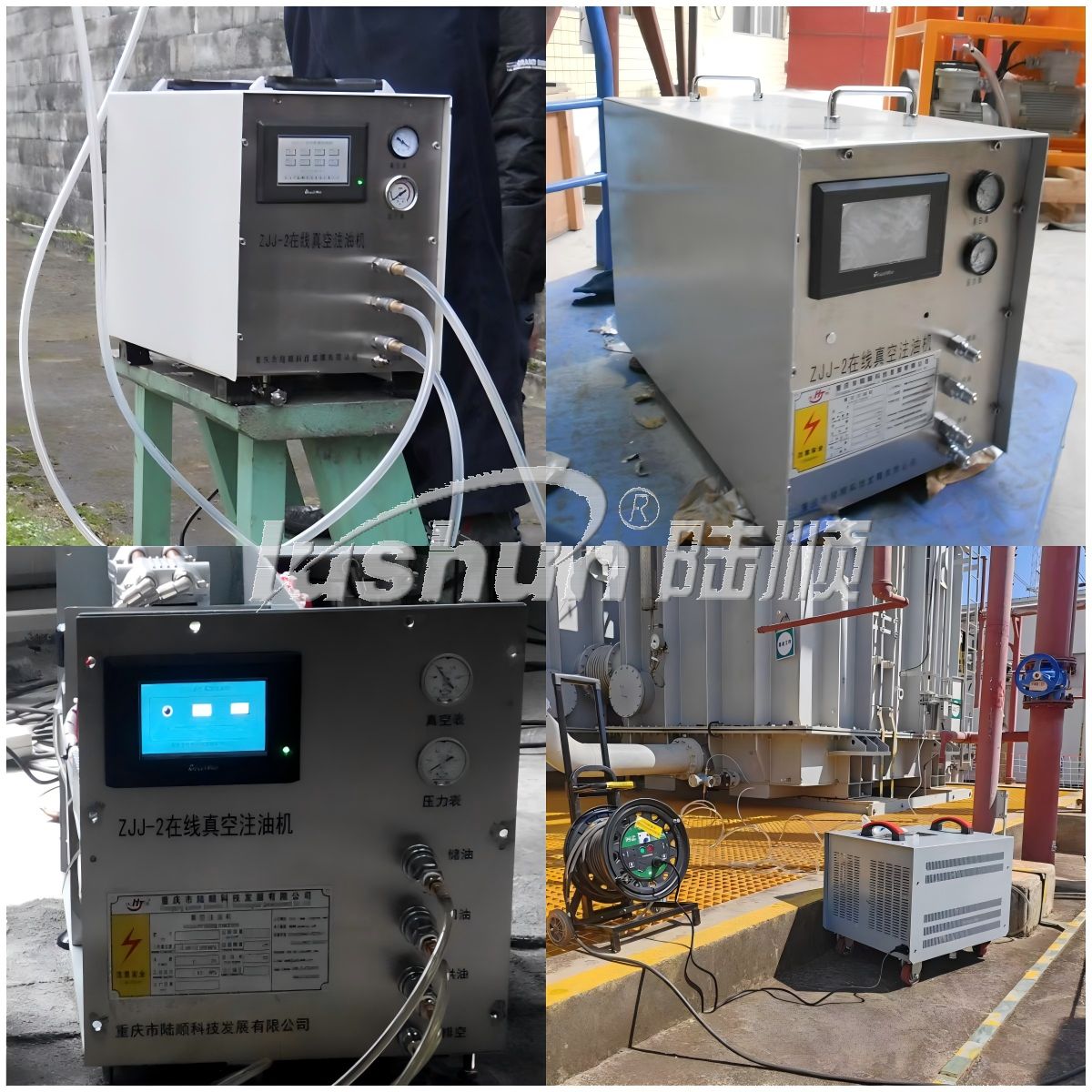

ZJJ-I Series Online Vacuum Oil Filling Machine(or named bushing oil recharge machine, vacuum oil recharge machine and transformer oil filling machine) adopts advanced control technology, high quality filters and high efficiency vacuum pump. It has functions of automatic vacuum evacuation and on-load oil filling which can effectively control water content in insulating oil and is widely used for oil filling of electric current transformers or potential transformers (abbreviation as CT, PT) in electrical system for oil level adjustment after periodically taking oil sample and oil testing. It solves the problems of traditional method of artificial oil filling which may cause air absorption of CT/PT coil or illusive oil level caused by residual air. By adopting ZJJ-I machine, there will be no air bubbles formed and no need to stop PT/CT during the oil filling process. The machine is with small size, reliable performance and convenient operation which can greatly reduces the labor intensity and difficulties of work and ensure the safety of the equipment operation. It is widely applied to all types of power substations and other working conditions for oil filling and vacuum evacuation. The ZJJ online vacuum oil filling machine is mainly composed of special connector, oil pump, oil tank, primary filter, electric heater, fine filter, liquid level sensor, temperature sensor, vacuum pump, vacuum gauge, valve group and electric control system.
Advantages
●Online oil filling and oil level adjustment
●Automatically keep vacuum degree
●High efficiency to remove particles and impurities
●Automatic constant temperature heating and dehydration
●Over-pressure protection system
●Manually control step by step or automatically control.
Technical Specification:
Item | Unit | Main Technical Index |
Oil Filling Capacity | L/min | 0.5-2.0 (Adjustable) |
Working Vacuum Degree | MPa | ≤-0.075 |
Working Pressure | MPa | 0-0.35 |
Filtration Precision | μm | ≤1 (β1≥1000) |
Total Power | Kw | 0.8 |
Input Voltage | V | AC220 |
Working Noise | dB(A) | 60 |
Weight | Kg | 40 |
Overall Dimension | mm | 600×350×375 |
■ Above mentioned weight and size are for reference only, the specific data shall be as per the standard of real goods.
ZJJ-I Series Online Vacuum Oil Filling Machine
Application
ZJJ-I Series Online Vacuum Oil Filling Machine(or named bushing oil recharge machine, vacuum oil recharge machine and transformer oil filling machine) adopts advanced control technology, high quality filters and high efficiency vacuum pump. It has functions of automatic vacuum evacuation and on-load oil filling which can effectively control water content in insulating oil and is widely used for oil filling of electric current transformers or potential transformers (abbreviation as CT, PT) in electrical system for oil level adjustment after periodically taking oil sample and oil testing. It solves the problems of traditional method of artificial oil filling which may cause air absorption of CT/PT coil or illusive oil level caused by residual air. By adopting ZJJ-I machine, there will be no air bubbles formed and no need to stop PT/CT during the oil filling process. The machine is with small size, reliable performance and convenient operation which can greatly reduces the labor intensity and difficulties of work and ensure the safety of the equipment operation. It is widely applied to all types of power substations and other working conditions for oil filling and vacuum evacuation. The ZJJ online vacuum oil filling machine is mainly composed of special connector, oil pump, oil tank, primary filter, electric heater, fine filter, liquid level sensor, temperature sensor, vacuum pump, vacuum gauge, valve group and electric control system.
Advantages
●Online oil filling and oil level adjustment
●Automatically keep vacuum degree
●High efficiency to remove particles and impurities
●Automatic constant temperature heating and dehydration
●Over-pressure protection system
●Manually control step by step or automatically control.
Technical Specification:
Item | Unit | Main Technical Index |
Oil Filling Capacity | L/min | 0.5-2.0 (Adjustable) |
Working Vacuum Degree | MPa | ≤-0.075 |
Working Pressure | MPa | 0-0.35 |
Filtration Precision | μm | ≤1 (β1≥1000) |
Total Power | Kw | 0.8 |
Input Voltage | V | AC220 |
Working Noise | dB(A) | 60 |
Weight | Kg | 40 |
Overall Dimension | mm | 600×350×375 |
■ Above mentioned weight and size are for reference only, the specific data shall be as per the standard of real goods.
Why do we fill oil in transformer?
Transformer oil is used to insulate high-voltage electrical infrastructure such as transformers, capacitors, switches and circuit breakers. Transformer oils are designed to operate effectively at very high temperatures, cooling, insulating, and stopping corona discharges and arcing.
Where is oil-filled in transformer?
Oil-filled or oil-immersed transformers are voltage conversion devices that use oil to keep the transformer cool. This type of transformer structure is mounted in a welded steel oil tank filled with oil.
How much oil is filled in a transformer?
Power transformers, reactors, and regulators may contain anywhere from a few hundred to 100,000 l or more of oil (500 to approximately 30,000 gal), with 7500–38,000 l (approximately 2000–10,000 gal) being typical.
Why do we fill oil in transformer?
Transformer oil is used to insulate high-voltage electrical infrastructure such as transformers, capacitors, switches and circuit breakers. Transformer oils are designed to operate effectively at very high temperatures, cooling, insulating, and stopping corona discharges and arcing.
Where is oil-filled in transformer?
Oil-filled or oil-immersed transformers are voltage conversion devices that use oil to keep the transformer cool. This type of transformer structure is mounted in a welded steel oil tank filled with oil.
How much oil is filled in a transformer?
Power transformers, reactors, and regulators may contain anywhere from a few hundred to 100,000 l or more of oil (500 to approximately 30,000 gal), with 7500–38,000 l (approximately 2000–10,000 gal) being typical.
