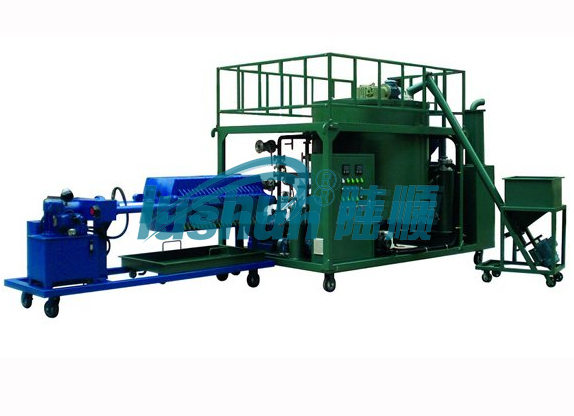

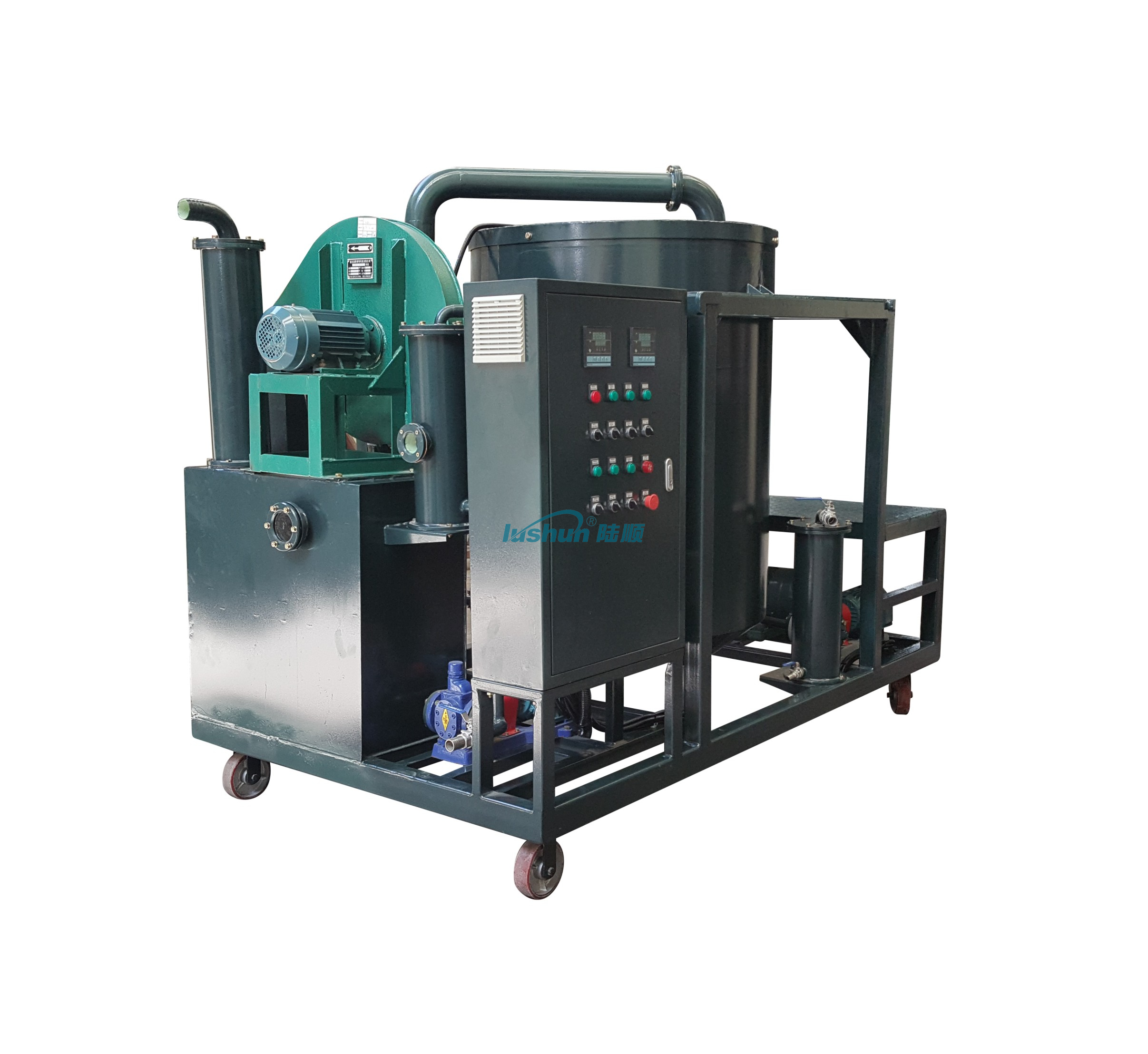

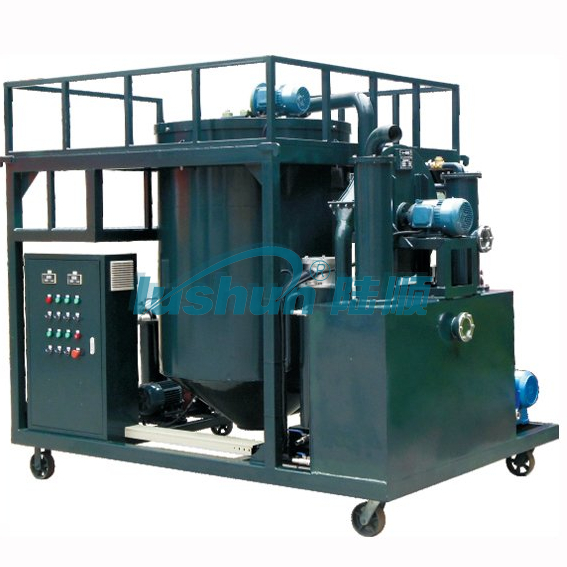

ZLE Series Waste Oil Decolorization And Purified Regeneration Multifunctional Machine
Application
ZLE Series,Used Oil Multifunctional Decolorization And Regeneration Machines are particularly used for purifying and regenerating lubricating oil such as air compressor oil, vacuum pump oil, hydraulic oil, compressor oil, etc. It can effectively remove the water contents, gas, impurities, colloids, pitches and other harmful ingredients out of the oil. After the treatment by this machine, both the oil color and clarity are recovered.
Advantages
● Adopting both physical and chemical ways to achieve the goal of regeneration;
● Equipped with a gas purification device to reduce the harmful gases emissions;
● With advanced automatic constant temperature control system, automatic liquid level control system, automatic pressure protection system and other devices of best quality to ensure its high-efficiency working performance;
● Extractive filtration system adopts a filter press of big filtering area and easy to operate and maintain;
● Adopting electric heating method to ensure smooth heating and stable oil temperature;
● Equipped with gas pumping system to purify the oil with high purity while removing micro-water content and residual gases;
● With functions of phase sequence, open phase and earth leakage protection.
Technical Specifications
Item | Unit | LS-ZLE-I | LS-ZLE-II | LS-ZLE-III | LS-ZLE-IV |
Treatment Capacity | Kg/D | 1000-2000 | 2000-4000 | 3000-6000 | 5000-10000 |
Recovery Rate | % | 80-95(according to waste oil condition.) | |||
Working Pressure | MPa | ≤0.4-0.6 | |||
Working Noise | dB(A) | ≤75 | |||
Power Supply | V | 380V/50Hz（can be customized.） | |||
Total Power | Kw | 24+10 | 40+13 | 80+18 | 80+26 |
Net Weight | Kg | 2000 | 2500 | 3500 | 5000 |
Overall Dimension (L×W×H) | cm | 255×140×335 | 305×170×355 | 330×190×355 | 350×215×355 |
Remark | Its treatment capacity is figured up by 8~20working hours per day. If the impurity content of oil products is high, the processing capacity has decreased | ||||
■ Above mentioned weight and size are for reference only, the specific data shall be as per the standard of real goods.
