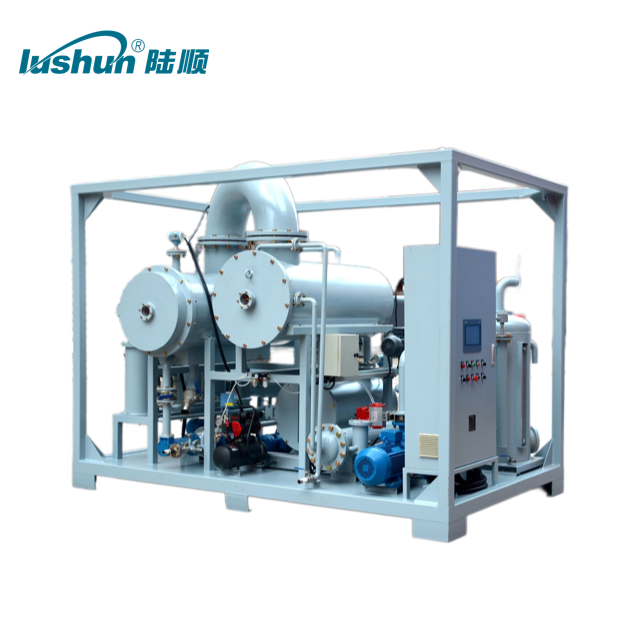

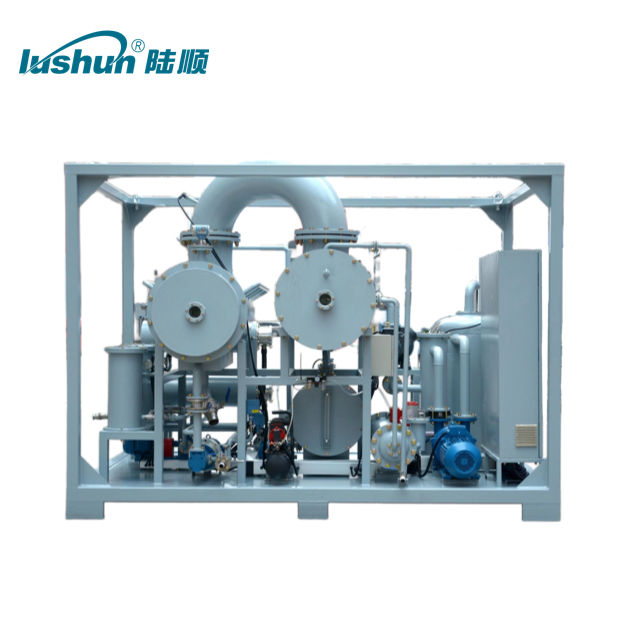

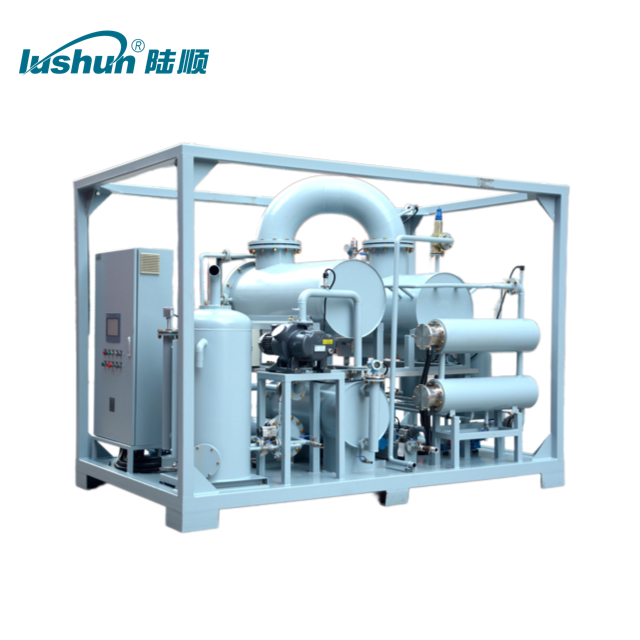

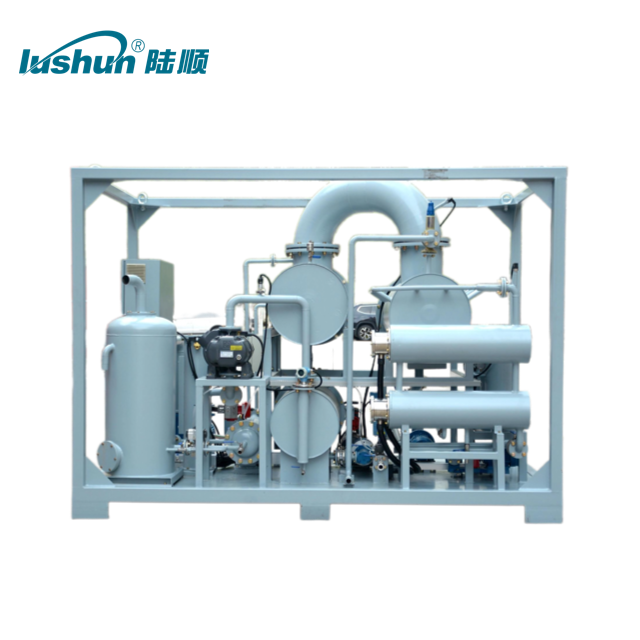

ZZS Series Vacuum Distillation Equipment

ZZS Series Vacuum Distillation Equipment

Usage:

This equipment is used in the aluminum foil (copper foil) rolling process. The rolling oil—used as a lubricant and cooling medium throughout the process—is divided into two main categories: cold-rolling oil and hot-rolling oil. Its composition typically includes base oils, additives, and auxiliary agents. During use, impurities, moisture, grease, and waste oil are inevitably introduced as contaminants. By employing a vacuum distillation process, the rolling oil can be recycled and reused, thereby reducing production costs and enhancing the economic benefits of the enterprise.

It can also be used to separate any two or more hydrocarbons whose boiling-point ranges differ sufficiently from each other using this system.

Features:

● Fully automatic operation;

● Touchscreen interface operation;

● Dual-stage high-vacuum system, supporting vacuum distillation;

● Rated distillation rate: greater than 80 liters per hour;

● Dual-entry filter with automatic switching function;

● Equipped with a stainless steel shell-and-tube condenser;

● Remove free water, dissolved water, particulate matter, degas, and eliminate other oils mixed into the rolling oil.

Optional configuration:

● A settling tank is selected to separate free water and impurities, thereby reducing the amount of water entering the vacuum distillation equipment and increasing the distillation rate. ● If cooling water is unavailable at the job site, a closed-loop cooling system can be optionally equipped.

Technical parameters:

● Operating noise: dB(A) ≤ 75 ● Overall dimensions (mm): 2050mm × 3400mm × 2550mm

● Processing capacity: ≥1000 liters/day

●Working vacuum level (MPa): -0.08 to -0.098
